Membrane switch pads are the contact areas beneath the keys of a membrane switch. A complete pad location combines stationary circuit contacts with a movable conductive element that closes the circuit when the user presses the button. Depending on the required feel and construction, that element may be a printed shorting pad, a formed polydome, or a stainless-steel metal dome.
The pad cannot be designed in isolation. Contact geometry, spacer opening, dome position, vent path, adhesive and actuator alignment form one electromechanical system. This guide explains how those parts work together and what must be specified before a membrane switch keypad enters production.
What Are Membrane Switch Pads?
A membrane switch pad is the functional switching area assigned to one key. The term is sometimes used for the stationary contact pattern on the lower circuit layer and sometimes for the movable conductive feature above it. On an engineering drawing, those two elements should be named separately so that the manufacturing team knows which contact system is required.
The stationary pattern normally has electrically separate conductors. The movable element bridges them only during actuation. In a printed membrane circuit, this may be a conductive area on the upper circuit layer. In a tactile construction, a polydome or metal dome supplies the moving contact and may also provide the snap feel.
How Do Membrane Switch Pads Close the Circuit?
In the released state, the spacer and dome geometry keep the moving contact away from the stationary pads. Pressing the membrane switch button transfers force through the graphic overlay or a separate actuator. The moving contact then touches both sides of the circuit pattern, creating a temporary conductive path that the controller reads as a key event.
When the force is removed, the layers separate or the dome returns to its original height. Reliable switching therefore depends on more than conductivity. The design must control the open gap, actuation travel, contact overlap, return behavior and the way air moves out of the key cavity.

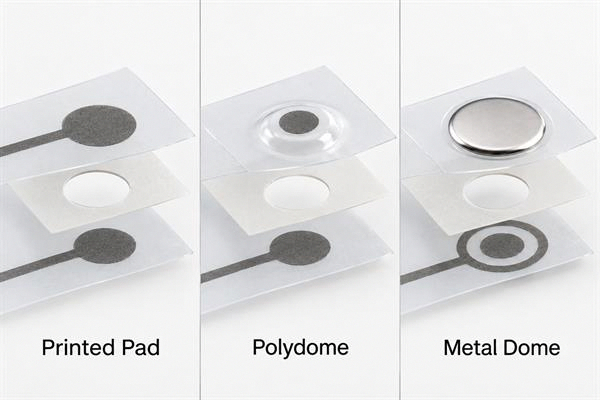

Which Pad Types Are Used in Membrane Switches?
| Pad format | Moving contact | User feedback | Main design responsibility |
|---|---|---|---|
| Printed membrane pad | Printed conductive area on a flexible upper circuit | Usually non-tactile unless another feature is added | Control spacer thickness, contact print and circuit registration |
| Polydome pad | Formed polymer dome with a conductive contact area | Light formed tactile response | Match dome forming, contact position and operating environment |
| Metal dome pad | Stainless-steel snap dome over the stationary contacts | Distinct snap and return response | Match dome footprint, force, travel, retention and venting |
A printed pad is useful when a thin, quiet interface is more important than a crisp click. A polydome dome array combines a formed polymer key structure with registered contacts. A metal dome produces a sharper tactile event and supports tighter control of trip force, return force and click ratio. For non-standard force, diameter or geometry, we can review custom metal domes against the actual circuit and actuator stack.
Where Do Pads Sit in the Membrane Switch Stack-Up?

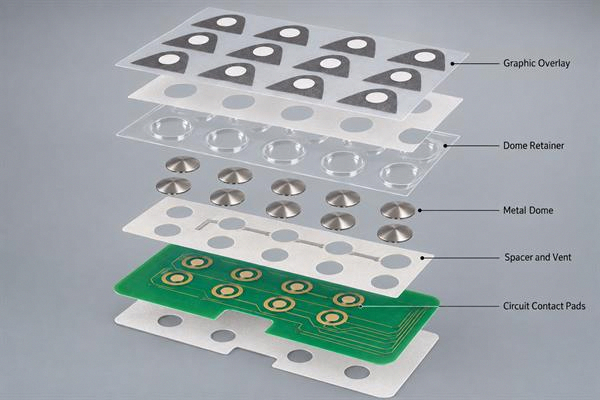

From the user side toward the mounting surface, a typical tactile membrane switch panel may include a graphic overlay, adhesive, actuator or embossed key area, dome retainer, metal dome, spacer, circuit layer and rear adhesive or stiffener. The exact order changes with the construction, but the dome and the stationary contact pads must remain registered through lamination and use.
A metal dome array, including a single-key dome array, retains each dome on a carrier before final assembly. This reduces loose-part handling and provides a defined relationship between the dome, carrier window and contact center. The membrane switch parts still need common datums so that the circuit artwork, spacer and overlay do not accumulate offset in different directions.
How Should Contact Geometry and Spacer Openings Be Specified?
The stationary pattern must let the selected moving contact bridge two electrically separate regions without resting on an unstable edge. A common metal-dome arrangement uses a central contact and an outer contact area, but the final geometry must match the dome shape, support points and circuit technology. Trace exits, conductor spacing and any protective coating also need clearance from the dome-bearing area.
The spacer opening should allow full dome movement without pinching the edge or letting adhesive enter the contact zone. Its position must be toleranced to the same datum as the pad pattern. Instead of copying a nominal opening from another keypad, specify the actual dome outline, circuit artwork and permitted registration error as a coordinated set.
Why Do Venting, Adhesive, and Alignment Matter?
Air displaced during a press needs a controlled path. A sealed cavity can change the force curve, slow return or make adjacent keys influence one another. A vent route should connect the intended cavities without crossing contamination-sensitive areas or weakening environmental sealing outside the designed path.
Adhesive defines the layer spacing and keeps the dome array registered. It should surround the switching area without squeezing into it after lamination, temperature exposure or repeated operation. We support PET or Mylar carriers with pressure-sensitive adhesive options including King Label, 3M 467 and 3M 468; the selection must still be checked against the substrate, temperature, sealing and assembly requirements of the specific membrane switch keypad.
How Do Pad Materials and Surface Finishes Affect Contact?
Membrane circuit contacts may use printed conductive inks on PET, copper features on an FPC, or plated pads on a PCB. These are different manufacturing systems, so their contact resistance, wear behavior, surface profile and environmental sensitivity should not be treated as interchangeable. Carbon overprints may protect selected printed contact areas, while exposed copper-based contacts require a finish appropriate to the mating dome and storage conditions.
The material decision should begin with the current level, contact-resistance target, expected cycles, temperature and humidity exposure, tail construction and assembly process. A membrane switch material should not be approved only because its bulk conductivity looks suitable; the finished contact interface and its process controls determine switching consistency.
How Should Metal Dome Force Match the Button and Actuator?
The force felt at the overlay is not automatically the dome’s catalog force. Overlay embossing, actuator diameter and height, rubber-key stiffness, off-center loading and stack compression all change the delivered response. The actuator should load the intended dome region without scraping the carrier or concentrating force near one edge.
For a rubber-key construction, a rubber plunger dome array can coordinate the actuator and dome positions in one registered assembly. During review, we can adjust Trip Force, Return Force, Click Ratio, Travel and Height according to the required key feel and mechanical stack, subject to engineering evaluation.

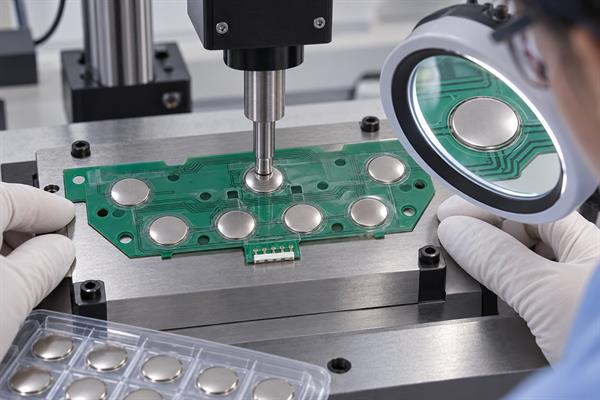

What Should Be Tested Before Production?
A drawing review should be followed by samples that represent the production stack, not only a loose dome pressed on a bare contact. The validation plan should cover:
- open and closed circuit behavior for every membrane switch pad;
- contact resistance under the intended actuation method;
- force, travel, return and tactile consistency across key positions;
- registration of the overlay, actuator, spacer, dome and circuit contacts;
- vent recovery, adhesive intrusion and neighboring-key interaction;
- life-cycle and environmental checks appropriate to the application.
Electrical continuity alone cannot confirm acceptable key feel, and a force measurement alone cannot confirm a stable contact. Test the combined assembly so that mechanical and electrical results refer to the same key construction.
How Can We Support Your Membrane Switch Pad Design?
EBest Circuit(Best Technology) has manufactured metal domes and dome arrays since 2006. For a custom membrane switch or a project involving membrane switch pads, we review the selected dome together with the contact artwork, actuator, spacer, vent and carrier rather than treating it as an isolated component.
When a membrane switch manufacturer or product designer needs registered tactile contacts, our custom dome array service can work from AutoCAD, PDF, Gerber, PCB, CAM or other PCB files, as well as a clear sketch for early review. We can also discuss circle, four-leg, triangle, oblong or custom dome options and arrange trip-force, rebound and life-cycle testing for the approved construction. Send the key layout, circuit file, stack-up, target feel, operating environment and expected life to our engineering team at sales@metal-domes.com.
