A flexible membrane in a metal dome switch is the thin carrier-and-adhesive layer that retains each snap dome, aligns it with the circuit contacts and transfers a user’s press without blocking the dome’s return. It is not just a cover. Its pocket geometry, adhesive pattern, vent path and registration determine whether the key feels crisp and closes the intended circuit consistently.
This article focuses on that functional membrane layer. It explains how the layer holds and actuates metal domes, how it interfaces with PET circuits, FPCs and PCBs, and what must be specified before a flexible membrane switch enters production.
What Is a Flexible Membrane in a Metal Dome Switch?

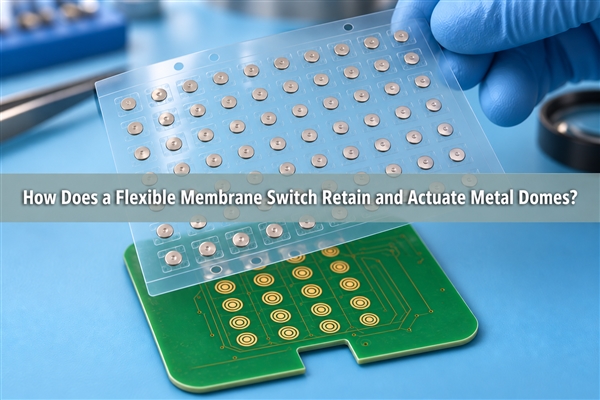

In this application, the membrane is normally a flexible polyester carrier laminated with patterned pressure-sensitive adhesive. A formed pocket or adhesive-free window captures the metal dome while leaving the center free to move. The lower face of the dome rests above a stationary contact pattern on a printed membrane circuit, FPC or PCB.
The term can be ambiguous outside electronics: search results also use it for waterproofing sheets, biology and mechanical test structures. Here, flexible membrane means the flexible switching layer used to retain and operate tactile contacts. It does not mean the complete graphic overlay, enclosure or waterproofing sheet.
What Jobs Does the Flexible Membrane Perform?
The membrane performs several linked mechanical and assembly functions:
- retains each metal dome during shipping, lamination and final assembly;
- registers the dome center to the stationary circuit contacts;
- keeps adhesive outside the moving and conductive contact zone;
- transfers force from the overlay, keycap or plunger to the dome;
- provides a controlled air path so the dome can snap and recover;
- protects the switching area from handling contamination and loose-part movement.
These jobs must be designed together. A film can be flexible enough to bend yet still produce a poor key if its pocket is off-center, its adhesive creeps into the dome edge or trapped air changes the force curve.
Which Films and Adhesives Form the Dome Carrier?
Polyester PET, also called Mylar in many dome-array specifications, is commonly used because it can be die-cut or laser-cut, laminated and registered at low thickness. The carrier thickness, surface treatment and dimensional stability should match the key pitch, dome height, operating temperature and assembly process.
The adhesive must bond to the selected circuit or spacer without flowing into the dome cavity. EBest Circuit(Best Technology) supports carrier constructions using King Label, 3M 467 and 3M 468 pressure-sensitive adhesives; the final choice remains subject to the actual substrate, temperature, sealing and life requirements. Acrylic or silicone PSA may also be considered in a rubber glue metal dome array when the keypad or assembly interface requires that construction.
| Design input | Why it affects the membrane | What to define |
|---|---|---|
| Dome height and travel | The carrier must retain the rim without restricting snap-through | Pocket opening, film thickness and adhesive keep-out |
| Surface and environment | Bond strength changes with substrate, heat, humidity and contamination | Adhesive family, cleaning condition and sealing boundary |
| Key pitch and outline | Closely spaced cavities leave less room for vents and datum features | Minimum web, vent routing and array datum |
| Assembly method | Manual placement and registered lamination impose different handling needs | Release liner, tabs, fiducials and placement sequence |
How Does the Membrane Retain and Register Metal Domes?
A dome should be captured around its perimeter while its active center and contact surface remain free. In a single-layer metal dome array, patterned adhesive on the PET carrier holds the dome and locates the sheet on the circuit. A double-layer metal dome array adds a spacer beneath the dome, which can provide a defined cavity and a more deliberate air path.

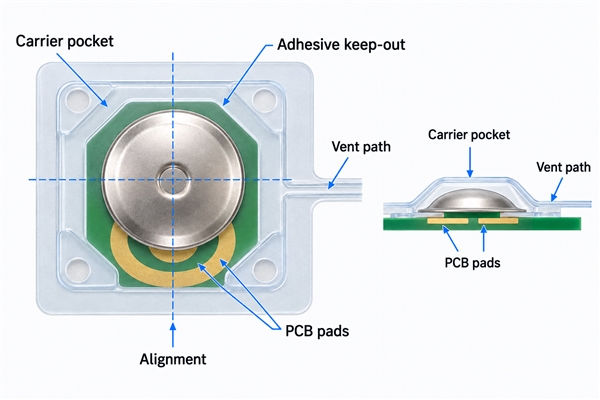

Registration starts with common datums. The circuit contacts, spacer openings, dome centers, actuator centers and outer array profile should not be dimensioned from unrelated edges. The drawing should state positional tolerances and identify the assembly datum. A dome that is only slightly off-center may still switch electrically, but its edge loading and tactile response can differ from neighboring keys.
How Does Actuation Force Travel Through the Membrane?

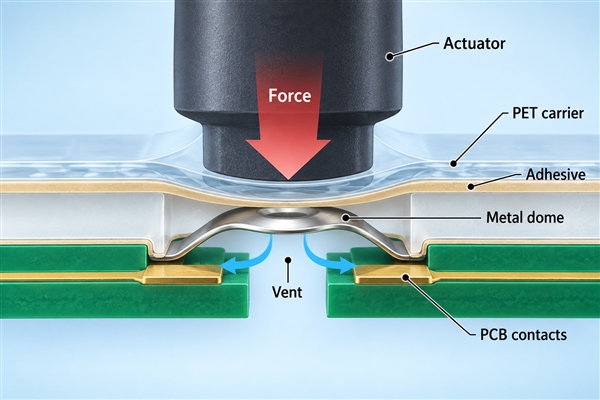

Force passes from the user’s finger through an overlay, molded key, rubber key or plunger and then through the flexible carrier to the dome crown. The actuator must contact the intended central region. A tip that is too small can concentrate stress; a tip that is too large can load the dome rim or surrounding spacer. Off-center loading can increase the apparent force and shorten useful life.
The force measured on a loose dome is therefore not automatically the force felt on a completed flexible membrane keypad. Carrier tension, overlay embossing, actuator geometry, rubber stiffness and stack compression all contribute. A plunger dome array can coordinate actuator height and dome position when the enclosure cannot press the dome directly.
How Should Spacer Openings and Vent Paths Be Designed?
When the dome moves, the air inside its cavity must move as well. A sealed pocket can add pneumatic resistance, delay return or make one key affect another through a shared cavity. A vent route should connect the switching pocket to a controlled exit or manifold without creating an unintended path for contaminants.
The spacer opening must clear the dome edge throughout travel. Adhesive should not intrude after lamination, temperature exposure or repeated actuation. Vent width and route depend on cavity volume, sealing targets, key spacing and the expected press rate; they should be validated in the actual stack rather than copied from another keypad.
How Does the Membrane Interface with Printed PET, FPC or PCB?
A flexible membrane circuit can carry printed conductive traces and stationary contacts on PET. An FPC uses copper conductors on polyimide, while a rigid PCB provides a different pad finish, flatness and assembly reference. The dome carrier may be flexible in all three cases, but the contact geometry and lamination process are not interchangeable.
The design review should coordinate the dome support points, central and outer contacts, trace exits, surface finish, protective coating boundaries and circuit flatness. When an array combines non-standard key spacing or force values, our custom dome arrays can be developed from Gerber, PCB/CAM, AutoCAD, PDF or a controlled drawing so the carrier and circuit share the same coordinates.
What Changes in Waterproof Flexible Membrane Switches?
Waterproof flexible membrane switches need a sealed outer boundary, but the metal dome cavity still needs predictable pressure behavior. The solution is not simply to remove every vent. Depending on the enclosure and exposure level, the design may use an internal vent manifold, a protected exit, a pressure-equalizing strategy or isolated key cavities.
Sealing claims should apply to the completed interface, not only the carrier film. Tail exits, connector areas, mounting holes, adhesive edges and enclosure compression can all become leakage paths. Prototype testing should use the intended housing and compression conditions so that waterproofing changes do not conceal a slower return or altered tactile force.
What Defects Cause Poor Tactile or Electrical Performance?
| Observed problem | Likely membrane-related cause | Useful check |
|---|---|---|
| Key feels heavier than expected | Trapped air, off-center actuator or carrier tension | Compare force curves with the cavity vented and assembled |
| Key returns slowly | Restricted vent, adhesive intrusion or excessive overlay preload | Inspect the vent route and layer compression |
| Intermittent contact | Dome-to-pad offset, contaminated contact or unstable support | Measure registration and closed resistance by key position |
| Neighboring key response changes | Shared trapped-air path or local sheet distortion | Test keys individually and in rapid sequence |
| Dome shifts during assembly | Weak retention, damaged release liner or poor placement datum | Inspect the carrier pocket before and after lamination |
Visual inspection alone cannot prove a good switch. A centered-looking dome may still have an incorrect force path, and a circuit that passes continuity once may not provide stable resistance or return behavior over repeated cycles.
What Should Be Specified and Tested Before Production?
The production package should identify the circuit revision, dome part number, key coordinates, carrier and adhesive, spacer thickness, vent path, actuator geometry, total stack height, target tactile values and environmental requirements. Any waterproof boundary and permitted vent exit should be shown explicitly.
- verify dome position and adhesive keep-out against the circuit datums;

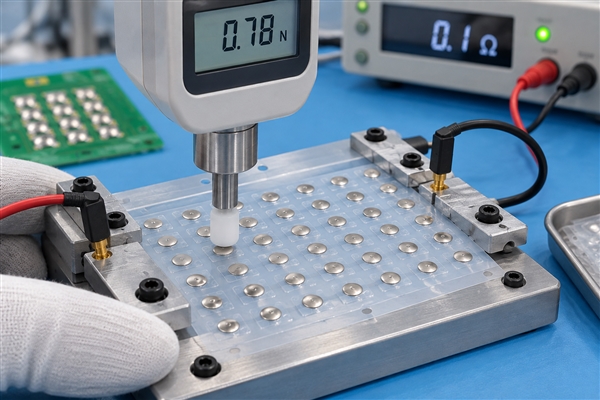

- measure trip force, rebound force, travel and click response on the completed stack;
- confirm open/closed resistance and switching at every key location;
- check vent recovery and interaction between neighboring keys;
- run life-cycle and environmental tests appropriate to the actual application.
EBest Circuit(Best Technology) has manufactured metal domes and dome arrays since 2006. Our published dome-array capabilities include total heights of 0.28-0.45 mm, travel of 0.13-0.30 mm, typical force scope of 100-400 gf and life cycles above 1,000,000, depending on dome geometry, materials, stack-up and engineering review. We provide trip-force, rebound-force and life-cycle testing for the approved construction.
For a new flexible membrane project, send the circuit file, key layout, target feel, actuator details, sealing requirement and expected life to our engineering team at sales@metal-domes.com. We will review the membrane, dome and circuit as one switching system before prototyping.
