How to increase the click feeling of metal dome?

We know the click feeling of metal dome largely affects the use of the whole products, so how should we do to improve the click feeling of metal dome?

Here are the answers:

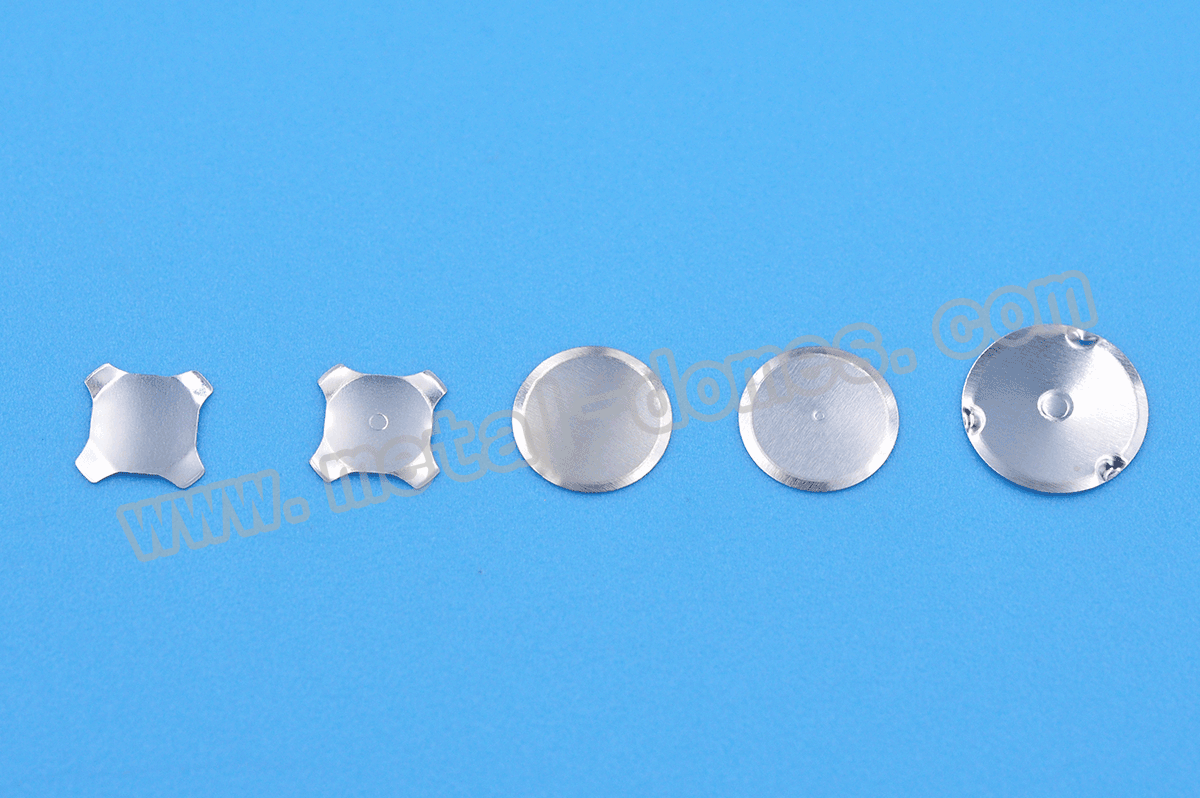

  1. Choose the high-height metal dome, such as four leg metal dome, metal dome with dimple on center or metal dome with dimple on side. Their has relatively strong touch feeling itself, can remian better click feeling after assembly.

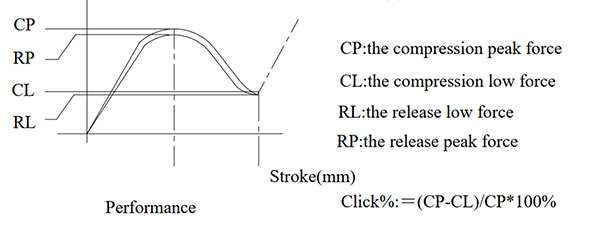

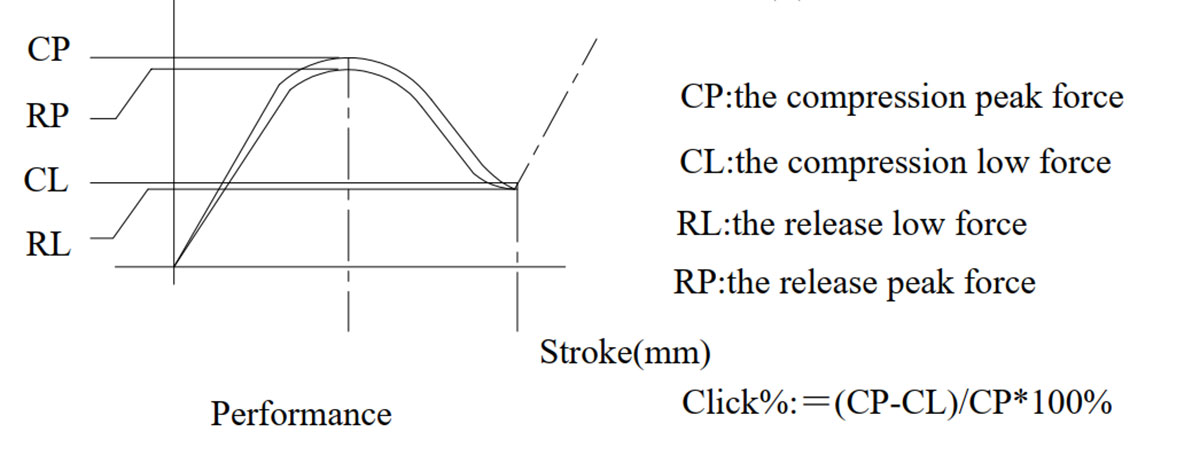

  • Adjust the click ratio directly. We know click feeling (CC) has a equation to define: CC(%)=(CP-CL)/CP*100%, the higher the CC score, the better click feeling. But we don’t suggest to make CC score exceed 70%, because if the click feeling is too high then it will affect the life cycle of snap dome.

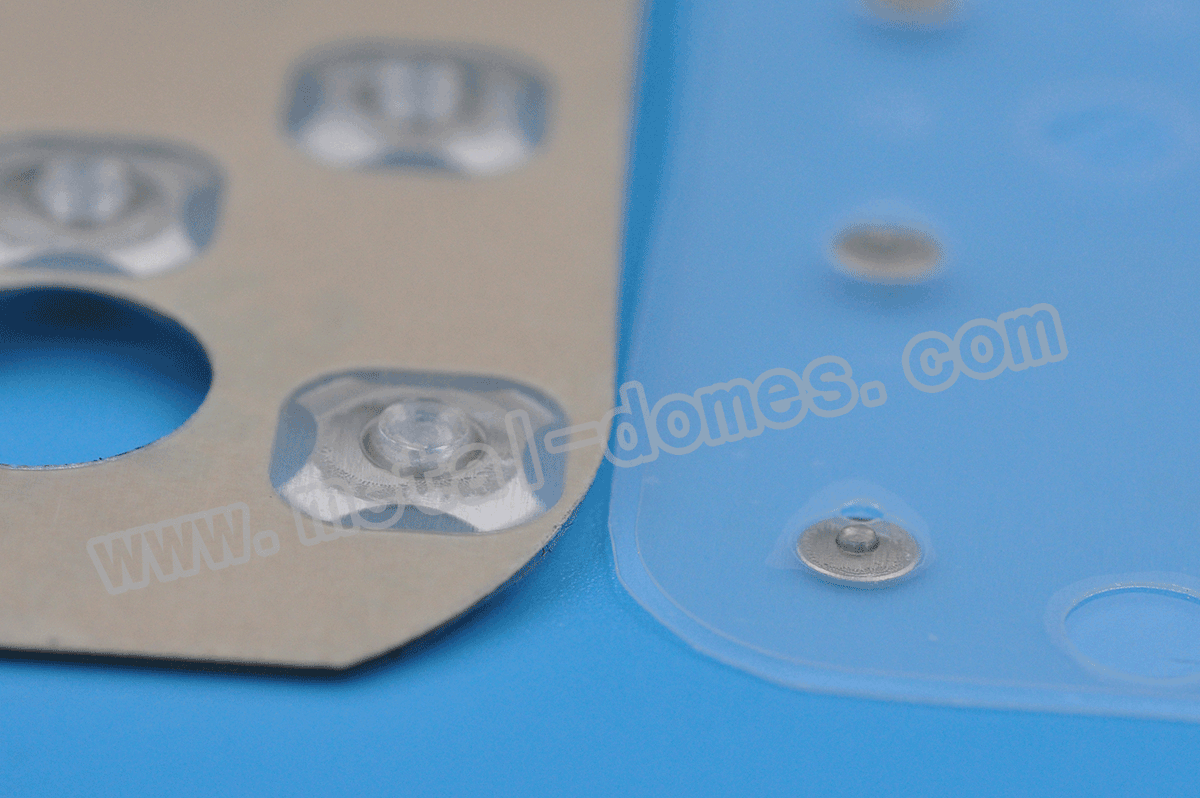

  • Make UV plunger on the surface of dome array, position on the center of switch dome to improve the click ratio, this kind products we called UV plunger dome array.

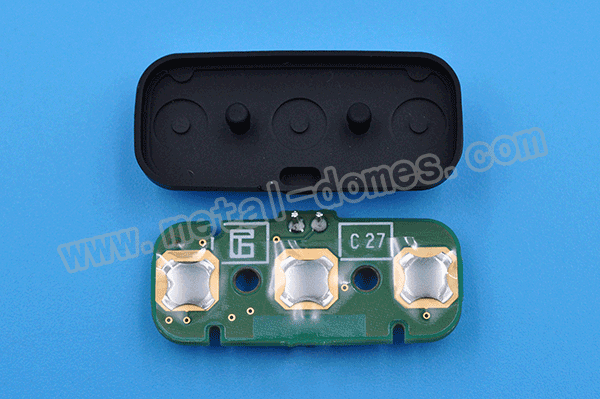

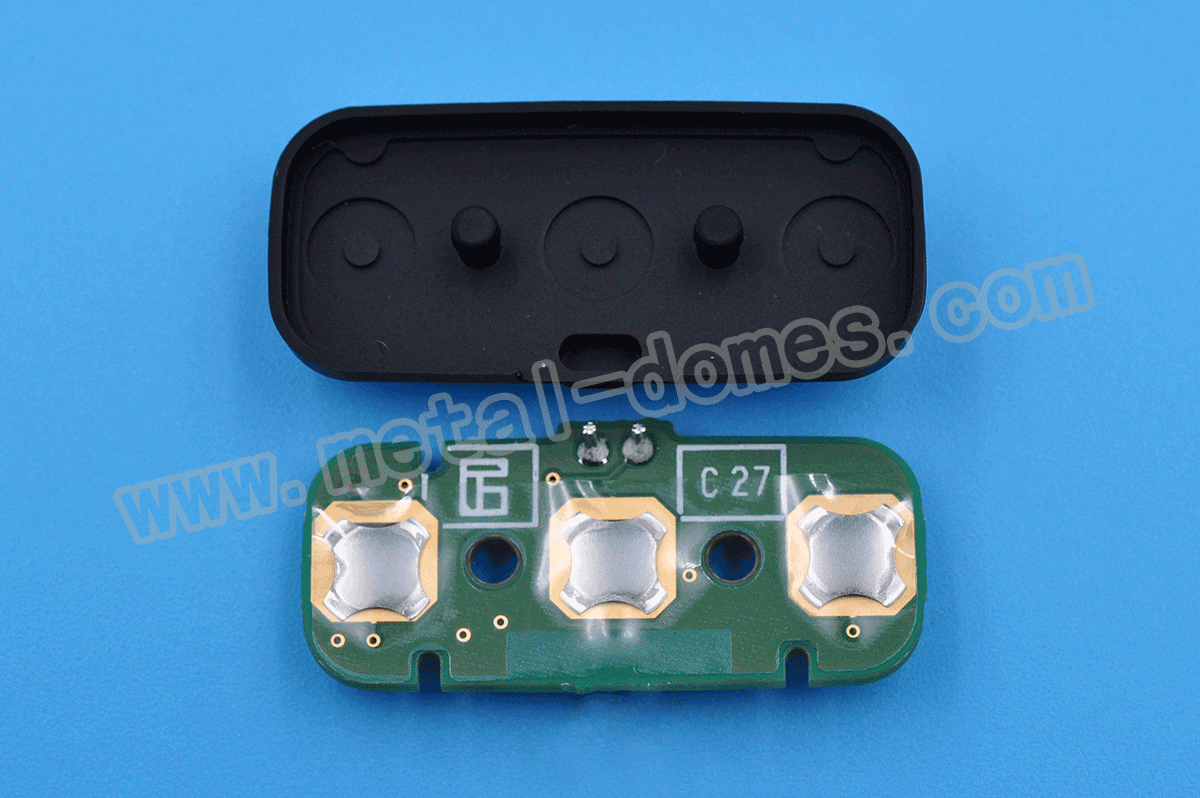

  • Don’t make thecontact silicon botton too large, large silicon botton will affect the click feeling as well.
  • Make the dome array accurately aligned with PCB pad during assembly. Becasue the click feeling in center of metal dome is the best, the deviation will also affect the click feeling.

Best Technology, as the top 5 metal dome & dome array manufacturer in China, we have more than 15 years experience in snap dome, metal dome sheet and tactile membrane switch industrial, our metal dome is equivalent with Snaptron & Nicomatic metal dome,we can always provide you the best solution for your dome switch project. If you have any doubt or inquiry about the snap dome please kindly call us or email us at any time.
