What is a PET metal dome array?

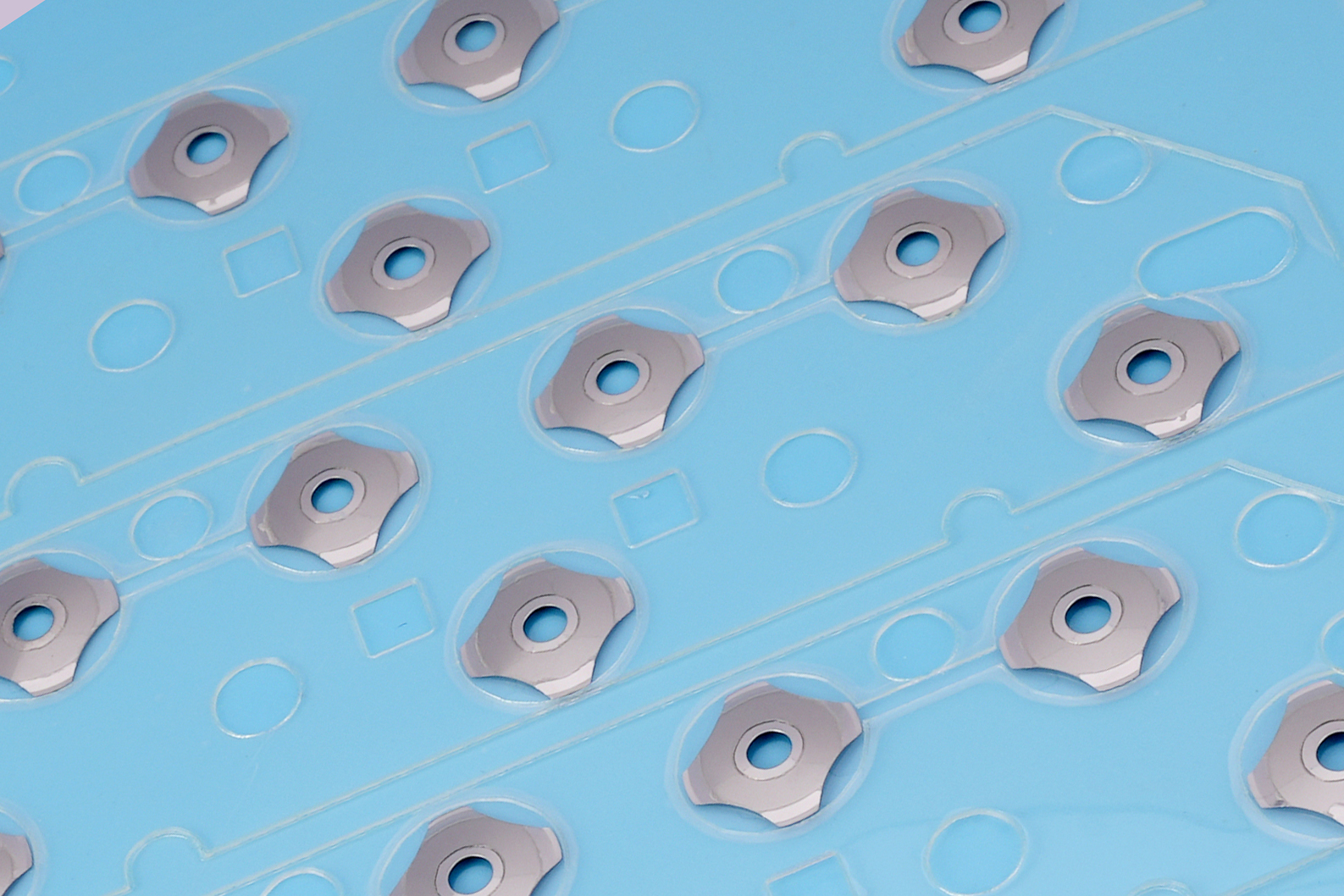

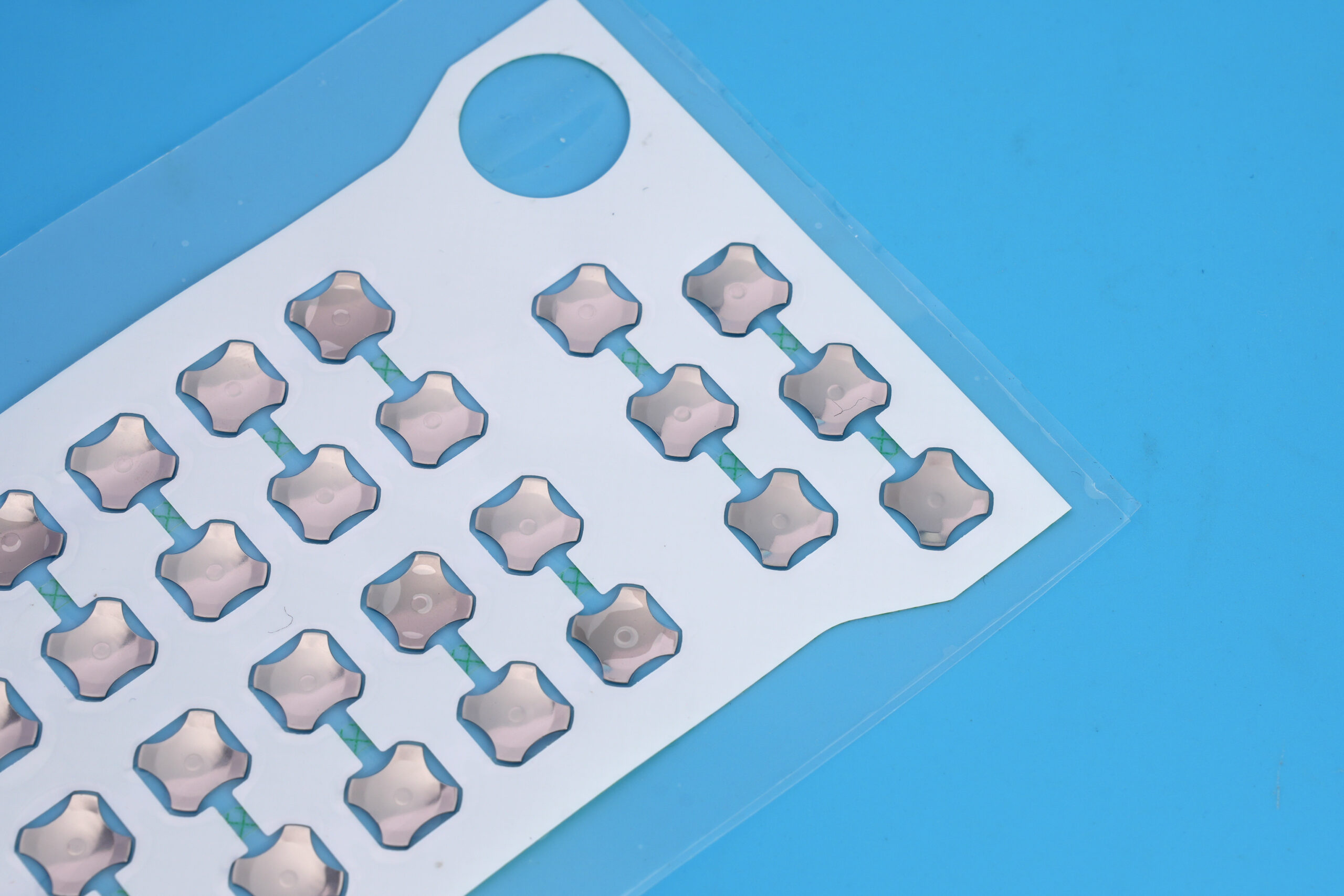

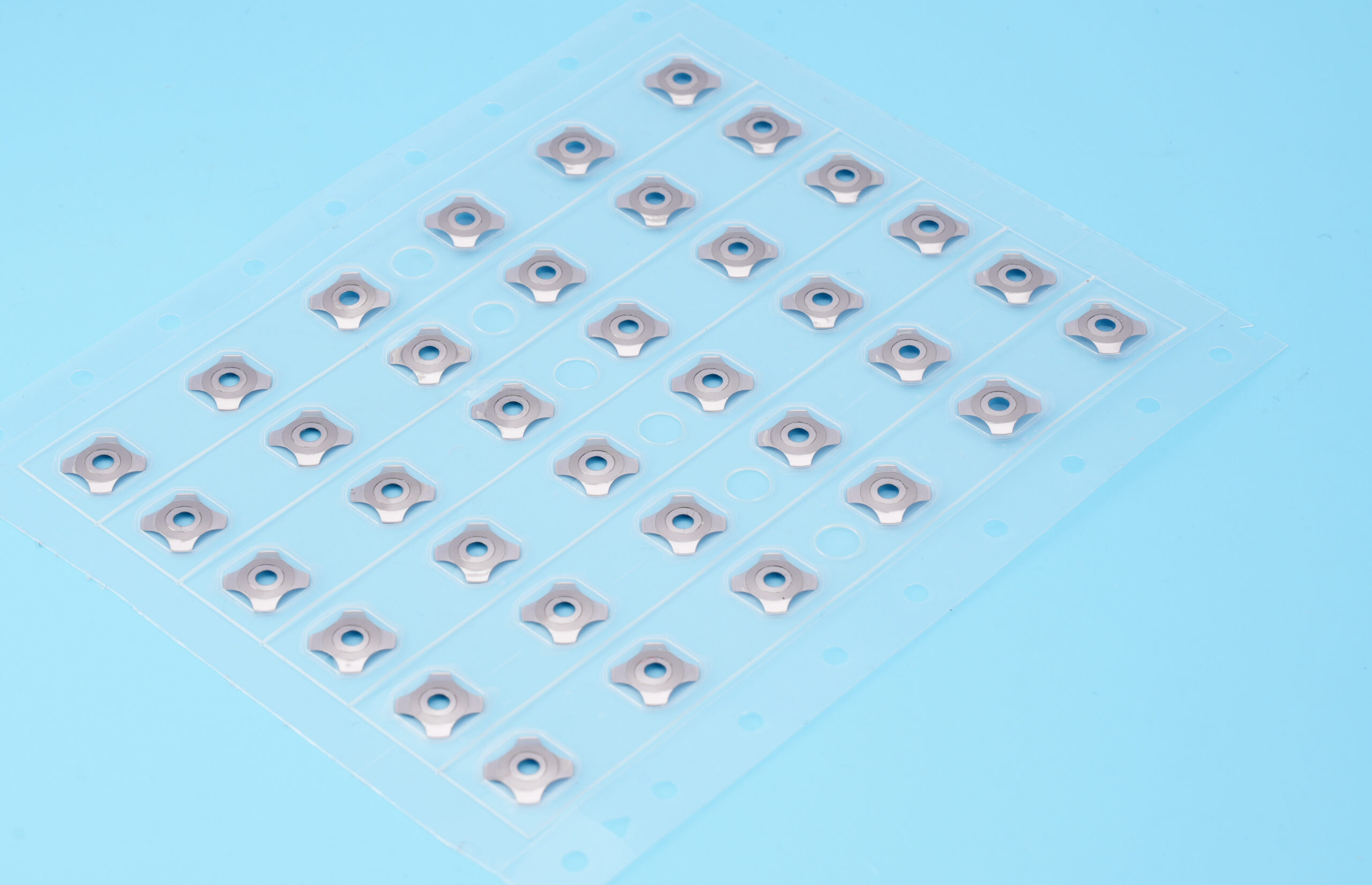

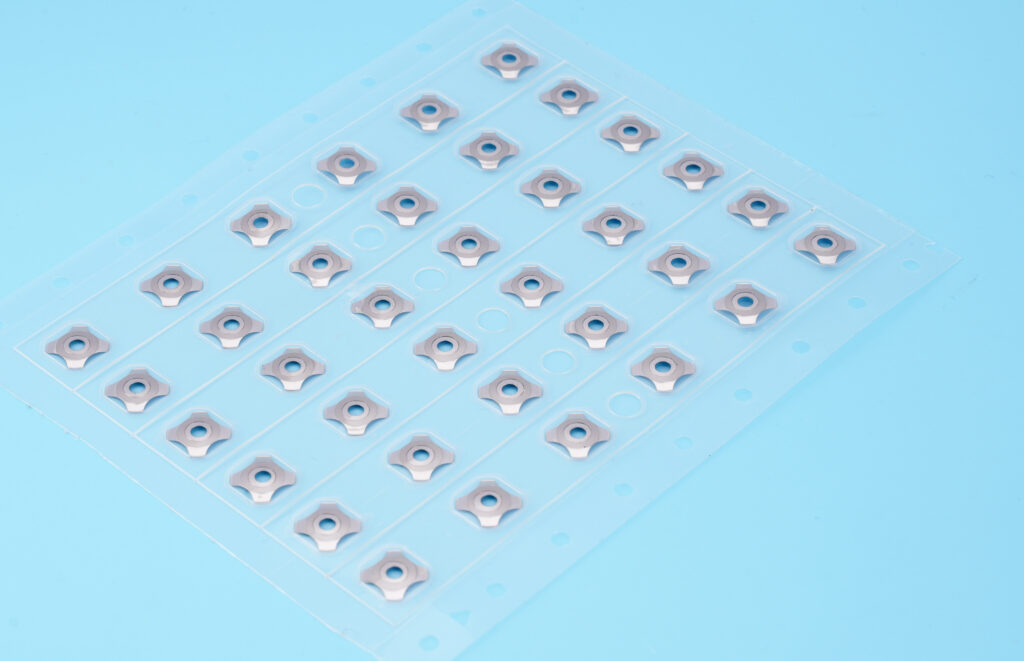

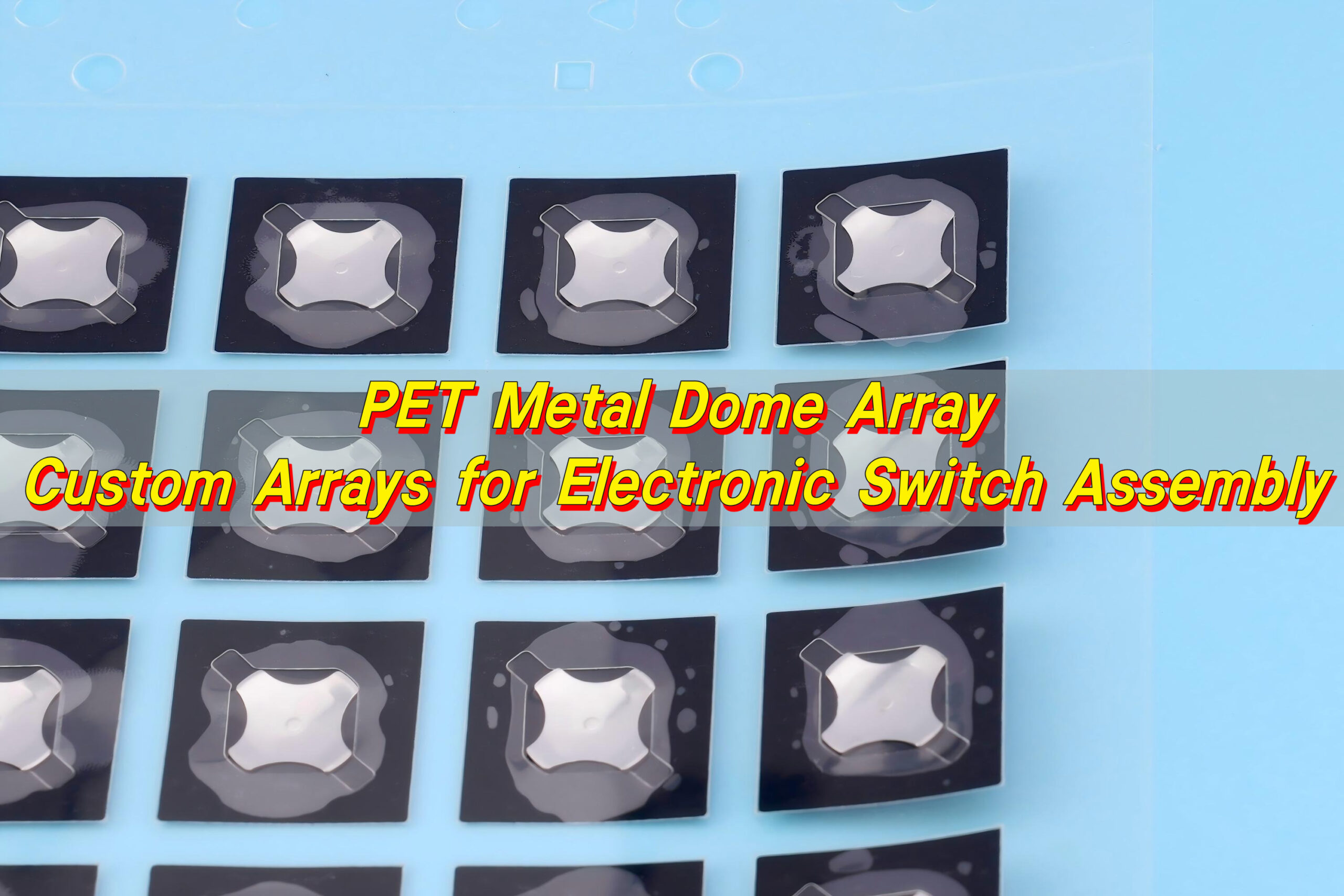

A PET metal dome array is a pre-assembled sheet of metal domes fixed onto a PET carrier film. The domes are arranged in precise positions to match a PCB or membrane circuit layout. The PET film holds each dome in place. An adhesive layer bonds the sheet to the board.
This structure turns loose domes into a ready-to-mount switch module. It saves time during assembly. It also keeps spacing accurate. In simple terms, the PET film acts as a positioning frame. The metal dome creates the tactile click. Together, they form a reliable switching layer.
A PET metal dome array is widely used in membrane switches, control panels, and compact electronic devices. It works well in both consumer and industrial designs. The main parts include:
- Stainless steel metal domes
- PET film carrier
- Pressure-sensitive adhesive layer
- Release liner for protection
When pressed, the dome collapses and makes contact with the circuit below. When released, it returns to its original shape. That snap action creates clear tactile feedback. Compared with loose domes, a PET adhesive metal dome array improves placement speed and reduces alignment error. This is important for automated production lines.
Manufacturers can design different shapes such as four-leg, triangle, or round domes. The layout follows the PCB footprint exactly. That makes it ideal for PET metal dome array for PCB applications where precision is critical. At EBest Circuit (Best Technology), each array is engineered according to the customer’s drawing. The goal is stable performance, strong adhesion, and long service life.
What are the benefits of a PET metal dome array?
The PET metal dome array offers both mechanical and production advantages. It improves tactile quality and simplifies assembly at the same time.
Here are the key benefits:
- Accurate dome positioning
- Faster assembly time
- Clean and organized layout
- Strong adhesion to PCB
- Consistent tactile response
- Reduced handling damage
- Easy integration into automated lines
Precision is one of the biggest strengths. The PET film metal dome array keeps each dome aligned within tight tolerances. This prevents shift during transport or mounting.
Efficiency is another advantage. Instead of placing domes one by one, operators apply a full sheet in seconds. This improves throughput and reduces labor cost.
Reliability also improves. A well-designed PET adhesive metal dome array protects domes from contamination. The sealed structure keeps dust away from contact points.
The tactile feeling is stable across all keys. Each dome is manufactured to match the same force curve. That uniform feedback improves user experience.
For compact electronics, space matters. The thin PET layer keeps the total height low. This supports slim product designs.
A custom PET metal dome array can also include vent holes or alignment marks. These details improve air flow and assembly accuracy.
EBest Circuit (Best Technology) focuses on balancing snap ratio, actuation force, and durability. The result is a strong and crisp click that lasts for hundreds of thousands or even millions of cycles.
How to design a custom PET metal dome array?
Designing a custom PET metal dome array starts with understanding the device structure. The layout must match the PCB pad design. Precision is critical.
The design process usually follows these steps:
- Confirm PCB pad size and spacing
- Select dome shape and actuation force
- Choose PET film thickness
- Define adhesive type
- Add alignment holes if required
- Create production drawing
- Make samples for validation
The dome shape depends on the switching area. Four-leg domes offer stable contact. Round domes are compact. Triangle domes suit smaller footprints.
Actuation force selection depends on user preference. Control panels may require a firm click. Handheld devices often prefer lighter touch.
The PET film supports the structure. Its thickness affects flexibility and stability. Engineers balance rigidity with easy lamination.
Adhesive selection is also important. A PET adhesive metal dome array must bond securely to the PCB surface. At the same time, it should not leave residue during rework.
Tolerances must be controlled tightly. Even small deviation can affect contact alignment. Professional PET metal dome array manufacturer teams use laser cutting or precision die cutting to ensure consistency.
EBest Circuit (Best Technology) works closely with engineers during this stage. We review drawings, suggest improvements, and optimize dome placement. Early collaboration reduces risk in mass production.
A prototype test is recommended. A sample custom PET metal dome array allows engineers to check tactile feel and electrical performance before volume production.
What PET film thickness is best for dome arrays?
PET film thickness affects both handling and performance. There is no single value that fits all designs. Selection depends on application and structure.
Common PET thickness options include:
- 0.05 mm
- 0.075 mm
- 0.1 mm
- 0.125 mm
Thinner film increases flexibility. It works well for curved or compact layouts. However, it requires careful handling.
Thicker film improves stability during placement. It resists deformation. It is suitable for larger panels or high-force domes.
In many consumer electronics projects, 0.075 mm or 0.1 mm PET film metal dome array designs provide a good balance.
Engineers also consider total stack height. The combined thickness of PET, adhesive, and dome must fit inside the product housing.
Another factor is environmental condition. Higher temperature or humidity requires stable material. Quality PET maintains dimensional accuracy under stress.
A professional PET metal dome array manufacturer will test peel strength and thermal resistance. This ensures the film does not warp or shrink during assembly.
EBest Circuit (Best Technology) evaluates each project case by case. We analyze force curve, adhesive strength, and operating environment before recommending thickness.
How to assemble a PET metal dome array?
Assembly is simple when the design is correct. The PET metal dome array is usually applied after PCB cleaning and inspection.
The general assembly process includes:
- Clean PCB surface
- Remove release liner
- Align array with PCB pads
- Press evenly to bond adhesive
- Install overlay or membrane layer
- Perform functional test
Cleanliness is essential. Dust can affect electrical contact.
Alignment marks help position the PET metal dome array for PCB mounting. Some designs use guide pins.
Even pressure ensures uniform bonding. Rollers or flat pressing tools are common in production lines.
Once installed, the membrane or keypad overlay sits above the domes. When pressed, force transfers to the dome and activates the switch.
Automated placement systems can further increase efficiency. The array format supports quick lamination.
EBest Circuit (Best Technology) supplies arrays with clear marking and protective liner. This reduces handling error and improves workflow speed.
How to test a PET metal dome array’s performance?
Testing ensures long-term reliability. Both mechanical and electrical properties must be verified.
Common testing methods include:
- Actuation force measurement
- Snap ratio evaluation
- Contact resistance test
- Life cycle test
- Adhesion strength test
- Environmental aging test
The actuation force test checks how much pressure is required to collapse the dome. Snap ratio measures tactile sharpness. A higher snap ratio usually means clearer feedback.
Contact resistance testing confirms stable electrical connection. Low and stable resistance is preferred.
Life cycle testing simulates repeated pressing. Many designs exceed one million cycles.
Adhesion strength testing ensures the PET adhesive metal dome array stays bonded during use.
Environmental testing may include high temperature, humidity, and vibration. These tests simulate real operating conditions.
At EBest Circuit (Best Technology), strict quality control follows ISO standards. Each production batch undergoes inspection before shipment.
How to choose a PET metal dome array supplier?
Selecting the right PET metal dome array manufacturer affects product quality and delivery schedule.
Consider these factors:
- Experience in dome manufacturing
- Engineering support capability
- Precision tooling equipment
- Quality control system
- Sample response speed
- Stable supply chain
- Clear communication
A reliable supplier provides technical advice. They do not only produce parts. They help optimize design.
Production capability matters. Tight tolerance control ensures consistent tactile performance.
Quick prototype service shortens development time. Fast feedback reduces project delay.
EBest Circuit (Best Technology) has years of experience in metal dome production and custom arrays. Our engineering team supports both small and large projects. We offer quick sample turnaround and stable mass production capacity.
Partnership is about trust and transparency. Clear specifications and open discussion lead to better results.
Where are PET metal dome arrays commonly used?
PET metal dome arrays are used in many industries. Their slim profile and stable tactile response make them versatile.
Common applications include:
- Membrane switch panels
- Industrial control interfaces
- Medical device keypads
- Consumer electronics
- Remote controllers
- Automotive control panels
In membrane switches, the PET metal dome array creates the clicking layer under the graphic overlay.
Industrial equipment benefits from durable performance. Operators need reliable feedback.
Medical devices require stable and clean switching behavior. PET film supports hygienic design.
Consumer electronics demand compact size and strong user experience. A well-designed custom PET metal dome array improves product feel instantly.
Automotive controls need consistent operation under vibration. High-quality arrays handle such conditions.
As products become thinner and smarter, demand for precise switching modules grows. PET metal dome array solutions meet this need effectively.
In summary, a PET metal dome array integrates precision positioning, stable tactile response, and efficient assembly into one smart solution. It improves product quality and production speed. Careful design, correct film thickness, proper assembly, and strict testing ensure long service life. Choosing an experienced partner like EBest Circuit (Best Technology) helps secure consistent results and smooth mass production.
