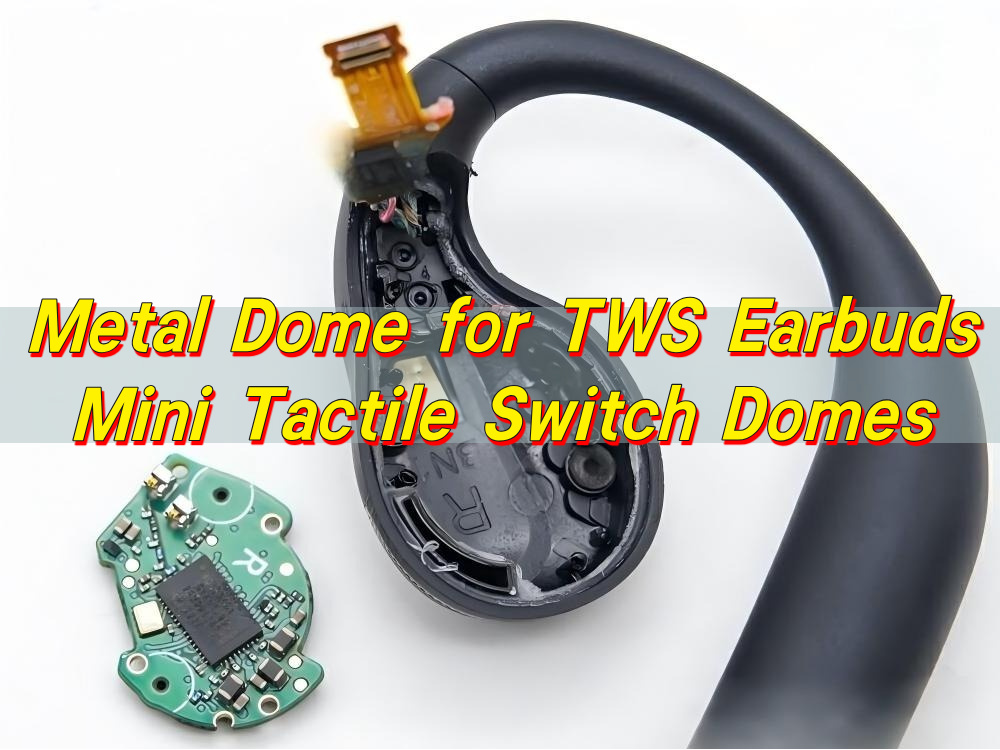

High-precision miniature metal dome for TWS earphone controls, stable performance, compact size and easy assembly.
Why are metal domes used in TWS earbuds?
In TWS earbuds, user interaction often comes down to a simple tap or press. That action must feel responsive and reliable, even though the internal space is extremely compact. Metal domes are widely used because they offer a clean tactile response and consistent electrical performance.
A metal dome works as a momentary switch. When pressed, it collapses and creates a short circuit between two contacts. Once released, it snaps back to its original shape. This snap action creates a clear tactile feedback that users can feel, even through a small plastic housing.
Compared to other switch technologies, metal domes bring several advantages:
- They provide a sharp and noticeable click feeling
- They maintain stable contact resistance over time
- They require very little vertical space
- They are compatible with compact PCB layouts
In TWS earbuds, where users cannot see the button and rely on touch alone, this tactile clarity is extremely important. A vague or soft button can lead to missed commands or accidental presses, which negatively affects the user experience.
Manufacturers like EBest Circuit (Best Technology) often design dome solutions specifically for wearable electronics. Our experience in metal dome arrays and precision stamping helps ensure consistent performance across large production volumes.
How small are metal domes for TWS devices?
Size is one of the most critical constraints in TWS design. Every millimeter matters, and components must fit into tightly packed internal structures alongside batteries, antennas, and drivers.
Metal domes used in TWS earbuds are extremely small. Typical sizes range from 2 mm to 5 mm in diameter, depending on the product design and required actuation force. Ultra-compact models may use domes even smaller than 2 mm for specialized applications.
Here is a general size reference:
- 2–3 mm: ultra-small designs for micro buttons
- 3–4 mm: common size for most TWS earbuds
- 4–5 mm: used when slightly stronger tactile feedback is needed
The thickness of these domes is also very low, often between 0.03 mm and 0.06 mm. This allows them to fit into extremely thin switch structures without increasing the overall product thickness.
Despite their small size, these domes are engineered with high precision. The forming process ensures uniform curvature and consistent snap force, which is essential for maintaining a uniform user experience across all units.

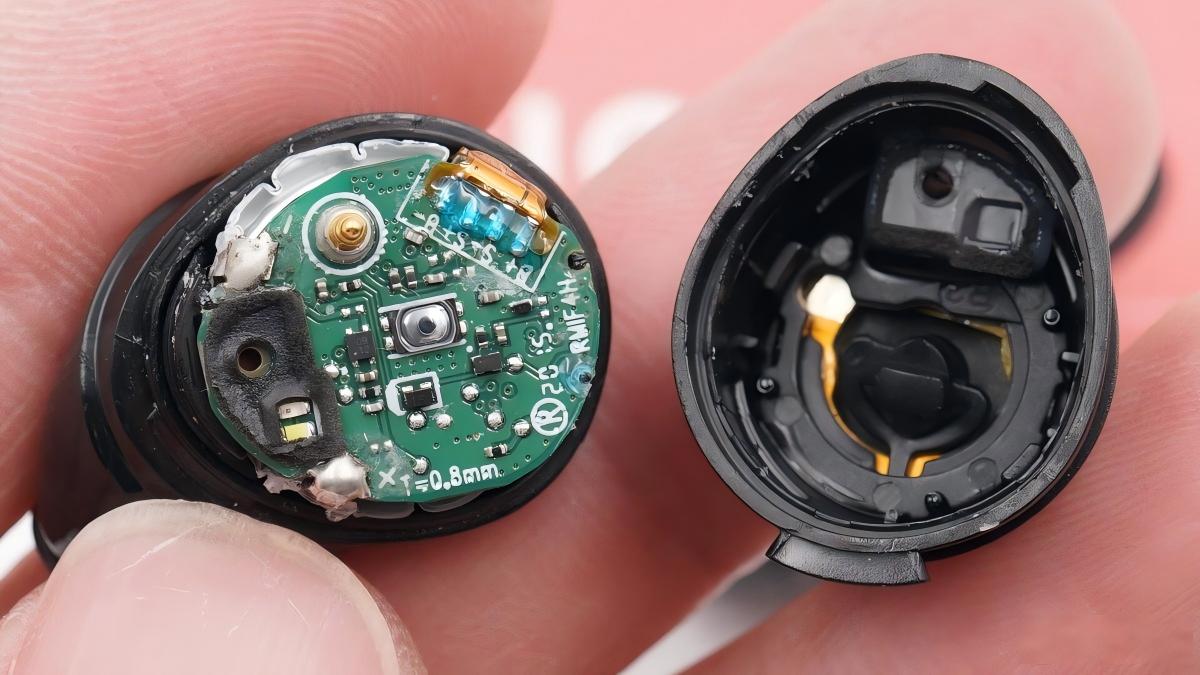

Can these metal domes fit tiny TWS button spaces?
Yes, and that is exactly what they are designed for. Metal domes are one of the most space-efficient switch solutions available. TWS earbuds often have curved housings and irregular internal layouts. This makes it challenging to use traditional mechanical switches. Metal domes, however, can be easily integrated into flexible or rigid PCB designs and even adapted to non-flat surfaces.
Their flexibility comes from several factors:
- Minimal height profile, often less than 0.2 mm when assembled
- Compatibility with adhesive carriers or dome arrays
- Ability to be placed directly over PCB contact pads
Because of these characteristics, metal domes can fit into areas where other switch types simply cannot. Designers can place them under thin plastic covers or silicone layers, allowing for sleek and seamless product designs.
EBest Circuit (Best Technology) supports custom layouts that match the unique geometry of TWS earbuds, ensuring that even the smallest spaces can be effectively utilized.
How long do TWS metal domes normally last?
Durability is a key requirement for wearable electronics. Users may interact with their earbuds multiple times per day, so the internal switch must withstand frequent use. High-quality metal domes are designed for long service life. In most cases, they can handle over 1 million actuations without significant performance degradation. This makes them ideal for TWS applications, where reliability is critical.
The lifespan depends on several factors:
- Material quality (typically stainless steel)
- Surface treatment and plating
- Environmental conditions such as humidity and temperature
- Proper installation and alignment
When manufactured under strict quality control, metal domes maintain their snap ratio and contact stability throughout their lifecycle. This ensures that the tactile feeling remains consistent, even after extended use.
EBest Circuit (Best Technology) follows ISO9001:2015 standards, ensuring that each dome meets strict durability requirements before reaching customers.
Do TWS metal domes provide clear tactile feedback?
One of the biggest reasons designers choose metal domes is their excellent tactile response. The snap action creates a distinct “click” feeling that users can easily recognize. This tactile feedback is defined by the snap ratio, which represents the difference between actuation force and return force. A higher snap ratio typically results in a sharper and more noticeable click.
In TWS earbuds, clear feedback is essential because:
- Users cannot see the button they are pressing
- Accidental touches must be minimized
- Commands need to feel precise and intentional
Metal domes deliver a fast and crisp response that helps users confirm their actions instantly. This improves overall usability and reduces frustration.
Different dome shapes, such as four-leg or triangle domes, can be selected to fine-tune the tactile feel. Engineers can adjust actuation force to match the product’s design philosophy, whether it is light-touch or firm-click interaction.
Can TWS metal domes resist sweat and moisture?
TWS earbuds are exposed to real-world conditions, including sweat, humidity, and occasional splashes. Therefore, internal components must be resistant to moisture. Metal domes are typically made from stainless steel, which offers good corrosion resistance. In addition, many domes are plated with nickel, gold, or other protective coatings to enhance durability.
To further improve moisture resistance, the dome is often integrated into a sealed structure:
- Covered by a PET film or adhesive layer
- Enclosed within a membrane switch assembly
- Protected by the earbud housing
These design approaches help prevent direct exposure to moisture, ensuring stable performance over time. However, it is important to note that the overall waterproof performance depends on the entire device design, not just the dome itself. Proper sealing and assembly are critical.
EBest Circuit (Best Technology) provides dome arrays with protective films that enhance environmental resistance, making them suitable for wearable applications.
Can we customize the size of TWS metal domes?
Customization is a major advantage of metal dome technology. Since TWS earbuds come in various shapes and sizes, standard components may not always fit perfectly.
Manufacturers can customize several parameters:
- Diameter and shape (round, triangle, four-leg)
- Actuation force (light, medium, heavy)
- Material thickness
- Surface finish and plating
- Layout in dome arrays
This flexibility allows designers to optimize both mechanical and electrical performance. For example, a smaller dome with lower force may be used for compact earbuds, while a slightly larger dome may be chosen for better tactile feedback.
EBest Circuit (Best Technology) offers OEM and ODM services, enabling customers to develop tailored solutions that meet specific design requirements. Our engineering team can assist with parameter selection to ensure optimal performance.
How are metal domes installed in TWS earphones?
Installation is a critical step that affects both performance and reliability. Metal domes must be accurately positioned over PCB contact points to function correctly.
There are several common installation methods:
- Loose dome placement with manual assembly

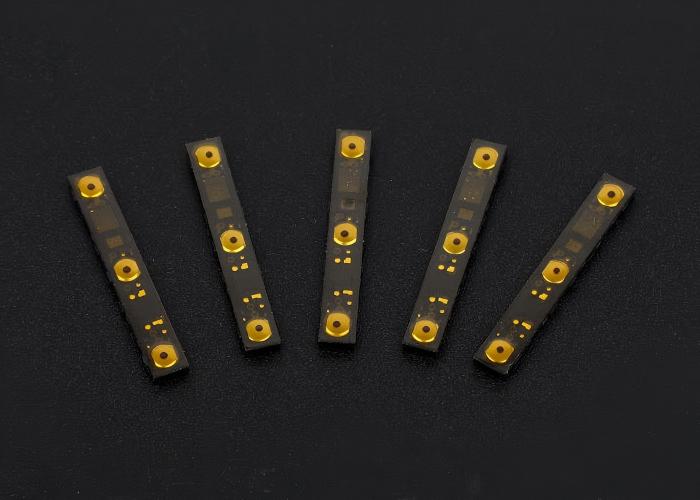

- Dome arrays with adhesive backing
- Tape & Reel packaging for automated SMT placement
Tape & Reel is particularly popular in high-volume production because it allows domes to be placed quickly and precisely using pick-and-place machines. This improves efficiency and reduces alignment errors.
Here is a comparison of installation methods:
| Method | Accuracy | Speed | Cost Efficiency | Best Use Case |
|---|---|---|---|---|
| Manual placement | Medium | Slow | Low for small runs | Prototyping |
| Adhesive array | High | Medium | Balanced | Mid-volume production |
| Tape & Reel SMT | Very high | Very fast | High for mass scale | Large-scale manufacturing |
EBest Circuit (Best Technology) provides Tape & Reel solutions that can reach placement speeds of up to 100,000 units per hour, significantly improving production efficiency.
Do TWS metal domes support fast clicking?
Yes, metal domes are highly responsive and support rapid user interaction. Their snap mechanism allows for quick actuation and reset, making them suitable for fast clicking scenarios.
This is particularly useful in TWS earbuds where users may need to:
- Double-tap to skip tracks
- Triple-tap to activate voice assistants
- Quickly adjust volume or settings
The dome’s elastic properties ensure that it returns to its original shape almost instantly after being pressed. This enables repeated actions without delay. However, the performance also depends on proper design:
- Correct actuation force selection
- Stable mounting to prevent movement
- Accurate alignment with the button structure
When these factors are optimized, metal domes deliver smooth and reliable fast-click performance.
How to choose the right metal dome for TWS?
Selecting the right metal dome involves balancing several design factors. There is no one-size-fits-all solution, so engineers must consider the specific requirements of their product.
Key factors to evaluate include:
- Size constraints within the earbud housing
- Desired tactile feel and actuation force
- Environmental conditions such as moisture exposure
- Production volume and assembly method
- Cost targets
A practical selection process often includes testing multiple dome configurations to find the best match.
Here is a simple comparison of common dome types:
| Feature | Round Dome | Four-Leg Dome | Triangle Dome |
|---|---|---|---|
| Tactile feel | Smooth | Strong and crisp | Balanced |
| Stability | Good | Excellent | Good |
| Size flexibility | High | Medium | Medium |
| Typical use | General purpose | High-precision | Compact designs |
Working with an experienced supplier like Best Technology can simplify this process. Our team can recommend suitable dome types based on your design goals and provide samples for evaluation.
In summary, metal domes play a vital role in delivering reliable and responsive user interaction in TWS earbuds. Their compact size, long lifespan, and excellent tactile feedback make them an ideal choice for modern wearable devices. With proper design and customization, they can meet the demanding requirements of even the smallest and most advanced products.
