What is an automotive switch metal dome?

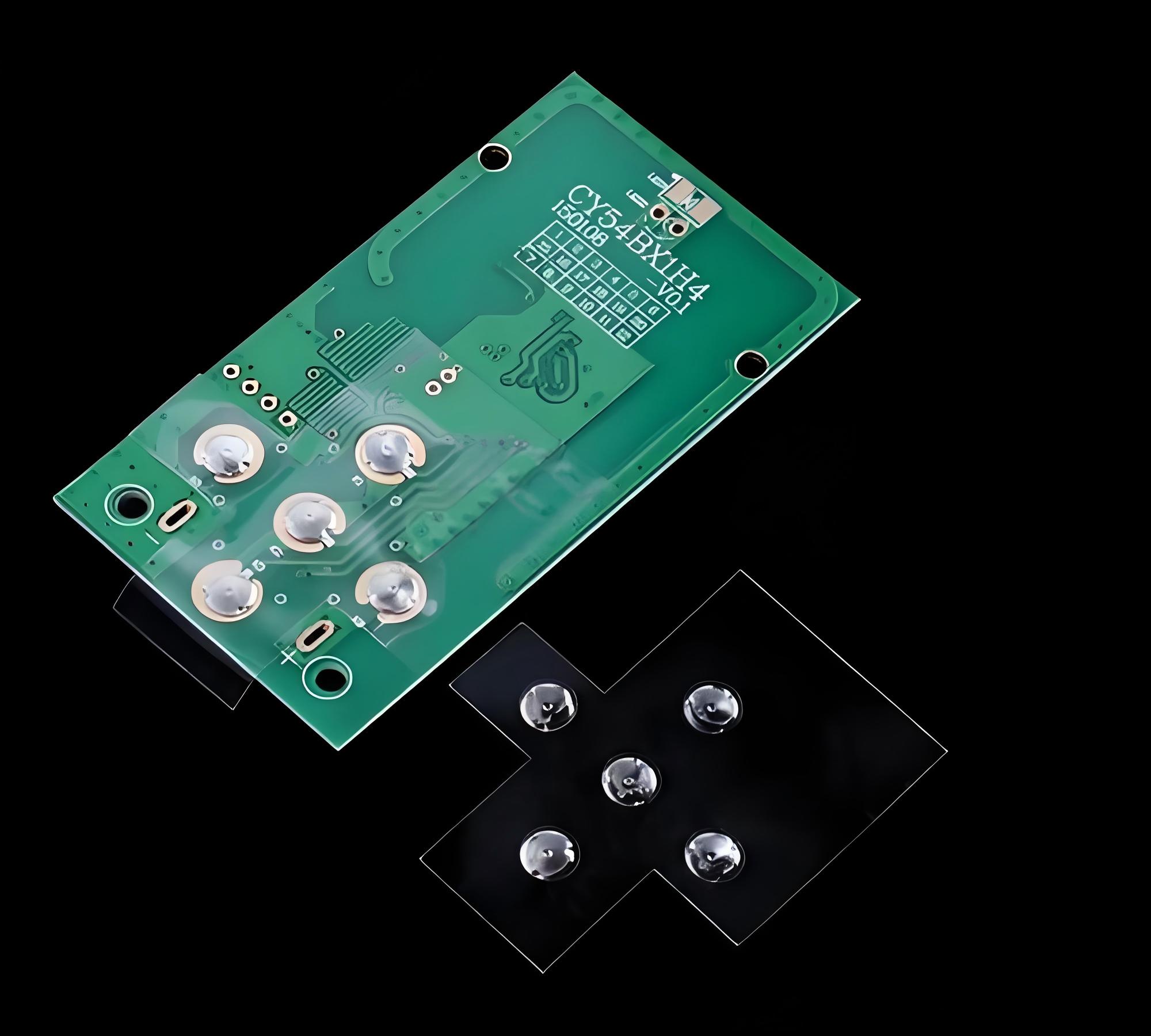

An automotive switch metal dome is a precision-formed metal component used as a tactile contact element inside vehicle control interfaces. It is commonly integrated into membrane switch structures, printed circuit boards, or flexible circuits to provide a clear, responsive feedback when a user presses a button. In simple terms, it is the “click” you feel when operating a car’s control system.
Unlike traditional mechanical switches that rely on bulky moving parts, a metal dome operates through elastic deformation. When pressed, the dome collapses and creates an electrical connection. Once the pressure is released, it returns to its original shape, ready for the next cycle. This simple yet effective design ensures consistent performance over long periods.
In automotive environments, these domes are engineered with higher precision and stricter tolerances compared to consumer electronics. They must handle frequent use, harsh conditions, and safety-critical operations without failure. This makes them a vital component in modern vehicle control systems.
The structure of an automotive switch metal dome typically includes:
- A stainless steel dome with defined actuation force
- A contact surface designed for stable conductivity
- Optional adhesive or carrier layers for positioning
- Compatibility with PCB or membrane circuits
EBest Circuit (Best Technology), as a specialized manufacturer, focuses on producing high-performance dome solutions that meet automotive-grade expectations. Our designs emphasize durability, accuracy, and consistent tactile feedback, which are essential for driver interaction.
Why use metal domes in automotive switches?
Automotive switches require reliability, responsiveness, and long-term stability. Metal domes provide a unique combination of these qualities, making them a preferred choice for vehicle control systems.
One of the main advantages is tactile feedback. Drivers rely on physical confirmation when operating controls, especially while driving. A well-designed dome delivers a crisp and clear click, reducing uncertainty and improving safety.
Another key benefit is compact design. Modern vehicles demand space-saving solutions due to increasing electronic integration. Metal domes allow engineers to design thinner and more efficient switch assemblies without compromising functionality.
Here are some important reasons why metal domes are widely used:
- Precise tactile response: Clear feedback enhances user experience
- High durability: Designed for millions of actuations
- Compact structure: Suitable for slim automotive interfaces
- Stable electrical performance: Reliable contact resistance over time
- Cost efficiency: Scalable manufacturing for large production volumes
Compared to rubber dome switches, metal domes offer sharper feedback and longer life. Compared to mechanical switches, they reduce size and complexity. In automotive applications, these benefits translate into improved driver confidence, better interface design, and reduced maintenance risks.
What quality standards apply to automotive metal domes?
Automotive components must meet strict quality and reliability standards. Metal domes used in vehicle switches are no exception. They are often required to comply with internationally recognized automotive and environmental standards.
The most relevant standards include:
- ISO 9001: Ensures consistent quality management systems
- IATF 16949: Automotive-specific quality management standard
- RoHS and REACH: Environmental compliance for hazardous substances
- AEC-Q standards: Reliability testing for automotive electronics
Manufacturers must also conduct rigorous internal testing to validate performance under real-world conditions. These tests typically include:
- Mechanical life cycle testing
- Temperature cycling
- Humidity exposure
- Vibration and shock resistance
- Contact resistance measurement
EBest Circuit (Best Technology) follows ISO9001:2015 standards and integrates strict inspection processes at every stage of production. From raw material selection to final packaging, each step is controlled to ensure stable quality. Consistency is critical in automotive applications. Even minor variations in dome force or shape can affect user experience and system reliability. Therefore, precision manufacturing and strict quality control are essential.
What is the cycle life of automotive switch metal domes?
Cycle life refers to the number of times a metal dome can be pressed and released while maintaining its performance. In automotive applications, this parameter is extremely important because switches are used frequently over many years.
High-quality automotive metal domes typically offer a cycle life ranging from:
- 500,000 cycles to over 1,000,000 cycles
Advanced designs and materials can even exceed this range, depending on the application and operating conditions.
Several factors influence cycle life:
- Material quality (usually stainless steel)
- Dome shape and geometry
- Actuation force design
- Environmental exposure
- Assembly accuracy
A well-designed dome maintains consistent tactile feel throughout its lifespan. This ensures that the user experience does not degrade over time. Long cycle life not only improves reliability but also reduces warranty costs and enhances brand reputation for automotive manufacturers.
EBest Circuit (Best Technology) has developed metal dome solutions with stability exceeding one million actuations. This level of durability is particularly important for frequently used controls such as window switches, climate systems, and infotainment buttons.
Can automotive metal domes withstand high temperatures?
Automotive environments can expose components to extreme temperatures. Interior surfaces can reach high heat under direct sunlight, while external components may face cold conditions in winter. Metal domes are well-suited for these environments due to their material properties. Stainless steel, the primary material used, offers excellent thermal stability and resistance to deformation.
Typical temperature performance includes:
- Operating range: -40°C to +85°C or higher
- Short-term exposure tolerance beyond standard limits
- Minimal change in mechanical properties within operating range
Temperature resistance ensures that the dome maintains its shape and actuation force even under thermal stress. This is crucial for consistent switch performance.
In addition, proper design and material selection help prevent issues such as:
- Loss of elasticity
- Increased contact resistance
- Structural fatigue
EBest Circuit (Best Technology) carefully selects materials and applies precise forming techniques to ensure that their metal domes perform reliably under temperature variations.
Are automotive switch metal domes vibration resistant?
Vehicles are constantly exposed to vibration from the engine, road conditions, and driving dynamics. Switch components must remain stable under these conditions to avoid malfunction. Metal domes are inherently resistant to vibration due to their compact structure and secure integration within switch assemblies. When properly mounted, they maintain consistent contact performance even under continuous movement.
Key features that support vibration resistance include:
- Low mass and compact design
- Strong mechanical resilience
- Secure attachment through adhesive or carrier systems
- Stable contact geometry
Testing for vibration resistance often involves simulating real driving conditions to ensure long-term reliability.
In automotive systems, vibration resistance contributes to:
- Consistent switch operation
- Reduced risk of false triggering
- Improved overall system stability
EBest Circuit (Best Technology) designs metal dome arrays with precise positioning and strong adhesion, ensuring that each dome remains stable even in demanding environments.
What actuation force is used for car interior switches?
Actuation force refers to the amount of pressure required to activate a metal dome. In automotive interior switches, this parameter is carefully optimized to balance comfort and reliability.
Typical actuation force ranges include:
- 100gf to 300gf for most interior controls
The exact value depends on the application. For example:
- Light-touch controls may use lower force
- Safety-related switches may require higher force for deliberate activation
Designers consider several factors when selecting actuation force:
- User comfort and ergonomics
- Prevention of accidental activation
- Consistency across different controls
- Feedback clarity
Balanced handling enhances the driving experience, enabling the user to operate all controls with ease and fluidity, free from any distractions.
| Force Range | Feel Description | Typical Application |
|---|---|---|
| 100–150gf | Light and soft | Infotainment buttons |
| 160–220gf | Balanced | Climate controls |
| 230–300gf | Firm and stable | Safety-related switches |
EBest Circuit (Best Technology) offers customized actuation force solutions, allowing automotive designers to fine-tune user interaction based on specific requirements.

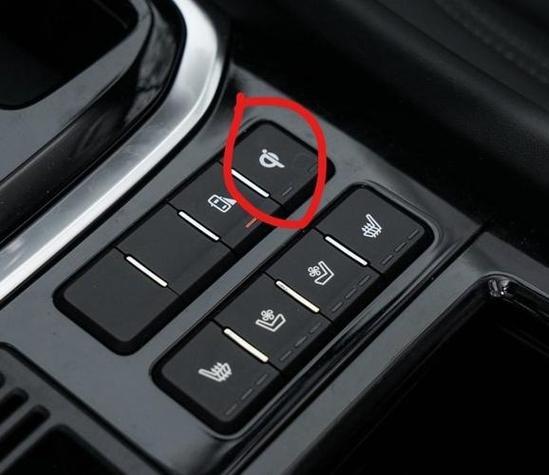

Where are metal domes used in automotive control systems?
Metal domes are widely used across various automotive control systems. Their versatility and reliability make them suitable for many applications within a vehicle.
Common usage areas include:
- Steering wheel controls
- Dashboard interfaces
- Climate control panels
- Infotainment systems
- Door control switches
- Key fobs and remote systems
They are also used in more specialized applications such as:
- Seat adjustment controls
- Lighting systems
- Instrument clusters
These applications benefit from the dome’s compact design and consistent performance.
Here is a simple overview:
- Interior controls: Provide tactile feedback for driver interaction
- Remote systems: Ensure reliable operation in key fobs
- Auxiliary systems: Support secondary vehicle functions

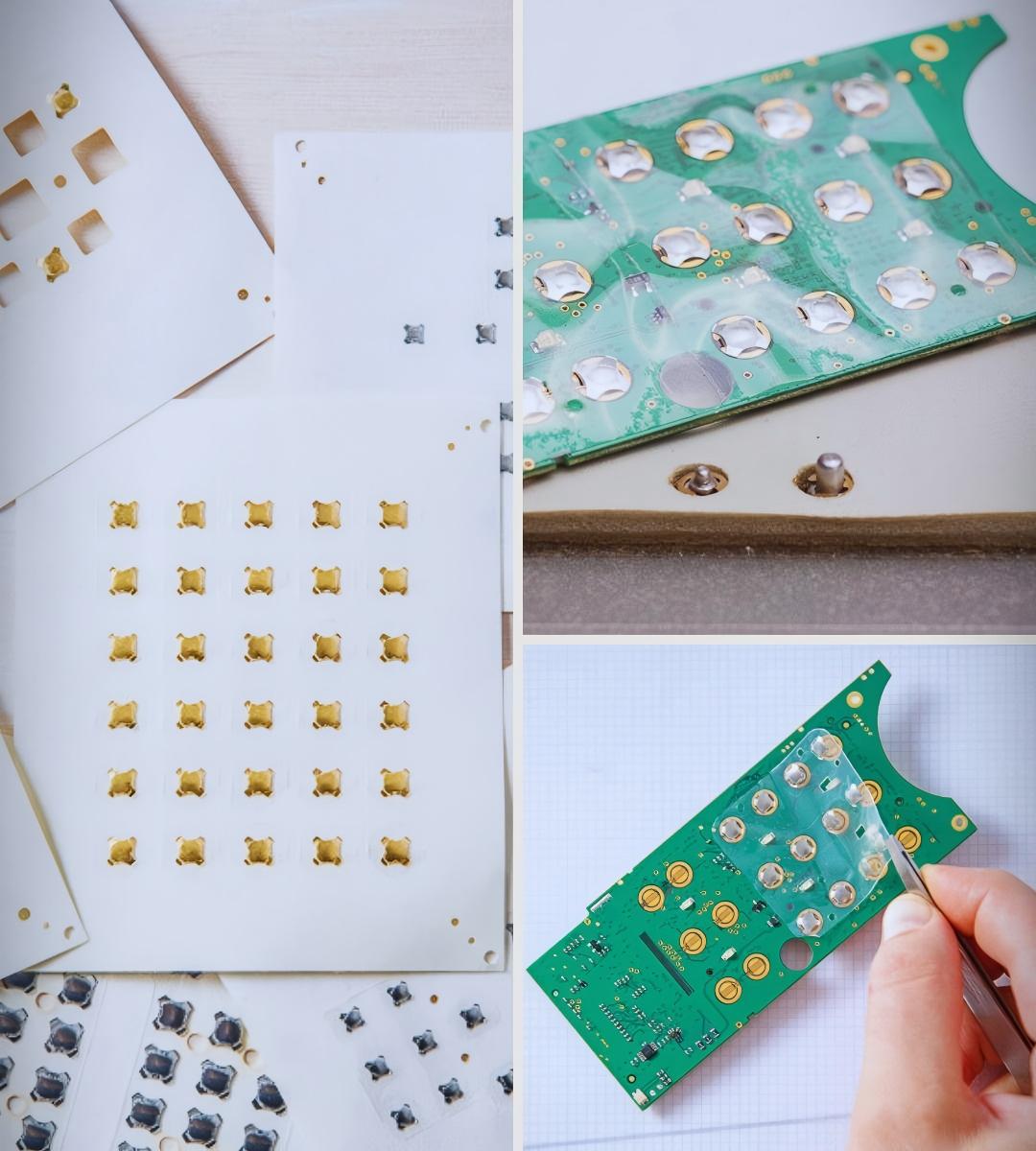

EBest Circuit (Best Technology) supplies metal dome arrays tailored for these applications, ensuring precise alignment and efficient assembly.
Do automotive metal domes support SMT assembly?
Yes, automotive metal domes can fully support SMT (Surface Mount Technology) assembly. This is a major advantage in modern manufacturing environments where automation and efficiency are essential.
One of the most effective packaging methods is Tape & Reel. This approach allows metal domes to be handled by high-speed pick-and-place machines, similar to standard electronic components. Key benefits of SMT-compatible metal domes include:
- High-speed automated placement
- Accurate positioning on PCB
- Reduced labor costs
- Improved production efficiency
EBest Circuit (Best Technology) offers advanced Tape & Reel packaging with several advantages:
- Contact accuracy within ±0.05mm
- Mounting efficiency increased by up to four times
- Assembly speeds reaching tens of thousands of units per hour
- Reduced production time and cost
Compared to traditional bulk handling, SMT-compatible domes provide a more streamlined and reliable manufacturing process. Below is a comparison:
| Feature | Bulk Packaging | Tape & Reel |
|---|---|---|
| Placement method | Manual | Automated SMT |
| Speed | Low | Very high |
| Accuracy | Variable | High precision |
| Cost efficiency | Lower | Higher in volume production |
SMT compatibility is essential for large-scale automotive production, where consistency and efficiency directly impact overall quality.
Conclusion:
Automotive switch metal domes play a crucial role in modern vehicle control systems. They provide reliable tactile feedback, long cycle life, and strong resistance to temperature and vibration. These qualities make them ideal for demanding automotive environments.
EBest Circuit (Best Technology) continues to deliver high-quality metal dome solutions tailored for automotive applications. With advanced manufacturing capabilities and strict quality control, we help ensure consistent performance across a wide range of vehicle systems.
If you are looking for dependable automotive switch metal dome solutions, feel free to reach out: Contact: sales@metal-domes.com
