Our high-quality metal dome is professionally made into reliable metal dome switch for smartphone, delivering stable tactile feedback for smartphone control.
What is a metal dome switch for smartphone?
Metal dome switch for smartphone is a compact tactile component used inside mobile devices to create a clear and responsive press feeling. It works as a momentary contact.
When pressed, the metal dome collapses and makes an electrical connection on the circuit. When released, it snaps back to its original shape and breaks the contact. This simple action supports many phone functions, such as power keys, volume keys, camera buttons, and side controls.
In smartphone design, space is limited. Every part must be thin, stable, and reliable. A metal dome switch fits these needs well. It offers strong tactile feedback while keeping a low profile.
Metal dome switch for smartphone is usually made from stainless steel. The dome shape is carefully formed to control force and travel. The surface may be plated to improve contact performance. Many designs use gold or nickel plating. This helps lower contact resistance and improves signal stability.
At EBest Circuit (Best Technology), metal dome switches are designed for mobile devices from the start. The focus is on consistency, long life, and clean feedback. Each dome is tested to match smartphone usage patterns. This makes them suitable for both consumer and industrial-grade mobile products.
How is metal dome used in smartphone switches?
Metal dome switches are used in smartphones in several practical ways. Most often, they sit between the button cap and the dome switch PCB. When a user presses the external button, force transfers through the structure and activates the dome.
In many designs, domes are placed as single units. These support side keys such as power and volume. In other designs, domes are arranged in arrays. This approach is common in metal dome keypad structures for phones with multiple control points.
A typical smartphone switch stack includes the outer key, a support frame, the metal dome, and the PCB contact. Adhesive layers may hold the dome in place. Spacer films help control travel distance. Each layer plays a role in the final feel
In modern phones, reliability is essential. Buttons are pressed thousands of times. A metal dome switch handles this workload well. It keeps its snap force stable over long use. This helps maintain a consistent user experience.
EBest Circuit (Best Technology) supports custom dome layouts for smartphone projects. Engineers can define dome size, force range, and layout pattern. This flexibility allows the metal dome to fit both standard and unique phone designs.
Why choose metal dome for smartphone switch making?
Metal dome switches bring many advantages to smartphone manufacturing. The first is tactile clarity. A metal dome produces a clear snap.
Another reason is durability. Smartphones travel everywhere. Buttons face dust, vibration, and repeated use. A metal dome switch withstands these conditions. It maintains performance across long cycles.
Thickness control is another key point. Modern phones aim to be thin. A metal dome switch has a low height. It supports slim designs without sacrificing feel.
Metal domes also support precise force control. Engineers can choose different actuation forces. This allows tuning for power buttons or camera keys. Each button can feel unique yet consistent.
There is also a manufacturing benefit. Metal dome switches integrate well with automated assembly. They work with standard pick-and-place processes when packaged correctly. This improves production efficiency.
EBest Circuit (Best Technology) focuses on these strengths. Metal dome switches are developed with smartphone production in mind. This helps customers move from design to mass production smoothly.
Metal dome switch for smartphone vs rubber dome switch: Which is better?
The choice between a metal dome switch for smartphone and a rubber dome switch depends on design goals. Both have roles, but they serve different needs.
A rubber dome switch uses a silicone structure. It compresses under force and returns when released. This design is common in low-cost devices or large keypads. It offers a softer feel.
A metal dome switch uses a metal structure. It snaps during actuation. This creates a sharper response.
In terms of feedback, metal domes are more defined. The snap point is clear. Rubber domes feel smoother and less precise. For phone side keys, precision matters.
Durability also differs. Metal domes often last longer under repeated use. Rubber domes can wear or lose elasticity over time, especially in thin designs.
From a design view, metal domes support thinner structures. Rubber domes need more space to compress fully. This can limit ultra-slim designs.
However, rubber domes can reduce noise. They may suit applications where a quiet press is preferred. In smartphones, clear feedback is often more important than silence.
A simple comparison helps clarify:
- Metal dome switch: crisp feel, thin profile, long life
- Rubber dome switch: soft feel, simple structure, lower cost
How to select metal dome for smartphone switch production?
Selecting the right metal dome for smartphone switch production requires careful thought. The dome must match both mechanical and electrical needs.
The first factor is dome size. Space inside a phone is limited. Common dome diameters range from 3 mm to 8 mm. Smaller domes suit side keys.
Next is actuation force. Force is measured in grams. A power button may need a firmer press to avoid accidental input. Volume keys may feel lighter.
Material quality is also important. Stainless steel with stable spring properties is preferred. Surface plating affects contact performance.
The dome shape matters too. Four-leg domes, round domes, and triangle domes behave differently.
Compatibility with the dome switch PCB is another key point. The dome must align with PCB pads accurately. Poor alignment can reduce contact reliability.
EBest Circuit (Best Technology) supports customers through this selection process. Samples are provided for testing. Technical data helps engineers confirm fit and performance before mass production.
How is a metal dome switch mounted on smartphone PCB?
Mounting a metal dome switch on a smartphone PCB requires precision. The goal is stable contact and repeatable feel.
Most designs use an adhesive layer. The adhesive holds the dome in position over the PCB contact pads. The opening in the adhesive defines the active area.

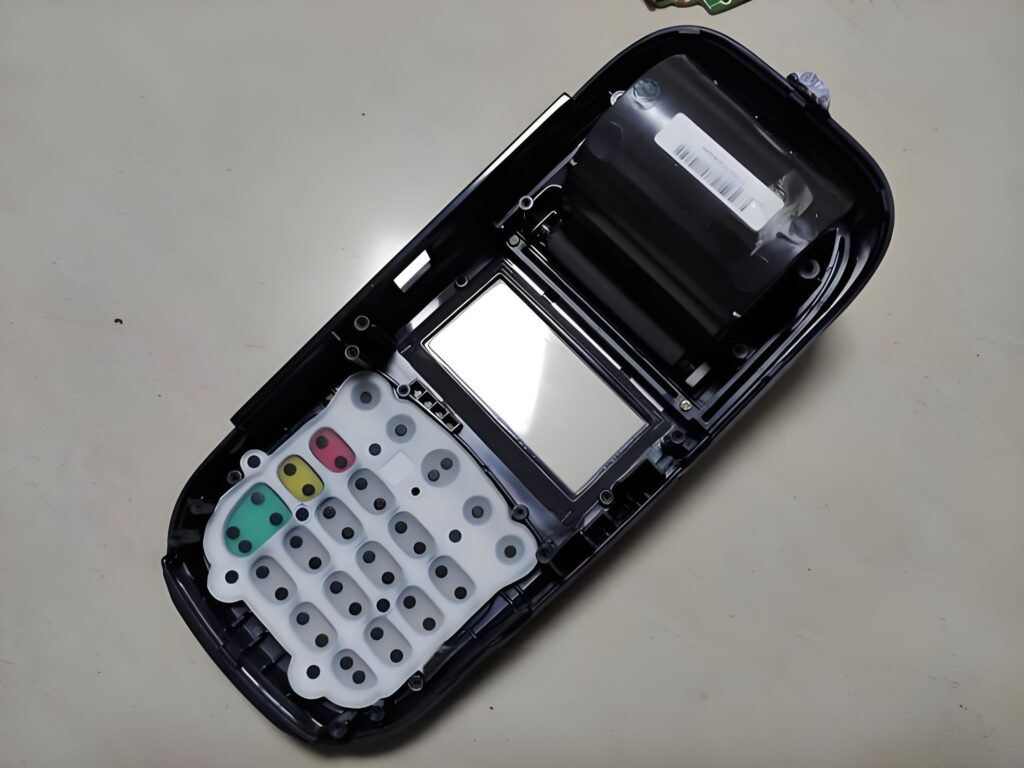

In some cases, domes are part of a metal dome keypad array. The array aligns multiple domes at once.
For high-volume production, tape and reel packaging is common. Domes arrive pre-oriented. Pick-and-place machines mount them onto the PCB efficiently.
The PCB itself must be designed for dome contact. Pad shape and surface finish matter. Smooth, plated pads support reliable electrical contact.
After mounting, a spacer or film layer controls travel distance. This ensures the dome snaps correctly and avoids over-compression.
Proper mounting helps ensure:
- Stable electrical contact
- Consistent tactile feedback
- Long service life
EBest Circuit (Best Technology) provides guidance on mounting methods. This helps smartphone manufacturers reduce risk during assembly and testing.
What are benefits of metal dome for smartphone switches?
Metal dome switches bring a range of benefits to smartphone applications. These benefits affect both user experience and manufacturing efficiency.
One major benefit is tactile confidence. Users feel a clear response. This reduces input errors and improves satisfaction.
Another benefit is reliability. Metal domes handle millions of presses. This supports long product life, even in heavy-use phones.
Metal domes also support compact design. Their thin profile fits modern smartphone layouts. Designers gain more freedom with internal space.
Consistency is another strength. Each press feels similar. This uniformity builds a premium impression.
Manufacturing efficiency improves as well. Metal domes integrate with automated processes. This reduces labor cost and improves yield.
Key benefits include:
- Clear and stable tactile response
- Long mechanical life
- Thin structure for slim phones
- Consistent button feel
- Efficient assembly support
EBest Circuit (Best Technology) designs metal domes to maximize these benefits. Each product is optimized for smartphone environments.
How to ensure metal dome quality for smartphone switches?
Ensuring metal dome quality for smartphone switches starts with material control. High-grade stainless steel is essential. It provides stable spring behavior.
Forming precision is also critical. The dome shape must be accurate. Small variations affect snap force and feel.
Surface treatment matters. Clean plating improves contact reliability. It also protects against corrosion.
Testing is a key step. Domes should be tested for force, travel, and life cycle. Consistent results show good process control.
Quality assurance continues through packaging. Proper packaging prevents deformation during transport. Tape and reel formats help maintain dome shape.
Supplier experience plays a role. A manufacturer with deep knowledge understands smartphone requirements. This reduces risk during production.
EBest Circuit (Best Technology) follows strict quality systems. Each batch is inspected. Samples are tested before shipment. This ensures reliable performance in smartphone applications.
Conclusion:
Metal dome switch for smartphone plays a vital role in modern phone design. It provides clear tactile feedback, stable performance, and long life. Compared with rubber dome switch designs, metal domes offer sharper response and better durability.
For more information or technical support, contact EBest Circuit (Best Technology) at sales@metal-domes.com
