What is a dome array?

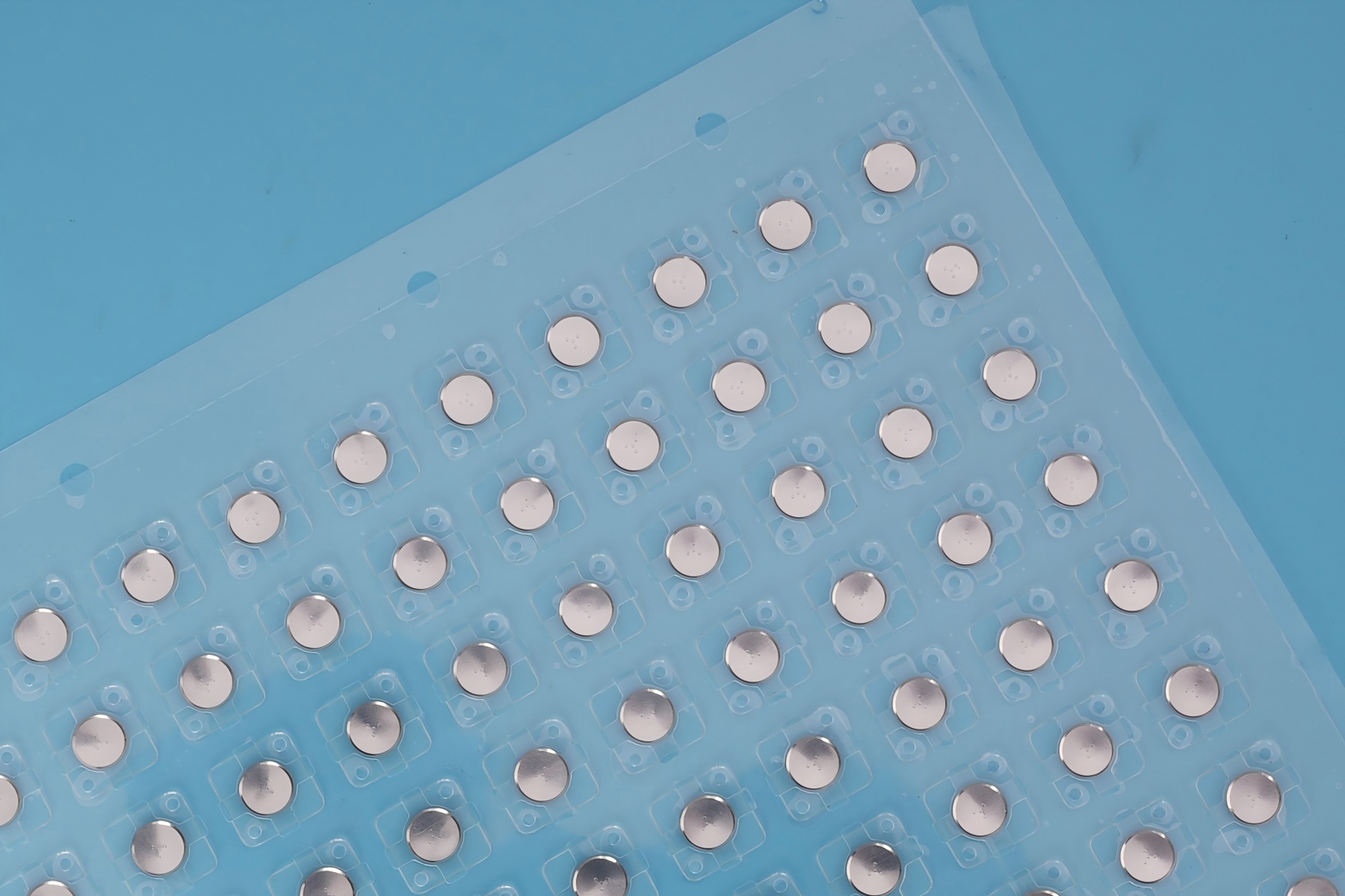

Dome array is a thin sheet—often made of PET or polycarbonate—that holds metal domes in fixed positions. These domes are precisely placed over printed circuit board (PCB) contact points. When pressed, the dome makes an electrical connection, then bounces back to its original shape.
The structure is simple, but it solves several engineering problems at once: responsiveness, durability, and alignment. In low-volume applications or prototypes, dome arrays also offer flexible customization options without driving up costs. They eliminate the need to manually align each dome, which saves time and ensures accuracy.
Why choose a metal dome array?
First, the feel. Users often judge a device by its feedback. With the sharp, tactile response of a dome array, every press feels intentional and satisfying. That crisp “snap” tells you the action is complete.
Next, the durability. High-quality metal domes can last for over a million cycles. That means fewer replacements, lower maintenance, and stronger customer satisfaction.
Then there’s the ease of integration. In contrast to loose domes, a dome array is much easier to handle and install. You get repeatable, predictable results without tedious alignment.
And finally, it keeps your design clean and compact. A metal dome array fits well within tight spaces, making it ideal for today’s miniaturized electronics.
Where are dome arrays used?
Let’s look at a few examples:
- Medical Devices: Dome arrays in medical keypads ensure precision.
- Consumer Electronics: Quick response, long life, and good feel are all must-haves.
- Industrial Equipment: In rugged environments, durability matters. Dome arrays are sealed and strong.
- Automotive Controls: The buttons on your dashboard often use snap domes for that clean, crisp click.
- Home Appliances: Microwaves, washing machines, and even electric toothbrushes use dome arrays for their user interfaces.
Their usage is so broad because they provide a consistent and comfortable interaction wherever they’re placed.

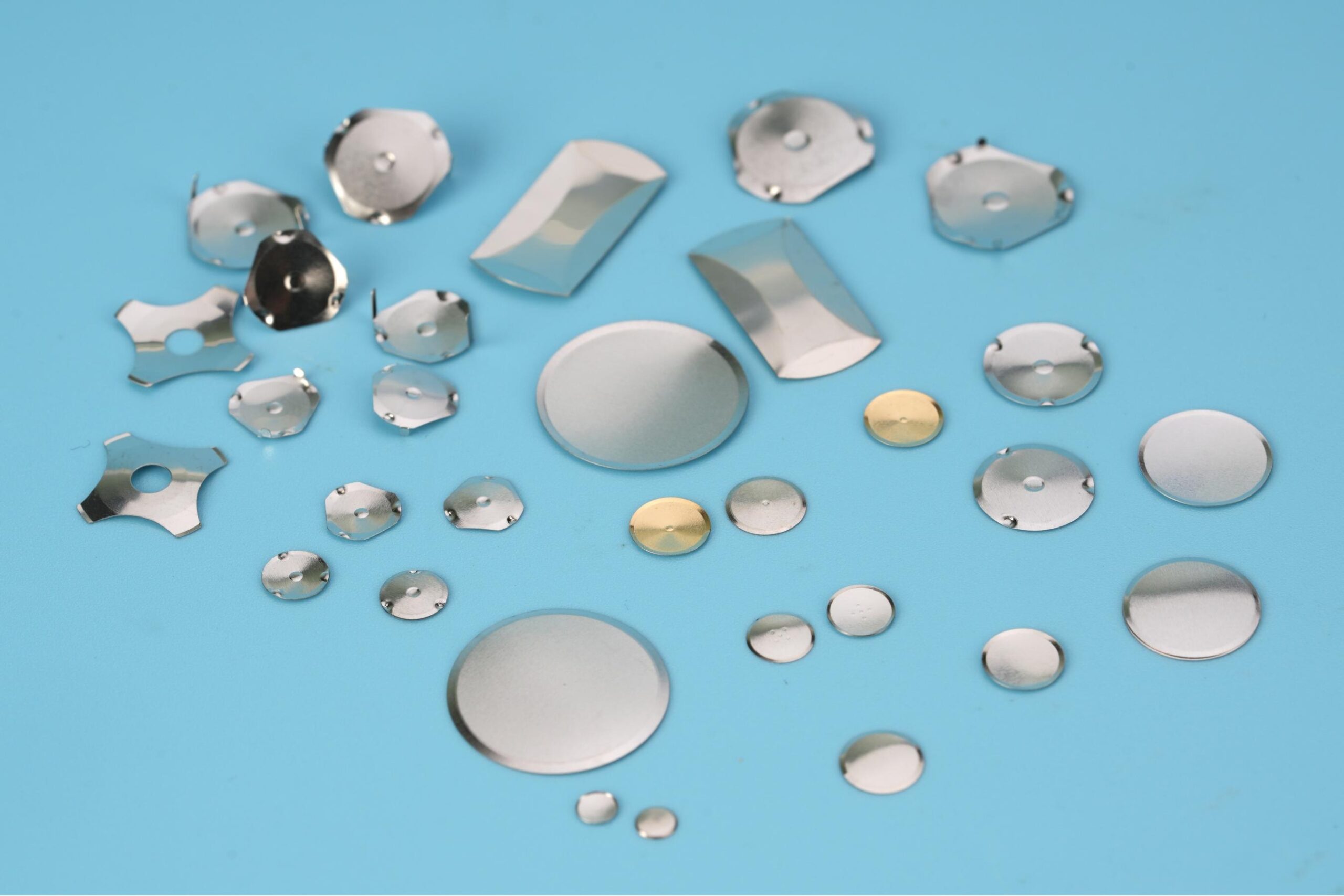

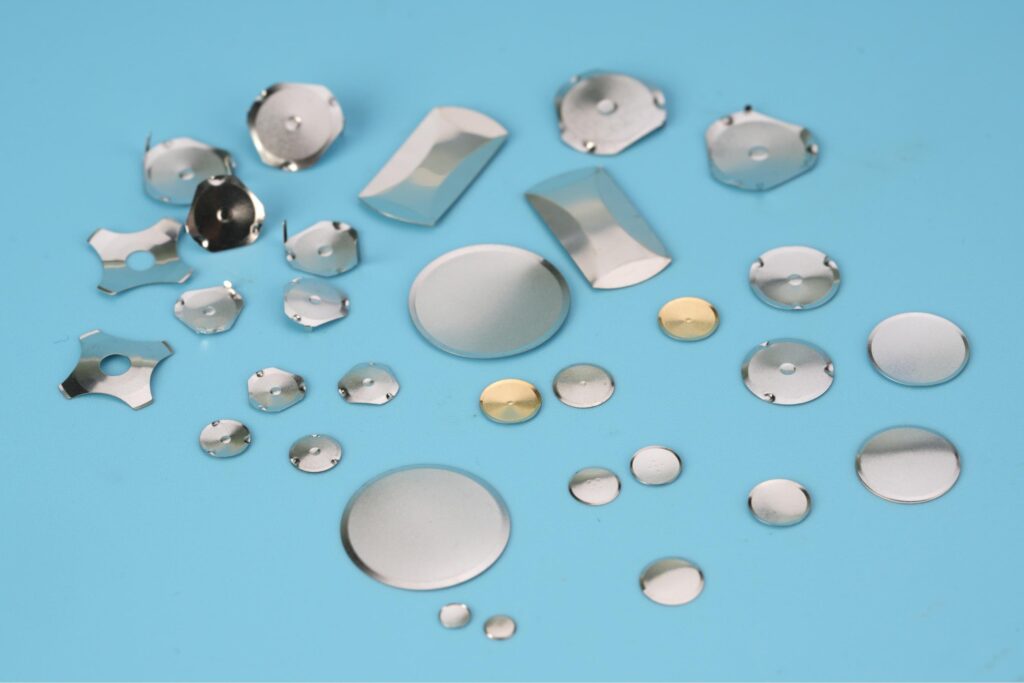

What are the different metal dome shapes?
Not all metal domes are the same. The shape directly affects how it feels, how much force is needed to activate it, and how long it will last.
Here are some popular types:

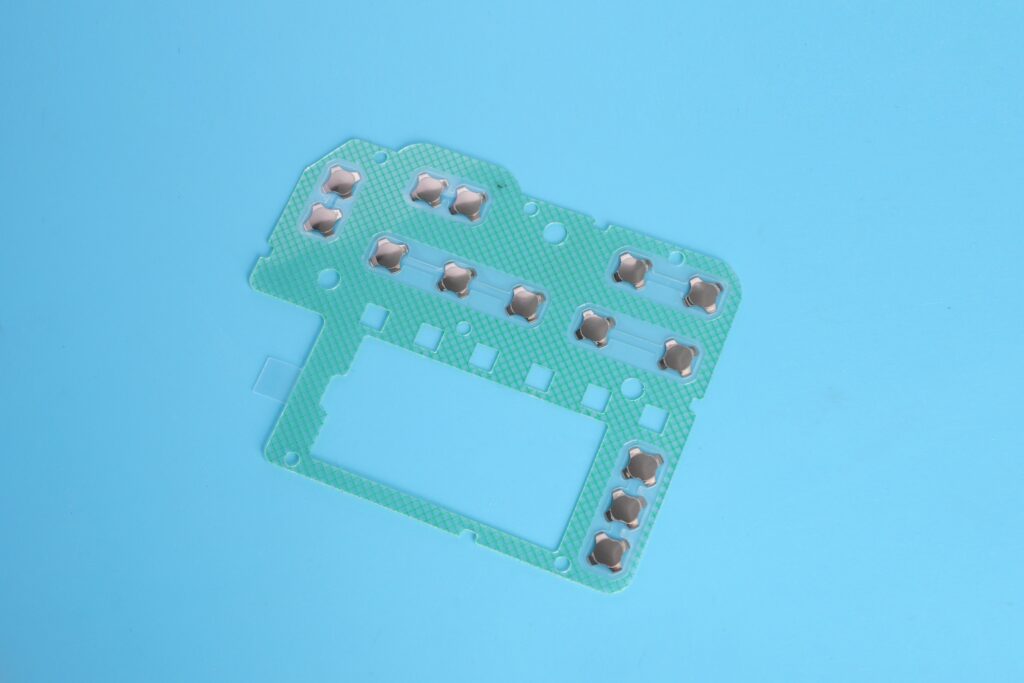

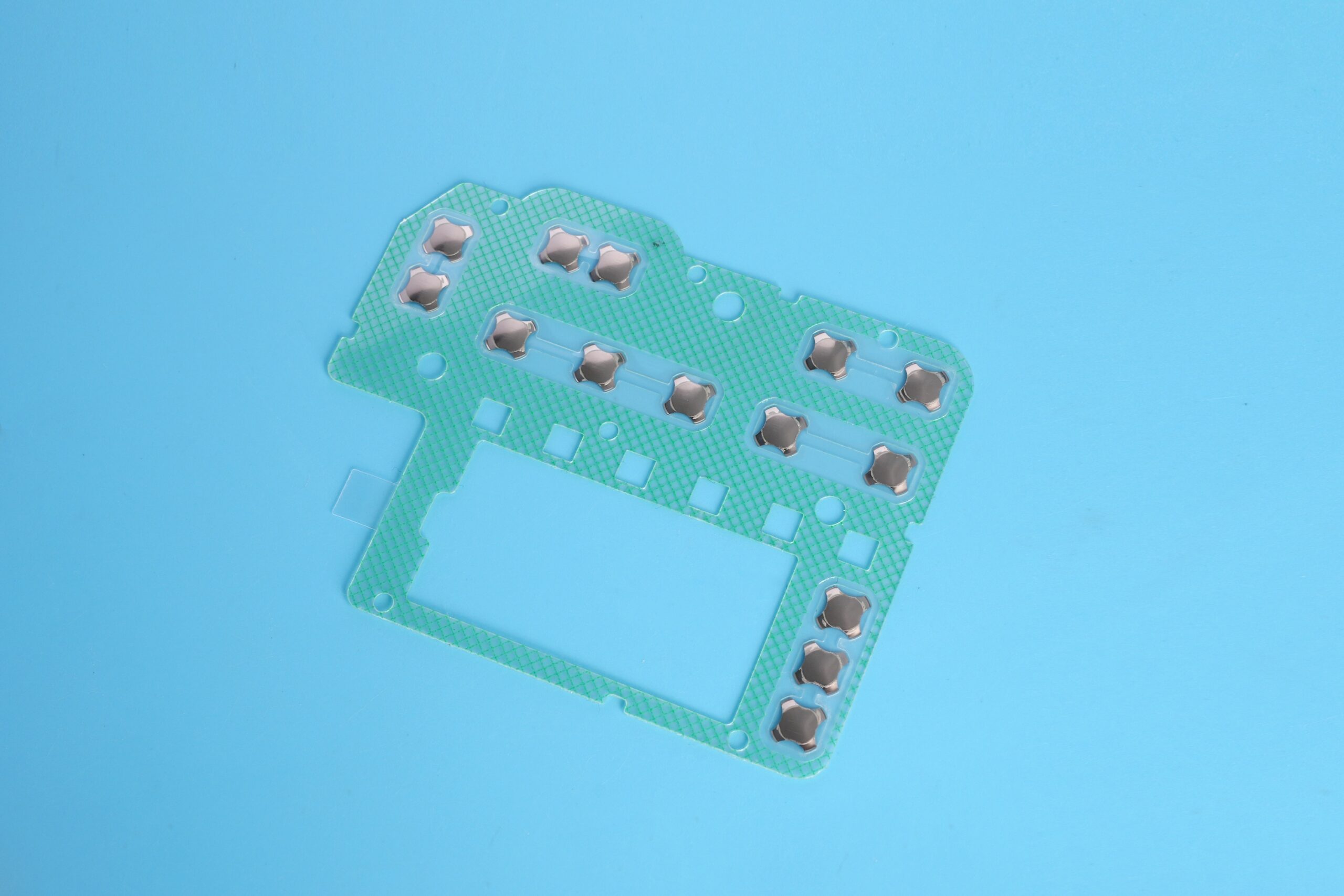

- Four-Leg Dome: This is one of the most widely used dome shapes. It offers high stability, excellent feedback, and uniform pressure distribution. Great for general-purpose applications.
- Triangle Dome: Ideal for tight layouts. It provides decent feedback and is usually smaller, making it suitable for compact devices.
- Round Dome: Round domes are known for their strong tactile snap and smooth feel. They often deliver a very defined “click” sensation.
- Oval Dome: These are longer and can cover wider contact areas. Often used when button placement is spaced out or irregular.
Each dome shape brings its own benefits, and the right choice depends on the feel you’re aiming for and your product’s design space.
What is a snap dome switch?
Snap dome switch is a type of momentary contact switch. It consists of a metal dome mounted on a PCB or inside a dome array sheet. When you press the dome, it collapses, touches the circuit, and completes the connection.
As soon as you release it, the dome returns to its original shape, and the connection breaks. This gives you that satisfying tactile feedback.
Snap dome switches are prized for three reasons:
- Tactile Precision: That sharp response makes it feel great to use.
- Long Life: Many rated up to or beyond 1 million actuations.
- Clean Integration: Fits in tight spaces and works with flexible layouts.
Which dome shape feels best?
Generally, round domes give the most satisfying snap. They offer that strong tactile response many users love. But they take up more space than triangular domes.
Four-leg domes offer balance. They’re used when you need stability and crisp action. These are often considered the “gold standard” for industrial applications.
On the other hand, triangle domes and oval domes work better in tight layouts but may feel softer. It depends on your use case.
The good news? Best Technology offers free samples, so you can feel the difference for yourself before making a decision.
Can metal dome arrays be customized?
Absolutely—and this is where small-batch or low-volume projects can shine.
At Best Technology, we don’t believe one-size-fits-all works for everyone. That’s why we offer full customization, even in small volumes. You get to choose:
- Dome shape and size
- Actuation force
- Dome placement and layout
- Sheet material and adhesive
- Contact surface options
- Tactile feel level
You can even adjust feedback, travel, and force to match user preferences. Whether you’re building a prototype or launching a niche product, customization makes a difference.
Why use a metal dome array in switches?
Metal dome array is simply better for specific tasks. Here’s why it wins:
- Consistency: Every dome is placed perfectly. It guarantees stable performance from unit to unit.
- Speed of Assembly: Especially in low-volume production, it saves time and cuts labor. It’s faster to install one pre-made array than placing individual domes.
- Tactile Feedback: The “click” is more than a sound. It’s reassurance. That feedback builds user trust and helps reduce errors.
- Cost Efficiency: When you consider longevity, assembly ease, and user satisfaction, the dome array often pays for itself.
Whether you’re designing a rugged industrial controller or a sleek smart device, dome arrays deliver where it counts.
Conclusion:
Metal dome arrays provide a satisfying tactile feel for electronic applications. From their structure and customization flexibility to their use in medical, industrial, and consumer devices, these components are built for performance.
Whether you’re working on a compact remote control or a rugged control panel, dome arrays offer a dependable, space-saving solution with clear feedback and long life.
At Best Technology, we specialize in providing high-quality metal dome arrays tailored to your exact needs—even for low-volume production. With fast lead times, and free samples to test before committing. Reach out to us at sales@metal-domes.com
