The 4 leg snap dome is a metal dome that is usually used to connect membrane switches and circuit boards. It has four contact points and can be firmly soldered to the circuit board to ensure good electrical connection and mechanical stability. This design makes it widely used in electronic devices that require high reliability and frequent operation.
What is a 4 leg snap dome?

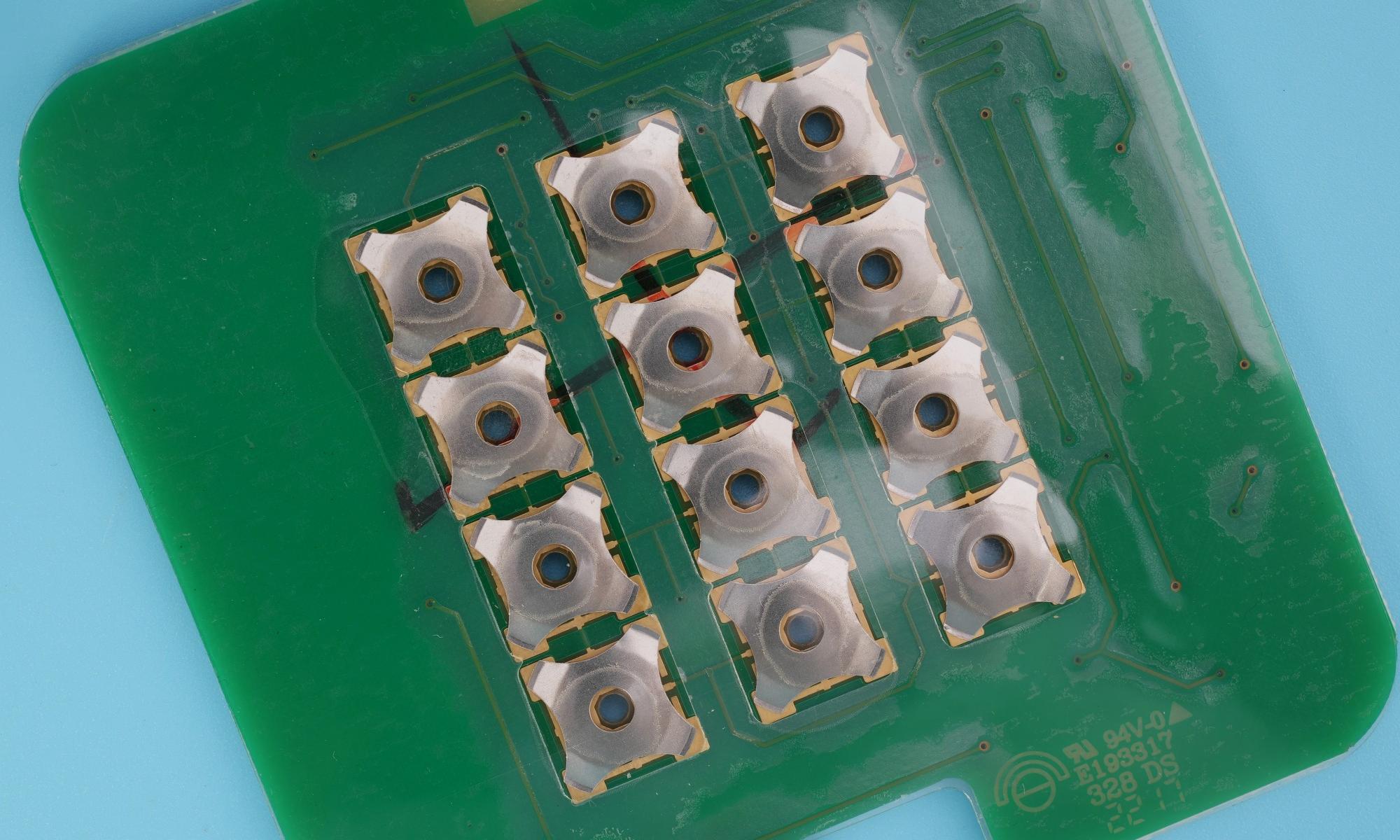

A 4 leg snap dome is a circular, tactile metal dome with four feet (or legs) that extend outward from the center. These legs allow it to sit securely on a printed circuit board (PCB) without shifting. When pressed, the dome “snaps” downward, creating a tactile response and completing a circuit. It instantly gives users that satisfying click — proof that the signal was successfully sent.
Unlike adhesive domes or domes without legs, these stay firmly in place and don’t slide during assembly. That makes them a reliable solution for high-use electronics. You’ll find them in consumer electronics, industrial panels, and anywhere user touch control matters.
What materials are commonly used for 4 leg snap domes?
The performance of a metal dome starts with its material. Most 4 leg snap domes are made from stainless steel. This material offers several advantages — it’s strong, corrosion-resistant, and maintains shape after thousands of actuations.
To improve conductivity, many manufacturers apply surface treatments. These can include nickel plating, gold plating, or silver plating, depending on the application. Gold is highly conductive and ideal for sensitive medical or aerospace systems. Nickel provides solid conductivity at a lower cost, while silver is often used for high-end or custom projects.
Some snap dome switch models may also use polyester overlay films for extra protection or improved sealing in harsh environments. However, the core structure remains the stainless-steel tactile dome, ensuring click performance remains strong.
What are the types of snap domes?
Snap domes come in a variety of shapes and leg configurations. Each has its own benefits and uses:
- 4 Leg Snap Domes: Known for balance and steady tactile force. They’re widely used in snap dome switch boards for their consistent performance.
- 3 Leg Domes: More compact and slightly more flexible, often used in tight spaces.
- 2 Leg Domes: These are minimal and require adhesive backing or overlay layers to stay in place.
- Cross Domes (X-shaped): Unique cross-style domes for specialty applications where specific directional force is needed.
- Oval Domes: Designed for narrow buttons or small enclosures.
- Triangle Domes: Less common, but used where unique force feedback is needed.
Of these, the 4 leg snap dome is the most balanced. It doesn’t tilt or wobble. It clicks smoothly. And it resets to its original position without fail.
What are the unique features of 4 leg snap domes?
4 leg snap domes are engineered for high-performance, repeated use. Here’s what makes them stand out:
- Strong Tactile Feedback: That crisp, audible “click” gives users instant assurance that their action worked.
- Excellent Centering: The four legs stabilize the dome’s position on the board, preventing misalignment.
- Precision Force Response: Available in various actuation forces — from light touch to firm press — to fit the exact feel required.
- Wide Compatibility: Suitable for various 4 leg snap dome circuit board layouts, whether for handheld devices or rugged equipment.
- High Durability: Many rated up to one million cycles or more, depending on the use and design.
- Non-Adhesive Mounting: No extra glue or tape needed to stay in place — the legs do all the work.
In the world of metal domes, these tactile domes offer unmatched balance between feel, functionality, and design simplicity.
How do 4 leg snap domes compare to other snap domes?
- Versus 3 Leg Domes: The fourth leg offers better balance. While 3 leg domes can be more compact, they sometimes shift during assembly.
- Versus Flat or 2 Leg Domes: 4 leg domes stay put. No need for adhesives or overlays to hold them down. Plus, they deliver a cleaner and more consistent click.
- Versus Adhesive Domes: Adhesive domes are great for cost-saving, but the sticky layer can wear off over time. 4 leg domes don’t have that issue.
In short, 4 leg domes win in terms of stability, reusability, and user satisfaction. For demanding environments or applications requiring reliable tactile feedback, they’re hard to beat.
What are the potential drawbacks of 4 leg snap domes?
- Slightly Larger Footprint: The four legs take up a bit more space on the board compared to domes without legs.
- Manual Placement: If not automated, placing the domes during assembly can take more time than adhesive domes.
- No Surface Adhesion: In environments with strong vibrations, if not properly enclosed, a loose dome may shift.
However, these drawbacks are rare and manageable. With proper PCB design and layout, 4 leg snap dome boards deliver top-tier reliability with few trade-offs.
How long is the lifespan of 4 leg snap domes?
Durability is one of the greatest strengths of a tactile dome switch, especially the 4 leg variant. Most are designed to last over 1 million actuations. Some go well beyond that when used in clean, low-moisture environments.
The material and design contribute greatly to lifespan:
- High-grade stainless steel resists fatigue.
- The dome always returns to its exact shape after every click.
- Surface coatings like gold or nickel can further prevent oxidation and wear.
Proper PCB design, dome alignment, and protective overlays will boost life even more. That means less need for repairs or replacements.
Can 4 leg snap domes be used in small-sized devices?
Absolutely. While the four legs do require a bit more PCB space, 4 leg snap dome printed circuit boards can still be designed for compact devices. The key is in smart layout and integration.
BEST Technology offer a wide range of sizes, from tiny 5mm domes up to larger versions. You can choose actuation forces and sizes based on your product needs.
Today, you’ll find these domes in:
- Wearables like fitness bands and smartwatches
- Remote controls with small but responsive buttons
- Portable medical devices
- Compact industrial tools
- Game controllers and more
Even in tight spaces, engineers rely on the tactile feedback and accuracy of 4 leg domes. When every press matters, these switches deliver.
Conclusion:
A 4 leg snap dome is a powerful, precision component that brings tactile satisfaction to any circuit board. With stainless steel strength, four-point stability, and lasting click response, these metal domes offer unbeatable feedback and reliability.
Whether you’re designing a medical interface, consumer remote, or control panel, these tactile domes get the job done — again and again.
Want to learn more or get started with custom dome solutions? Reach out to us at sales@metal-domes.com
