What is a car key fob metal dome?
A car key fob metal dome is a small, precisely formed stainless steel component that functions as a tactile switch inside a key fob. When a user presses a button on the fob, the metal dome collapses and makes electrical contact with the PCB below. This action sends a signal to the vehicle, enabling functions such as locking, unlocking, trunk release, or panic alerts.
Unlike traditional rubber-based switching elements, metal domes provide a crisp tactile response. This “click” feedback confirms that the button press has been successfully registered. For automotive applications, this reliability is essential, especially when users operate the fob without visual confirmation.

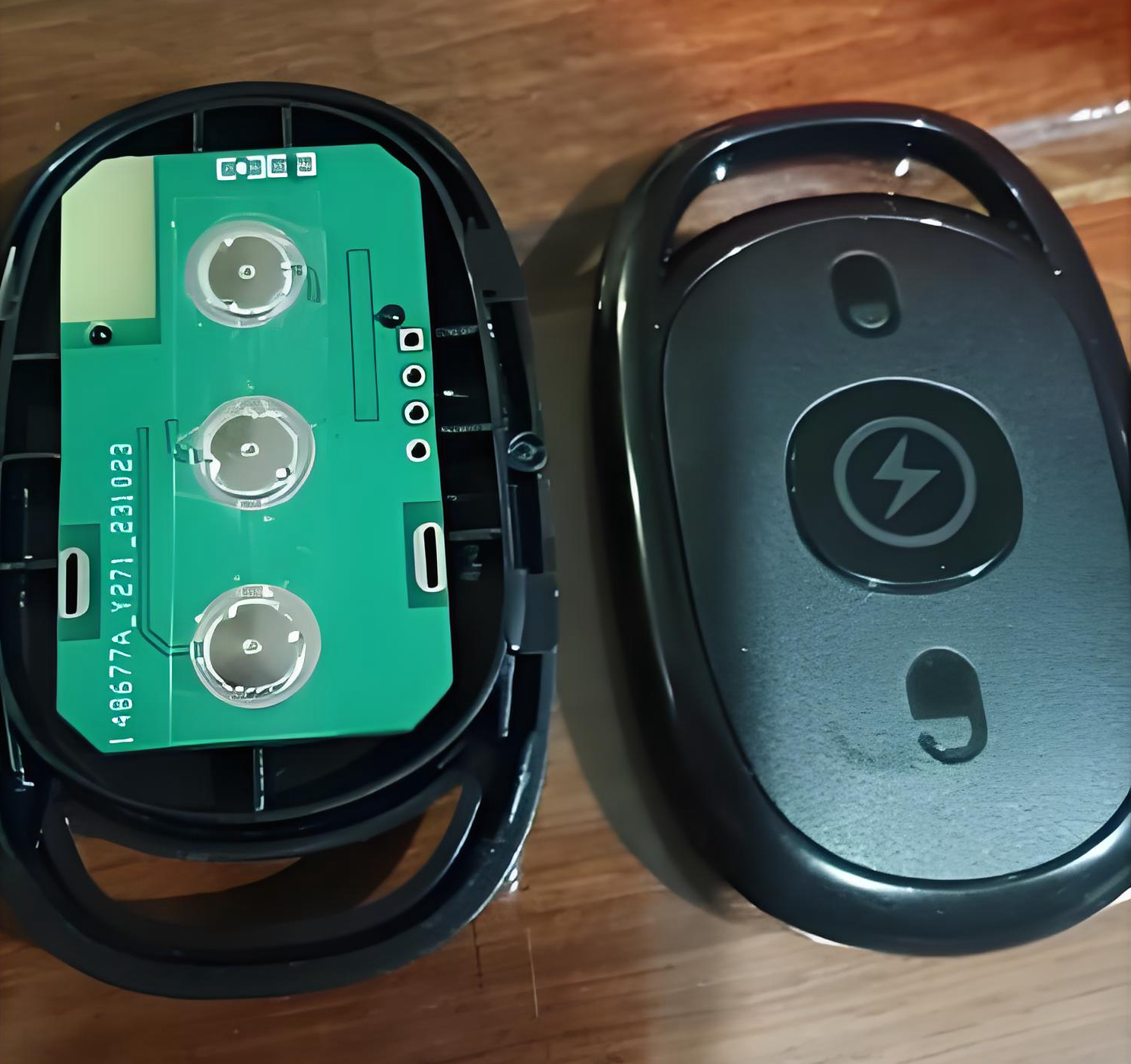

In most designs, the metal dome is placed over a conductive pad on the PCB. A graphic overlay or rubber keypad sits above it, creating a layered structure that balances protection, usability, and durability. The dome itself is engineered with tight tolerances to ensure consistent actuation force and long operational life.

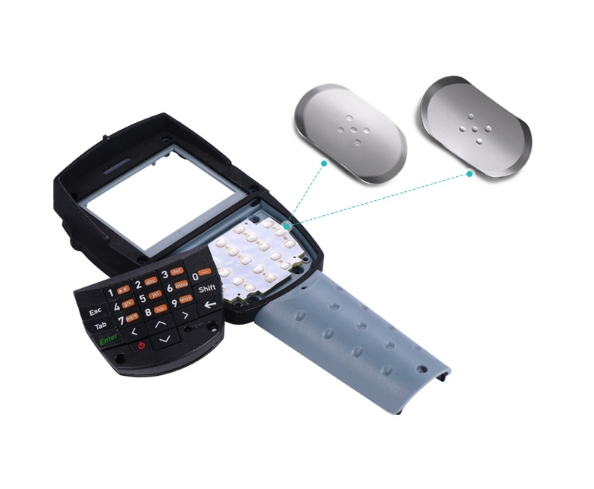

Car key fob metal domes are typically integrated into membrane switch assemblies or dome arrays. These configurations simplify assembly and improve alignment accuracy. With advancements in manufacturing, modern domes are thinner, more responsive, and highly resistant to environmental stress.
Why do car key fobs use metal domes?
Metal domes are widely used in car key fobs because they deliver a dependable combination of tactile feel, electrical performance, and long-term durability. In automotive electronics, every component must perform consistently under repeated use and varying environmental conditions.
One of the primary reasons is tactile feedback. A metal dome produces a clear snap action when pressed. This gives users confidence that the command has been executed, even without looking at the device. Rubber domes, in contrast, often feel soft and less precise.
Another important factor is electrical reliability. Metal domes create a clean and stable contact when actuated. This reduces the risk of signal failure or intermittent connections, which can be frustrating in real-world use.
Metal domes also support compact designs. Car key fobs continue to shrink in size, and metal domes allow engineers to design low-profile switch systems without sacrificing performance.
Key advantages include:
- Consistent tactile feedback across millions of cycles
- Fast response time with minimal signal delay
- Compact and lightweight structure
- Excellent compatibility with automated assembly processes
In addition, metal domes can be packaged in tape and reel format. This enables high-speed SMT placement, improving manufacturing efficiency and reducing labor costs. For automotive production lines, this level of scalability is highly valuable.
What is the typical lifespan of car key fob metal domes?
The lifespan of a car key fob metal dome is one of its strongest advantages. High-quality domes are designed to withstand extensive repeated use without losing their tactile performance or electrical conductivity.
In most cases, standard metal domes offer a lifespan ranging from 500,000 to over 1,000,000 actuations. Automotive-grade domes can exceed this range, depending on material quality, design structure, and environmental exposure.
Several factors influence the lifespan:
- Material thickness and hardness
- Dome geometry and forming precision
- Surface plating quality
- Operating environment conditions
For example, stainless steel domes with gold or nickel plating tend to provide better corrosion resistance and longer cycle life. Proper sealing within the key fob housing also helps extend durability.
Compared to rubber dome switches, metal domes maintain their tactile feel over time. Rubber materials may degrade, soften, or lose elasticity after prolonged use. Metal domes, however, retain their snap ratio and actuation consistency much longer.
Manufacturers like Best Technology focus on precision forming and strict quality control. This ensures that each dome delivers stable performance throughout its lifecycle. With optimized design, users can expect years of reliable operation from a single key fob.
Are car key fob metal domes waterproof or dustproof?
Car key fob metal domes themselves are not inherently waterproof or dustproof. However, when integrated into a complete switch assembly, they can achieve excellent environmental resistance.
Protection depends on the overall design of the key fob. Engineers typically combine metal domes with sealing layers such as:
- PET or polyimide films
- Adhesive layers
- Rubber keypads or silicone covers
These layers create a barrier that prevents water, dust, and debris from reaching the internal components. When properly designed, the entire assembly can meet IP-rated protection standards.
For example, a sealed membrane switch with metal domes can resist moisture exposure from rain or accidental spills. Dust protection is also enhanced, ensuring consistent performance even in harsh environments. It is important to note that poor sealing can compromise performance. Water ingress may lead to corrosion or short circuits. Therefore, high-quality design and manufacturing are critical.
Best Technology integrates advanced sealing techniques into its dome arrays. This approach enhances durability while maintaining excellent tactile response, making it suitable for automotive applications.
Can I replace the metal dome in my car key fob?

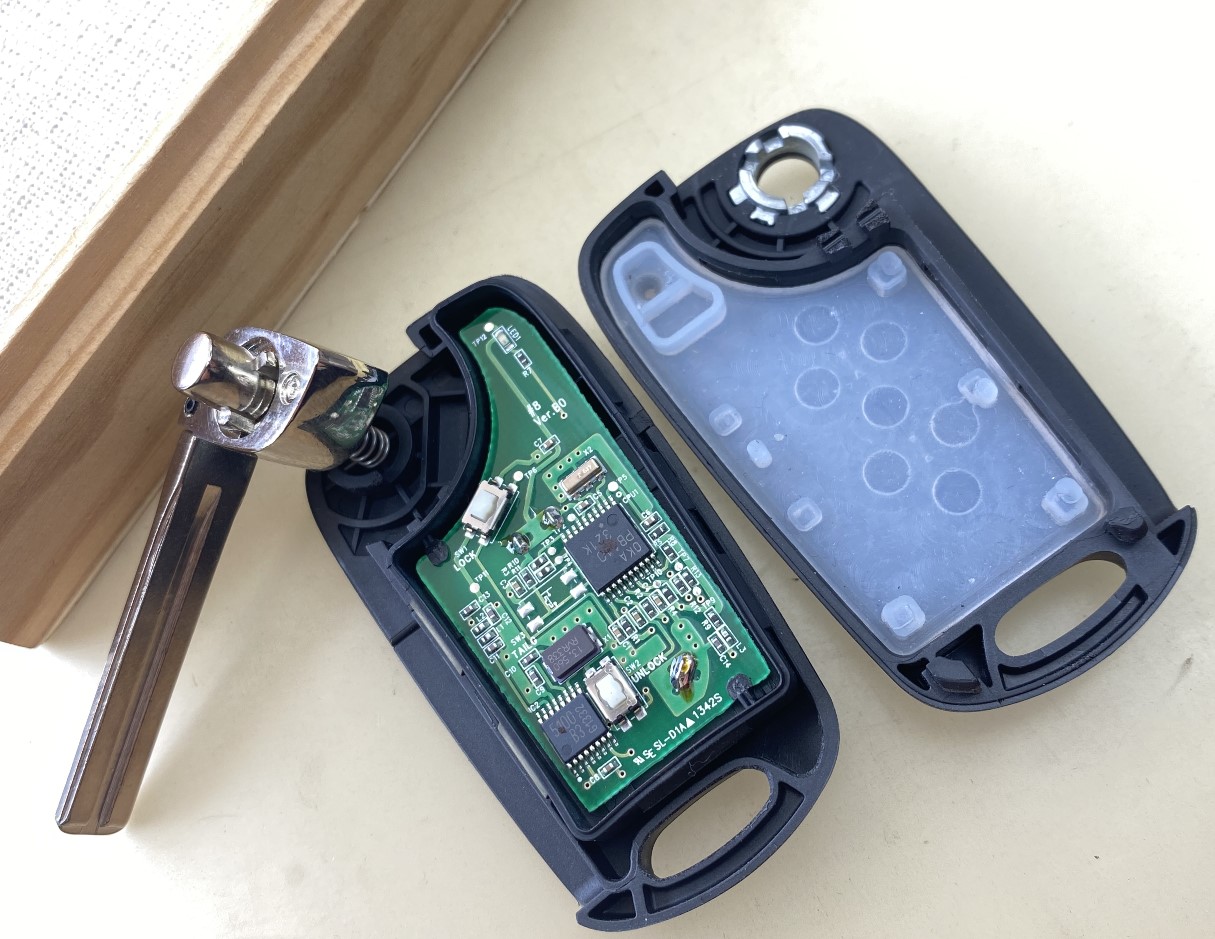

Replacing a metal dome in a car key fob is possible, but it requires careful handling and the right tools. The process is delicate because the dome is a small and sensitive component.
In most cases, the key fob must be opened without damaging the housing. Once inside, the damaged dome can be removed and replaced with a new one of the same size and specification.
However, there are some challenges:
- Precise alignment is required for proper function
- Adhesive layers may need replacement
- Static or contamination can affect performance
From a manufacturing perspective, using dome arrays simplifies replacement and assembly. Pre-positioned domes ensure accurate placement and reduce the risk of misalignment. If replacement is necessary, sourcing high-quality domes is essential. Low-quality components may lead to inconsistent performance or early failure.
What actuation force is best for car key fobs?
Actuation force plays a key role in user experience. It determines how much pressure is required to press the button and activate the switch. For car key fobs, the ideal actuation force typically falls within the range of 160g to 280g. This range provides a balance between ease of use and tactile feedback.
A lower force makes the button easier to press, but it may increase the risk of accidental activation. A higher force reduces accidental presses but may feel stiff or uncomfortable.
Here is a simple comparison:
| Actuation Force | User Experience | Application Suitability |
|---|---|---|
| 100g–160g | Very light, less tactile feedback | Not ideal for key fobs |
| 160g–280g | Balanced, clear click feel | Best for car key fobs |
| 280g–400g | Firm, strong feedback | Suitable for industrial use |
The optimal choice depends on design goals and user preferences. Automotive brands often select a mid-range force to ensure comfort and reliability. Best Technology offers customizable actuation force options. This allows designers to fine-tune the tactile experience based on specific requirements.
Do car key fob metal domes resist high and low temperatures?
Car key fobs are exposed to a wide range of temperatures. They may be left inside vehicles during hot summers or cold winters. Metal domes used in these devices are designed to handle such conditions.
High-quality metal domes can typically operate within a temperature range of -40°C to +85°C. Some automotive-grade domes can withstand even more extreme conditions. Temperature resistance depends on material selection and surface treatment. Stainless steel domes with proper plating maintain their mechanical properties across temperature variations.
Key performance aspects include:
- Stable actuation force across temperature changes
- Resistance to thermal expansion and contraction
- Protection against oxidation and corrosion
Rubber-based switches may become stiff in cold conditions or degrade under heat. Metal domes maintain consistent performance, making them more suitable for automotive use. With proper design, metal dome assemblies continue to deliver reliable tactile feedback regardless of environmental conditions.
Are automotive-grade metal domes different from standard ones?
Yes, automotive-grade metal domes are designed with stricter requirements compared to standard domes. The automotive environment demands higher reliability, durability, and consistency.
Automotive-grade domes undergo more rigorous testing, including:
- Extended lifecycle testing
- Temperature cycling
- Humidity and corrosion resistance testing
They are also manufactured with tighter tolerances. This ensures consistent performance across large production volumes. Here is a comparison:
| Feature | Standard Metal Dome | Automotive-Grade Metal Dome |
|---|---|---|
| Lifespan | Up to 1 million cycles | Often exceeds 1 million cycles |
| Temperature Range | Moderate | Wide (-40°C to +85°C or more) |
| Quality Control | Standard inspection | Strict automotive standards |
| Reliability | Good | Exceptional |
Automotive-grade domes are often used in safety-critical or high-reliability applications. While they may have a higher cost, the performance benefits justify the investment. Best Technology manufactures metal domes that meet demanding automotive requirements. Their focus on precision and quality ensures consistent results across applications.
Can I customize metal domes for my car key fob design?
Customization is one of the key advantages of metal dome technology. Designers can tailor various parameters to match specific product requirements.
Common customization options include:
- Dome shape (round, triangle, four-leg)
- Diameter and height
- Actuation force
- Material thickness
- Surface plating
These variables allow engineers to optimize both tactile feel and electrical performance. Custom domes also support unique key layouts and compact designs. For example, a smaller key fob may require low-profile domes with precise alignment. A premium design may prioritize a sharper tactile response.
Best Technology provides OEM and ODM services for custom metal domes. Their engineering team works closely with clients to develop solutions that meet both functional and aesthetic goals. Customization also extends to packaging. Tape and reel packaging supports automated assembly, improving efficiency and consistency in production.
Do metal dome arrays work for car key fob PCBs?
Metal dome arrays are highly effective for car key fob PCBs. Instead of placing individual domes manually, arrays integrate multiple domes into a single adhesive sheet.
This approach offers several advantages:
- Accurate dome positioning
- Faster assembly process
- Reduced risk of misalignment
- Improved consistency across units
Dome arrays are especially useful for compact devices like key fobs. They simplify the manufacturing process and enhance overall product quality. In high-volume production, arrays can be combined with automated pick-and-place systems. This significantly increases efficiency and reduces labor costs.
Best Technology specializes in high-precision metal dome arrays. Our products achieve tight alignment tolerances and stable performance over extended use. For automotive applications, dome arrays provide a reliable and scalable solution that meets modern manufacturing demands.
Conclusion:
Car key fob metal domes play a critical role in delivering reliable and responsive user interaction. They provide clear tactile feedback, long lifespan, and stable electrical performance. Compared to alternative technologies, they offer superior durability and consistency.
As vehicle electronics continue to evolve, the demand for high-performance tactile components will only grow. Choosing the right metal dome solution ensures both user satisfaction and long-term reliability.
For more information or custom solutions, feel free to reach out: sales@metal-domes.com
