What is a Metal Dome Switch Array?
Metal dome switch array is a set of tactile domes arranged on an adhesive or polycarbonate sheet. Each dome acts as a small tactile switch. When pressed, it collapses and completes the circuit. When released, it returns to its original shape. This action offers a crisp and satisfying click.

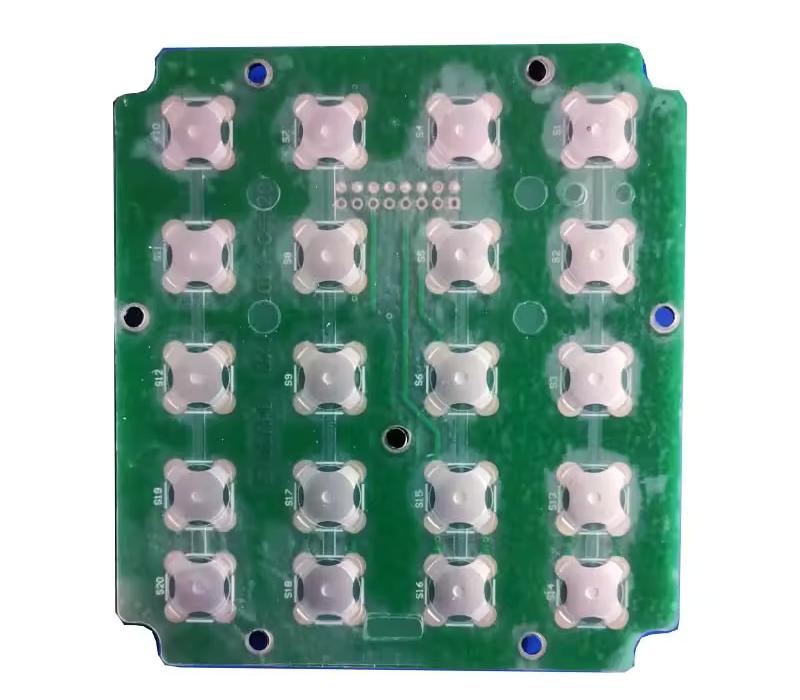

These domes are made of stainless steel. The shape and force level vary depending on the device. The most common shapes include round, four-leg, and triangle domes. Each shape creates a unique feedback sensation. The array layout depends on the keypad design. Devices like handheld testers, medical controls, industrial keypads, and consumer products use this structure.

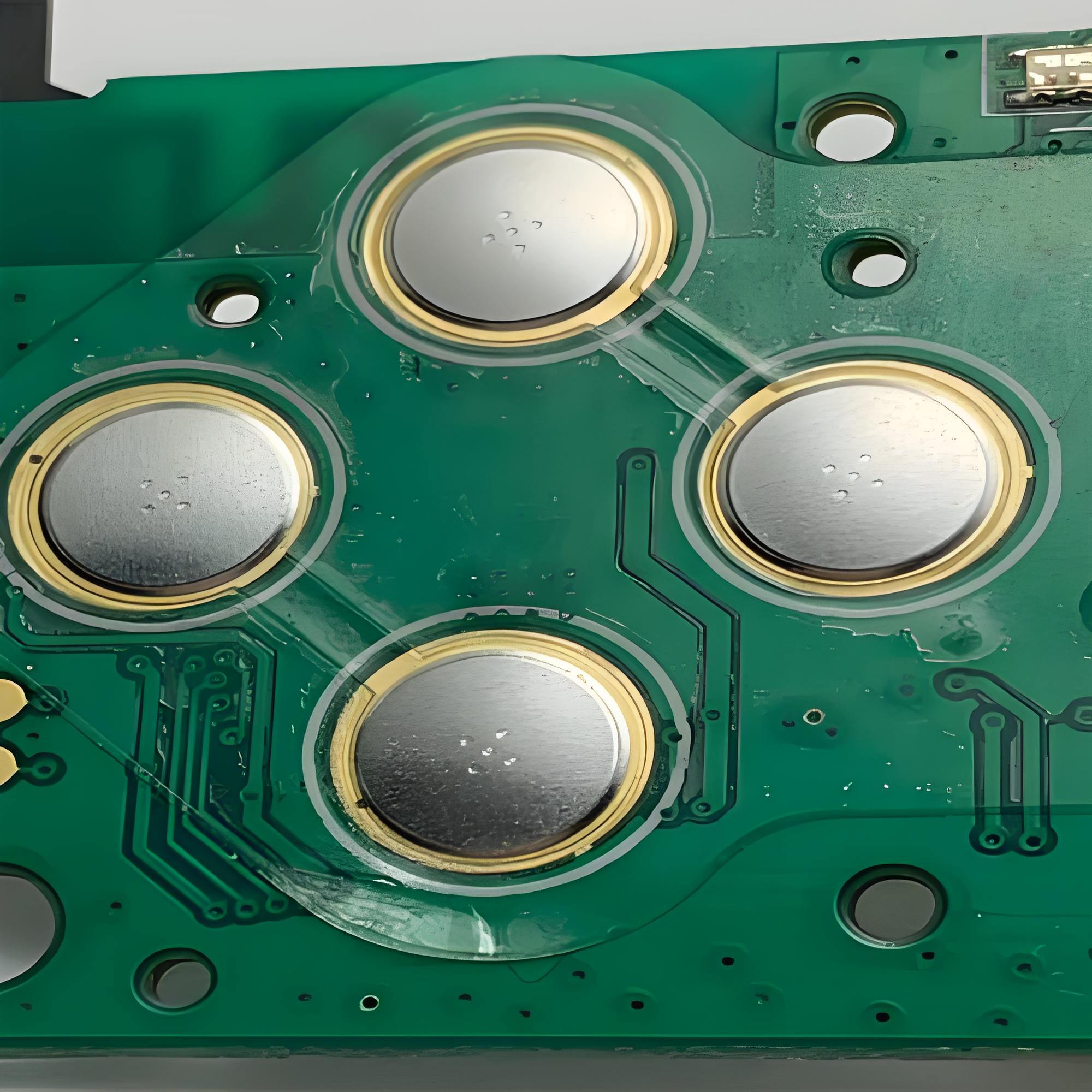

The dome sits on a lower circuit layer. When pressed, it bridges two contacts. When released, the circuit opens. This simple method gives a solid and reliable response.
Accuracy matters. High-end arrays can reach ±0.05 mm contact accuracy. This greatly improves sensitivity and reliability.
Another advantage is speed. Arrays allow machines to assemble keypads fast. They also provide better consistency than individual domes placed one by one. This makes production more efficient.
Better materials, tighter tolerances, and cleaner production have lifted overall quality. As a result, today’s domes offer longer life and more stable force curves than older designs.
Why Use a Metal Dome Array in Keypads?
Keypads need feedback. The crisp click helps users confirm actions with confidence. This reduces mistakes and boosts productivity. Even in dim light or noisy work areas, users can trust the tactile feel.
A metal dome array also helps devices stay stable over years of use. Many industries require long-term reliability. Industrial machines, medical tools, telecom devices, or outdoor equipment cannot fail often. The dome array structure handles heavy use well. It resists fatigue even when pressed thousands or millions of times.
Engineers also choose the metal dome array because it keeps the keypad thin. Many devices need compact layers. A dome array fits comfortably in slim profiles. It also maintains a firm tactile sensation even in ultra-thin keypads.
Another strong benefit is assembly speed. When domes come in an array, assembly lines work faster. This increases output while reducing human errors. It also reduces labor costs and improves product consistency.
In addition, the metal dome array stays clean. It is protected by top layers. Dirt and moisture have a harder time affecting the tactile feel.
Where Is a Metal Dome Keyboard Applied?
A metal dome keyboard is not a typical typing keyboard. Instead, it is a keypad with multiple tactile dome switches inside. These keyboards appear in many applications where durability, reliability, and tactile response matter.
They appear in industrial control panels. These environments require rugged components. Dust, vibration, and daily use cannot stop the device.
They appear in telecom equipment. Base stations, radio devices, and network tools often use a metal dome keyboard because the tactile feel helps technicians work faster.
Another major area is consumer electronics. Remote controls, gaming accessories, home appliances, and handheld devices use metal dome arrays. A metal dome keyboard gives users a rewarding press feel that boosts satisfaction.
In medical devices, precision matters. Doctors and nurses rely on reliable input. The metal dome array delivers stable performance even after long hours. It reduces false presses and improves accuracy.
Automotive panels also use metal dome arrays. Drivers need quick response and clear touch feedback. The dome structure performs well under different temperature ranges. It also holds up to frequent pressing.
Outdoor equipment benefits greatly too. From access control panels to rugged handheld devices, the dome array provides long-lasting performance under rain, sun, and cold.
What Makes a Metal Snap Dome More Durable?
A metal snap dome becomes durable through design, material quality, and precise manufacturing. Stainless steel gives the dome strength and elasticity. It helps the dome return to its shape after each press. High-grade material resists fatigue and corrosion. This ensures long-term stability.
The dome height and curvature shape also matter. A balanced curve distributes stress evenly. This makes the dome stronger. It can handle repeated deformation without breaking down. The dome’s thickness also influences durability.
Cleaning and polishing steps in manufacturing are crucial. These steps remove sharp edges or tiny defects. Any rough area can cause stress points.
Precision stamping tools shape each dome. High-end tools create consistent domes. Consistency means predictable tactile force. It also means better longevity.
The plating thickness can improve corrosion resistance. Some domes include special coatings that prevent oxidation. This is valuable in outdoor or humid environments.
Another key factor is how the dome is handled during assembly. Even a good dome can fail early if pressed incorrectly or contaminated with dust.
Manufacturers with strong quality control check domes at multiple stages. This ensures that only stable, reliable domes reach customers.
How Long Can a Snap Dome Switch Last in Real Use?
Snap dome switch can last a very long time. Many domes reach 1 million to 5 million cycles. Some high-performance domes go beyond that.
In office or home devices, domes may last decades. These applications involve lighter force and fewer presses. In industrial settings, the dome experiences more pressure.
Usage patterns matter. Heavy-handed pressing shortens life. Smooth, even pressure helps the dome last longer.
Environmental conditions also influence longevity. Heat, humidity, dust, and vibration affect the dome’s structure. However, well-designed domes withstand many conditions.
A metal dome switch array tested under strict quality systems ensures better durability. Advanced manufacturers test domes for fatigue, click force, resistance, and rebound speed.
When designed well and used properly, a snap dome switch remains reliable for years.
Which Factors Affect Metal Dome Switch Array Performance?
Several important factors shape the performance of a metal dome switch array. These factors influence sensitivity, durability, and user comfort.
First is dome size. Smaller domes feel sharper. Larger domes feel softer. The size affects tactile force and feedback strength.
Another factor is dome shape. Round domes offer smooth feedback. Four-leg domes give strong feedback with clear force return. Triangle domes work well in limited spaces.
Material thickness affects force. Thicker material raises force. Thinner material reduces force.
Placement accuracy is crucial. Misalignment reduces sensitivity. Precise arrays ensure consistent key feel.
The adhesive layer between the dome and the circuit also matters. High-quality adhesive keeps the dome stable and prevents shifting. This improves performance and prolongs life.
The environment influences performance as well. High humidity, dust, or high temperature can affect the array. Using sealed designs or protective layers helps maintain performance.
The circuit layer design matters too. Clean contact areas ensure stable conductivity. If the circuit layer is poorly designed, the dome response may weaken.
Finally, production cleanliness affects array performance. A clean environment prevents dust under the dome. Dust can reduce clarity of feedback.
By optimizing these factors, powerful and responsive metal dome arrays can be obtained.
Conclusion:
Metal dome switch arrays make devices more reliable, more responsive, and more enjoyable to use. Their tactile feel and long service life create strong value across industries. Whether used in a metal dome keyboard, a telecom device, a medical system, or an industrial panel, the dome array provides dependable feedback and smooth operation.
