What Are Metal Dome Control Panels?
Metal dome control panels are essential components in modern input systems. They consist of small, dome-shaped metal pieces embedded into a panel or membrane. When pressed, these domes collapse and create a tactile click.
Unlike mechanical switches, metal domes are compact and lightweight. They provide a consistent response even after millions of presses. These panels are widely used in keyboards, industrial machines, automotive dashboards, and medical devices. Their design allows for sleek, ergonomic interfaces without sacrificing durability.
The metal dome itself acts like a spring. Pressing it temporarily completes the circuit beneath the dome, triggering a signal. Releasing it returns the dome to its original shape.
Because of their flexibility, metal dome control panels can accommodate various design requirements. They can be incorporated into small, handheld devices or large industrial panels.
Why Choose Metal Dome Control Panels?
Metal dome control panels offer several advantages that make them a superior choice for both consumer and industrial applications.
- First, they provide excellent tactile feedback. This reduces errors, improves efficiency, and builds user confidence.
- Second, they are durable. Made from stainless steel or copper alloys, metal domes resist wear, corrosion, and fatigue. They can withstand millions of actuations, far more than most traditional switches.
- Third, they are compact and lightweight. This is especially important for portable electronics, where size and weight are critical.
- Fourth, they are energy-efficient. Metal dome switches require minimal actuation force, reducing strain on users and power consumption in electronic systems.
- Fifth, metal dome panels simplify assembly and maintenance. Pre-assembled arrays reduce labor costs and speed up production.
- In addition, metal dome control panels offer customization. BEST Technology’s Designers can adjust dome spacing, size, and actuation force to match the needs of the device or user. This flexibility makes them suitable for a wide range of applications, from consumer electronics to industrial machines.
How Does a Metal Dome Switch Work?
A metal dome switch is simple yet highly effective. Each dome acts as a spring-loaded mechanism. Pressing the dome collapses it, creating a temporary electrical contact with the circuit below. This sends a signal to the device, confirming the user’s action.
When released, the dome snaps back to its original shape. This snap provides the tactile feedback that users feel as a click. The combination of tactile response and electrical connection ensures accurate, reliable operation.
The construction of the dome can vary. Some are coated with conductive material for better electrical performance. Others have noise-dampening layers to reduce sound while maintaining tactile feedback.
Metal dome switches can be used individually or in arrays. Whether deployed alone or in large panels, they maintain consistent actuation force. This consistency is key for applications that require precision and repeatability.
Because of their design, metal dome switches are resistant to mechanical wear. They remain reliable even under heavy use, making them ideal for both high-volume consumer products and industrial equipment.

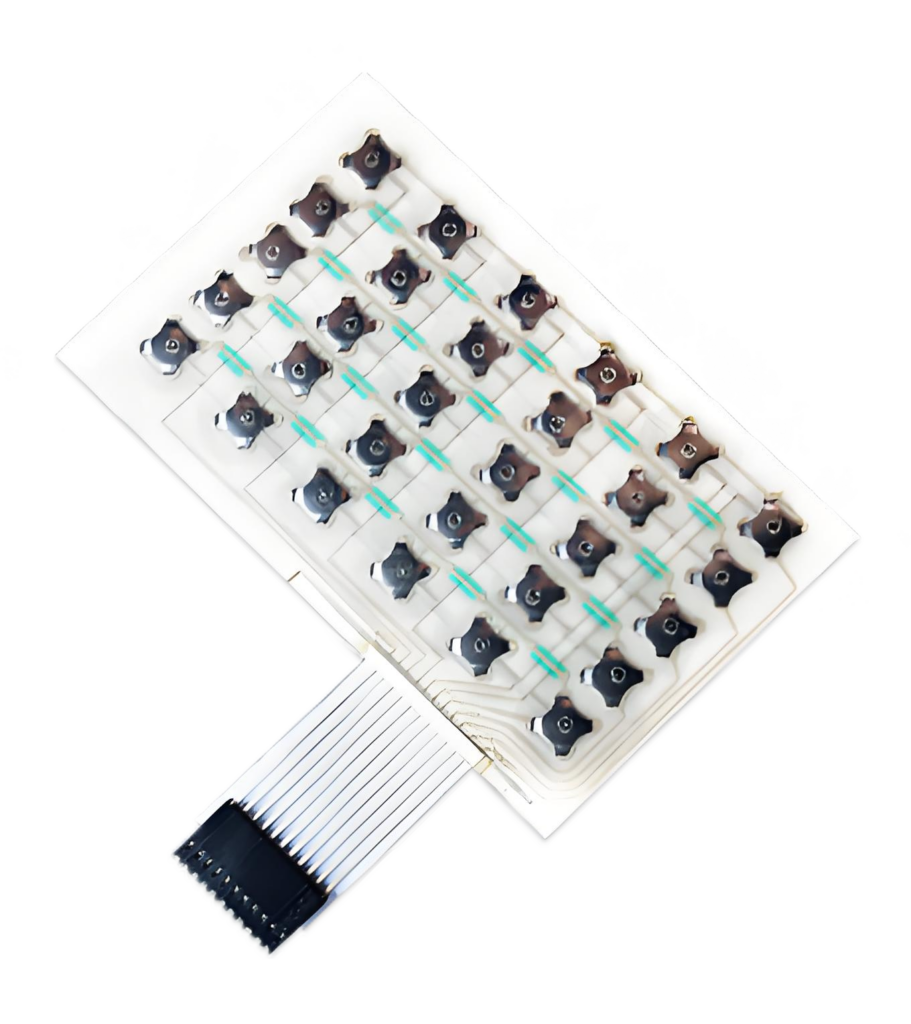

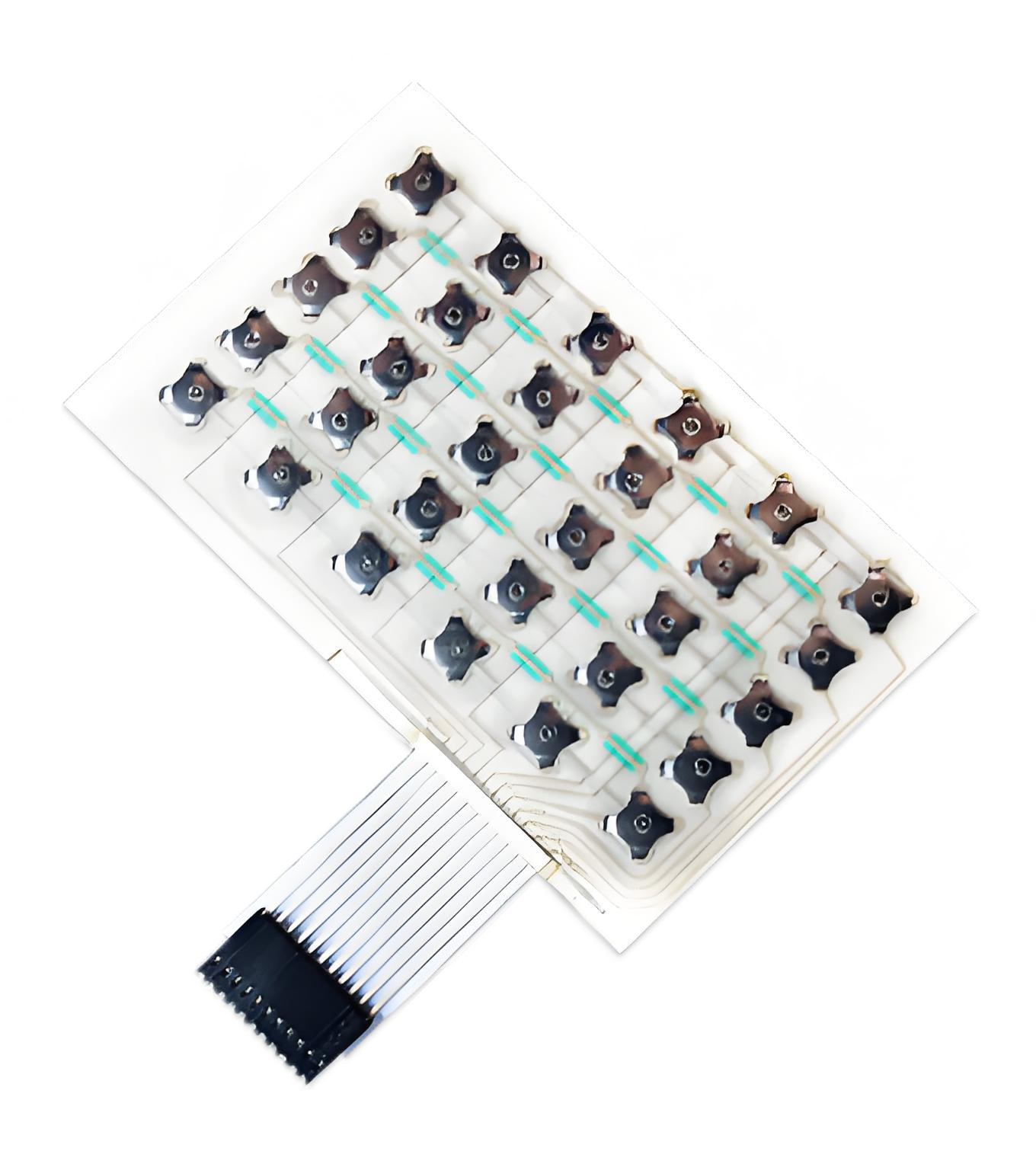

What Is a Metal Dome Array in Control Panel Design?

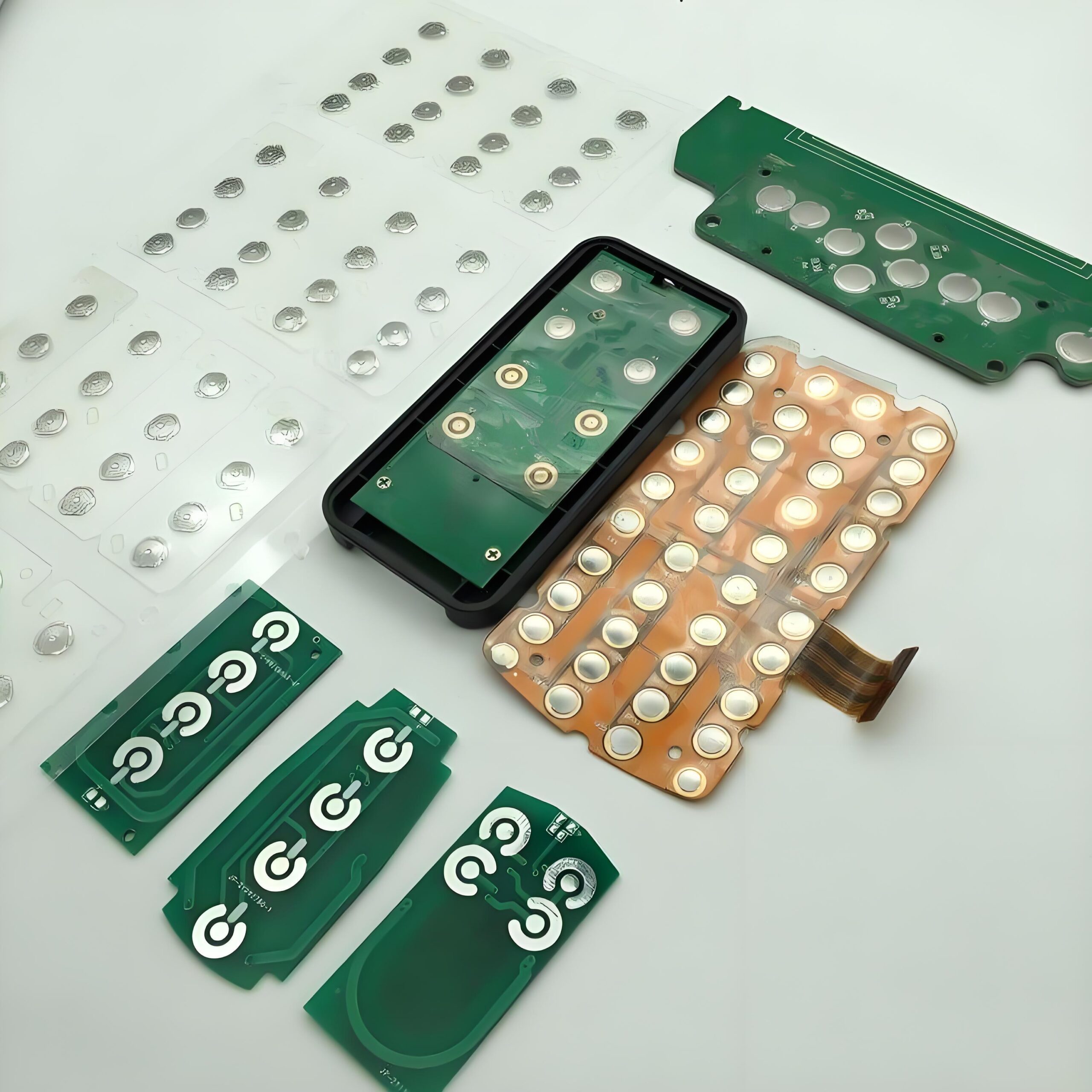

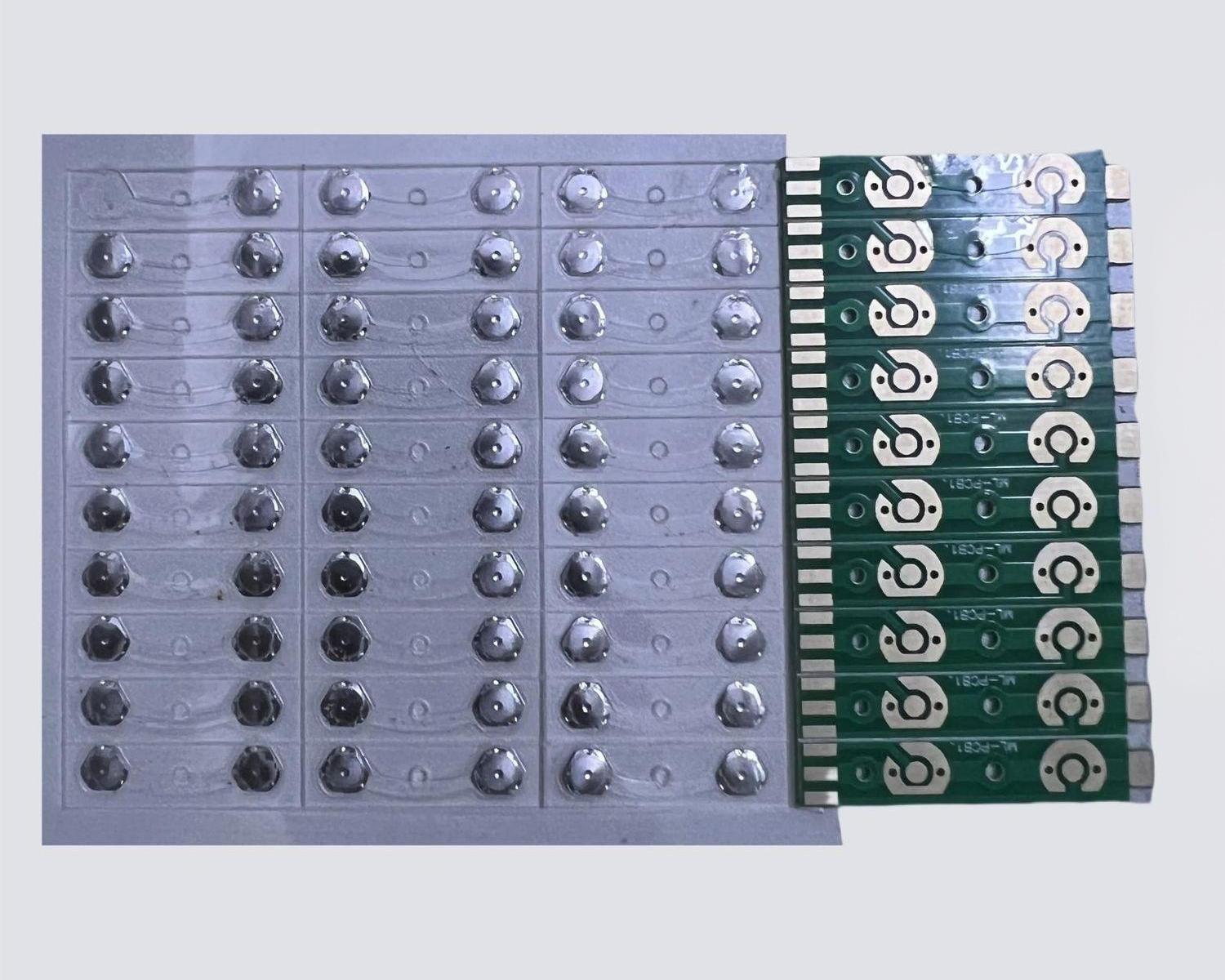

A metal dome array is a series of multiple domes arranged systematically on a control panel. Instead of using separate switches, BEST Technology’s designers place the domes in a grid or matrix.
Arrays are common in keyboards, industrial control panels, and medical devices. By integrating multiple domes on a single membrane, assembly complexity is reduced and consistent performance is maintained across all buttons.
The layout of the array can be customized. Designers can adjust dome spacing, size, and actuation force to meet specific requirements.
Arrays also improve durability. Since the domes are integrated into a single substrate, individual failures are less likely. Maintenance becomes easier, as replacing an entire array is faster than repairing individual switches.
By using arrays, it is possible to create compact panels suitable for modern equipment without sacrificing performance. This efficiency in design is one reason arrays are widely adopted across multiple industries.
How Does a Metal Dome Array Speed Up Assembly?
Metal dome arrays streamline production and reduce assembly time. Instead of placing individual switches one by one, manufacturers can install an entire array at once. This saves labor and minimizes human error.
Automation is easier with arrays. Rather than locating dozens of individual switches, the system can handle the complete array. This increases throughput, reduces costs, and ensures uniform placement.
Arrays also reduce wiring complexity. Multiple domes share a common substrate or circuit, decreasing the number of individual connections needed. Fewer connections mean fewer potential points of failure, improving reliability.
Where Are Snap Dome Switches Most Commonly Found?
Snap dome switches, also called tactile metal dome switches, are used across consumer, industrial, and professional devices. Their tactile response and reliability make them highly versatile.
They are found in keyboards, remote controls, calculators, and medical devices. In each case, the user benefits from the tactile feedback that confirms input without visual verification.
Automotive dashboards, infotainment systems, and HVAC controls also employ snap dome switches. These switches withstand frequent pressing while remaining reliable under vibration, temperature changes, and wear.
Industrial machinery uses snap domes in control panels for conveyor systems, robotic arms, and monitoring equipment. Their durability allows continuous operation in demanding environments.
Consumer electronics, from handheld tools to game controllers, rely on snap domes to provide solid, responsive buttons.
Why Are Metal Dome Control Panels Used in Industrial Equipment?
Industrial environments demand switches that are durable, precise, and reliable. Metal dome control panels meet all these requirements.
They resist dust, moisture, and mechanical wear, ensuring consistent operation. Operators appreciate the tactile feedback, which reduces input errors during critical processes.
Maintenance is simple. Entire panels can be replaced if necessary, reducing downtime and production interruptions. This efficiency saves time and money for manufacturers.
Ergonomic designs improve operator comfort and reduce fatigue. Minimal actuation force ensures that repeated use does not strain hands, which is important in fast-paced industrial settings.
Metal dome panels maintain consistent tactile response even under heavy use. This reliability ensures that industrial processes run smoothly, improving overall productivity and safety.
Which Industries Commonly Use Metal Dome Control Panels?
Metal dome control panels are versatile and widely adopted across industries.
- Consumer Electronics: Keyboards, remote controls, gaming controllers, and handheld devices use metal domes for tactile feedback and long-lasting performance.
- Automotive: Dashboards, infotainment systems, and climate controls benefit from snap dome switches that resist vibration and temperature fluctuations.
- Industrial Equipment: Conveyor belts, robotic machinery, and factory control panels use metal dome arrays for reliable, repetitive input.
- Medical Devices: Diagnostic and monitoring equipment rely on metal domes for precise, consistent operation, critical in healthcare environments.
- Aerospace and Defense: Aircraft consoles, simulators, and control panels demand switches that perform reliably under extreme conditions.
- Home Appliances: Washing machines, microwaves, and kitchen gadgets use metal dome control panels for intuitive operation and durability.
The flexibility, tactile feedback, and longevity of metal dome switches make them an ideal choice in any environment that demands precision and reliability.
Conclusion:
Metal domes for control panels provide reliable tactile feedback, long-lasting performance, and flexible design. They provide consistent performance, durability, and a satisfying click that enhances user experience.
Metal dome arrays simplify assembly, improve ergonomics, and reduce maintenance costs. They are used in consumer electronics, automotive systems, industrial equipment, medical devices, aerospace, and home appliances.
