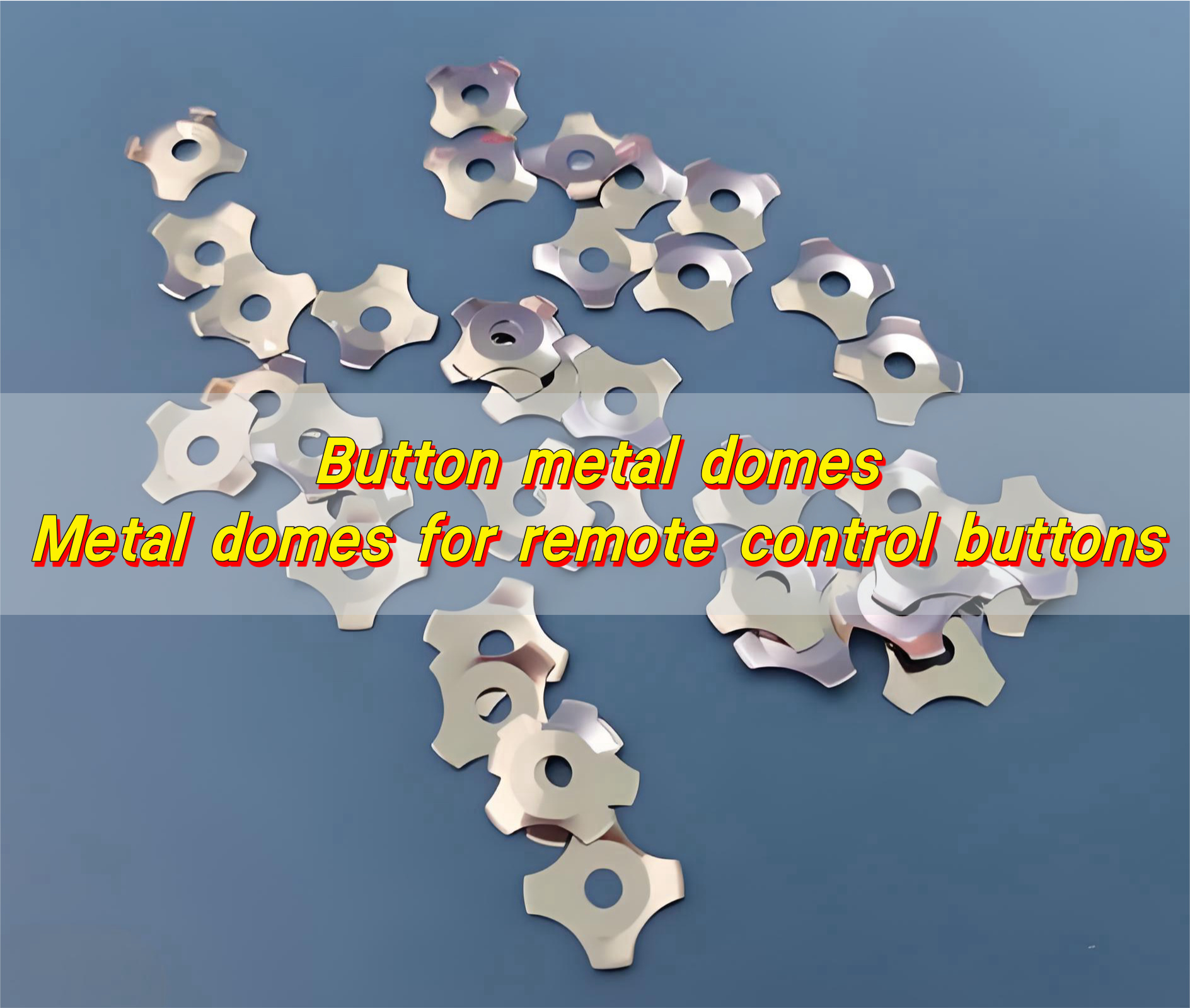

What is a Button Metal Dome?
A button metal dome is a small yet crucial component used in keypads and control panels to generate tactile feedback. It’s made from stainless steel or other conductive metals and forms the key part of a tactile dome switch system. When pressed, the dome flexes downward, creating a short circuit on the dome switch PCB, allowing current to flow. Once released, it will quickly return to its original shape with a crisp “click” sound.
Unlike a simple rubber button, a metal dome button gives both tactile and audible feedback. This is why you’ll find it in remote controls, medical devices, automotive dashboards, and industrial instruments.
How to Make a Metal Dome?
The process of manufacturing a button metal dome requires precision and control. Creating a button metal dome requires precision and care. The process combines advanced tooling, controlled environments, and strict inspection standards.
Here’s how a typical metal dome is made:
- Material Selection: BEST Technology use stainless steel sheets (usually SUS301 or SUS304) known for flexibility, fatigue resistance, and conductivity.
- Cutting and Forming: The steel is cut into small circles or custom shapes. Through mechanical stamping or photo-etching, the dome’s curvature is formed with micrometer accuracy.
- Polishing and Deburring: Any sharp edges are removed to avoid scratching the PCB and to improve long-term reliability.
- Surface Plating: To enhance performance, domes are often plated with gold, nickel, or silver. Gold domes resist oxidation best, while silver offers cost-effective conductivity.
- Testing: Actuation force?Travel distance?Resistance stability?Return elasticity
- Mounting on Conductive Film: Finally, domes are preassembled on conductive film stickers for easy application to PCBs and keypads.
Every stage matters. Even the smallest variation in dome curvature or material can change how the button feels and responds.
How Does a Dome Switch Button Work?
When the user presses the button, the dome collapses slightly, touching the contact points on the dome switch PCB. This completes an electrical circuit.
Here’s the basic process:
- The metal dome rests between the keypad and the PCB contact layer.
- When pressed, it collapses slightly and connects the contact points on the PCB.
- This closes the circuit, sending a signal to the device.
- When released, the dome snaps back, reopening the circuit.
This action produces:
- Electrical conduction — to register input
- Mechanical feedback — to confirm activation
Because stainless steel retains elasticity, metal dome switches remain accurate and responsive for years. Unlike rubber switches that can wear or soften over time, tactile dome switches maintain consistent performance even after millions of uses.
How Does a Dome Switch Button Create Click Feedback?
The distinct “click” sound of the tactile dome switch is a physical signal to the user that the operation was successful.
- When pressed: The dome’s curved structure stores mechanical energy. At a critical point, it collapses rapidly, producing both sound and tactile vibration. Once released, the dome springs back, restoring its original shape. This process creates a physical and auditory confirmation of input.
Different dome shapes create different feedback types:
- Round domes: Smooth and softer click
- Four-leg domes: Sharper, balanced feedback
- Triangle domes: Compact response for limited space
BEST Technology engineers fine-tune the dome’s thickness, diameter, and curvature for the perfect driving feel. That’s why remote controls, car keys, and medical devices each have slightly unique tactile signatures.
How to Select the Right Button Dome Force and Size?
Choosing the right button dome involves balancing several key factors: actuation force, diameter, height, and shape. Each parameter directly affects the tactile feeling and durability.
1. Actuation Force
Measured in grams-force (gf), actuation force determines how much pressure users feel when pressing the button.
- 150–200gf: Light force, suitable for handheld devices or remotes.
- 250–300gf: Medium force, ideal for control panels and keyboards.
- 350–500gf: Heavy force, used in automotive or industrial devices.
2. Dome Size
Size directly influences travel distance and tactile feel:
- 4–6mm domes: Short travel, fast response.
- 8–12mm domes: Deeper tactile feel, stronger feedback.
3. Shape Options
Each dome shape creates unique tactile behavior:
- Four-leg domes: Most common for dome switch keyboards and remote controls.
- Round domes: Used in tight spaces with even pressure distribution.
- Cross domes: For higher click ratios and centered force control.
4. Surface Coating
Surface plating matters too:
- Gold domes: Best corrosion resistance, excellent conductivity.
- Silver domes: Cost-effective with stable performance.
- Nickel domes: Balanced durability and price.
By testing multiple combinations, BEST Technology engineers can match user expectations with product designs.

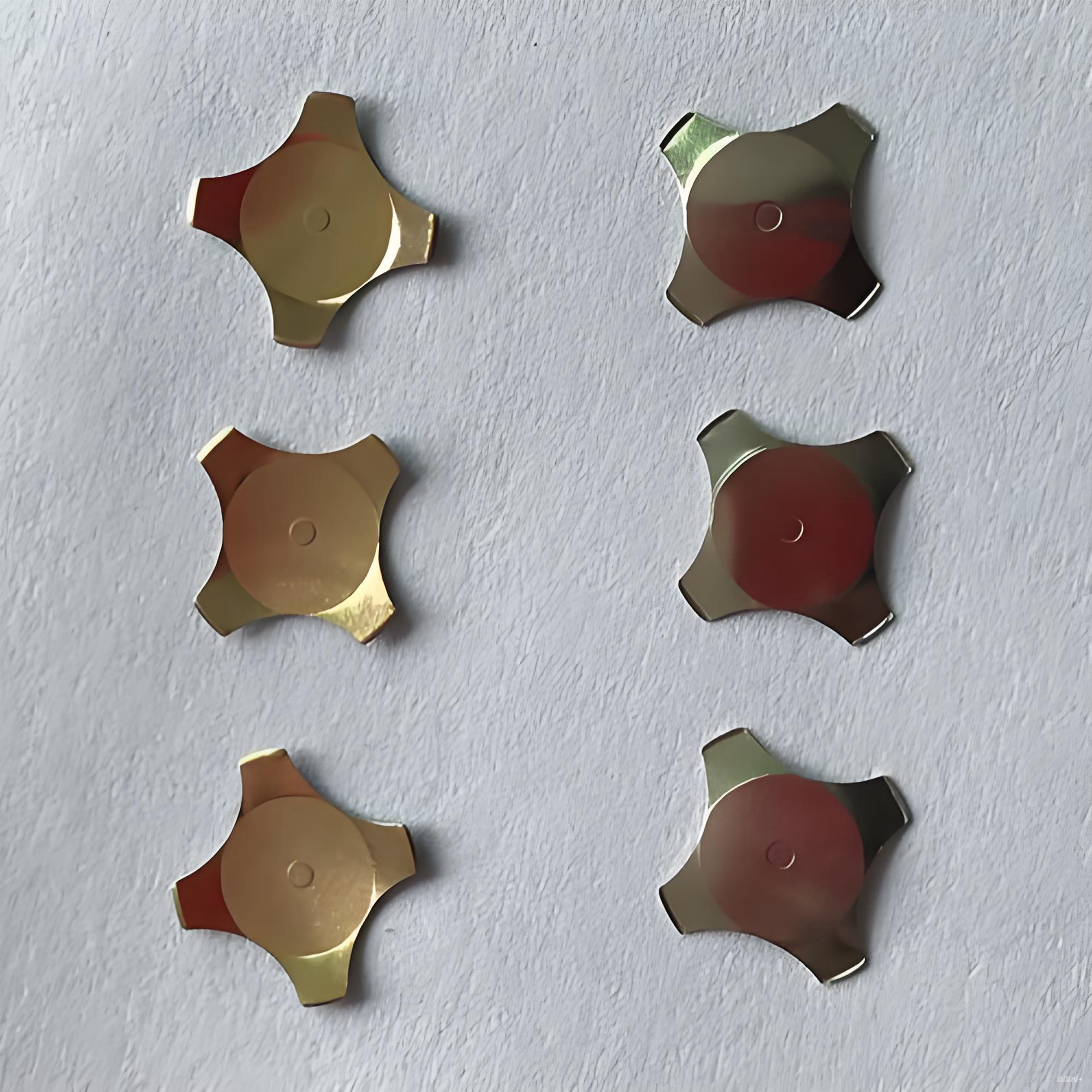

What Makes a Gold Metal Dome Button More Durable?
A gold metal dome button stands out for its exceptional longevity and stability. Gold’s chemical properties make it resistant to oxidation, moisture, and corrosion.
Here’s why gold domes last longer:
- High Conductivity: Gold maintains a clean electrical connection, even after millions of presses.
- Corrosion Resistance: It doesn’t react with moisture or air, ensuring signal consistency.
- Stable Surface Contact: Gold reduces resistance changes that can occur in low-voltage circuits.
- Fatigue Strength: Combined with stainless steel, it forms a structure that can endure constant flexing.
Gold domes are particularly useful in:
- Medical devices
- Aerospace systems
- Automotive dashboards
- High-end consumer electronics
Though more expensive, gold metal domes offer unmatched reliability and superior tactile performance under harsh environments.

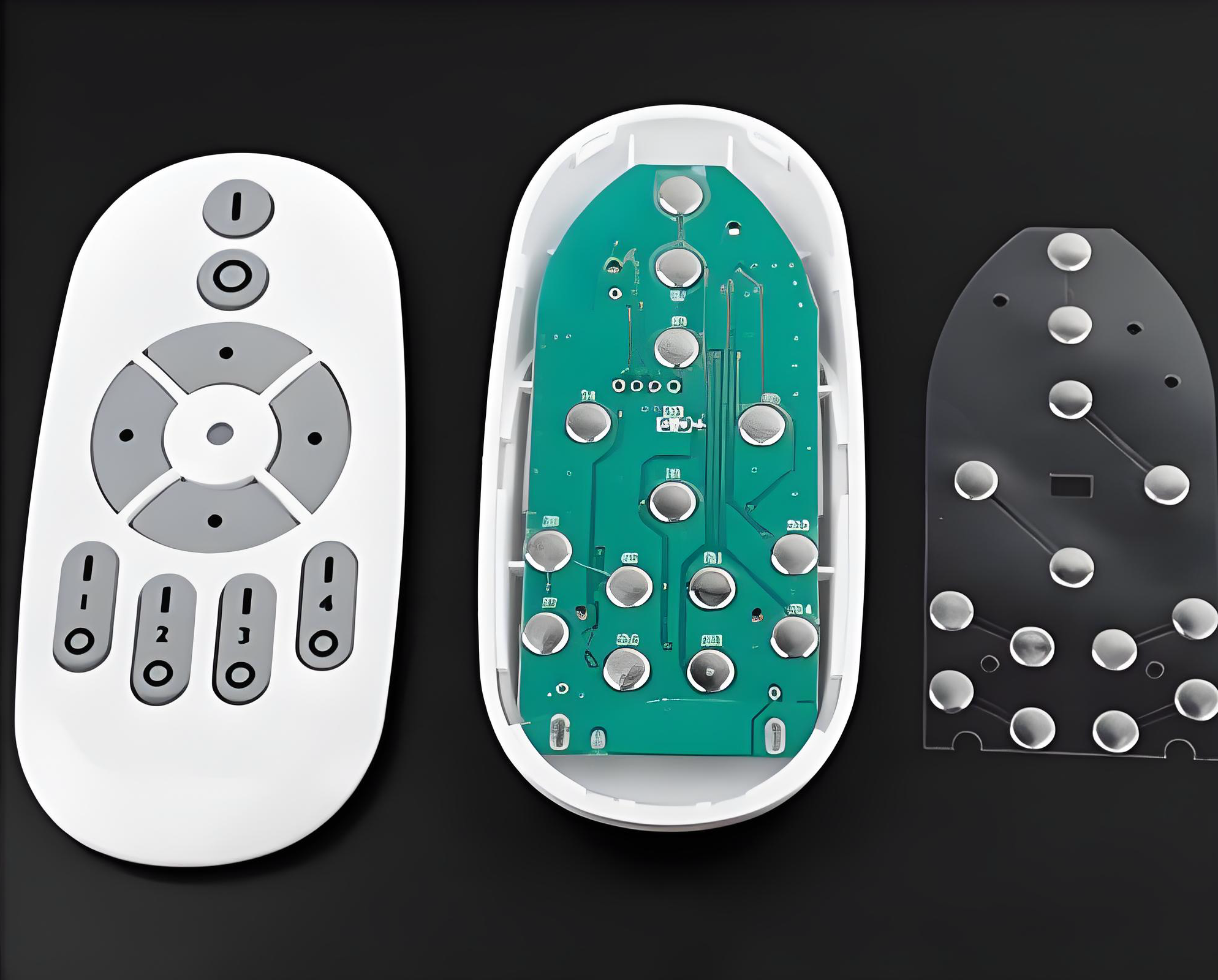

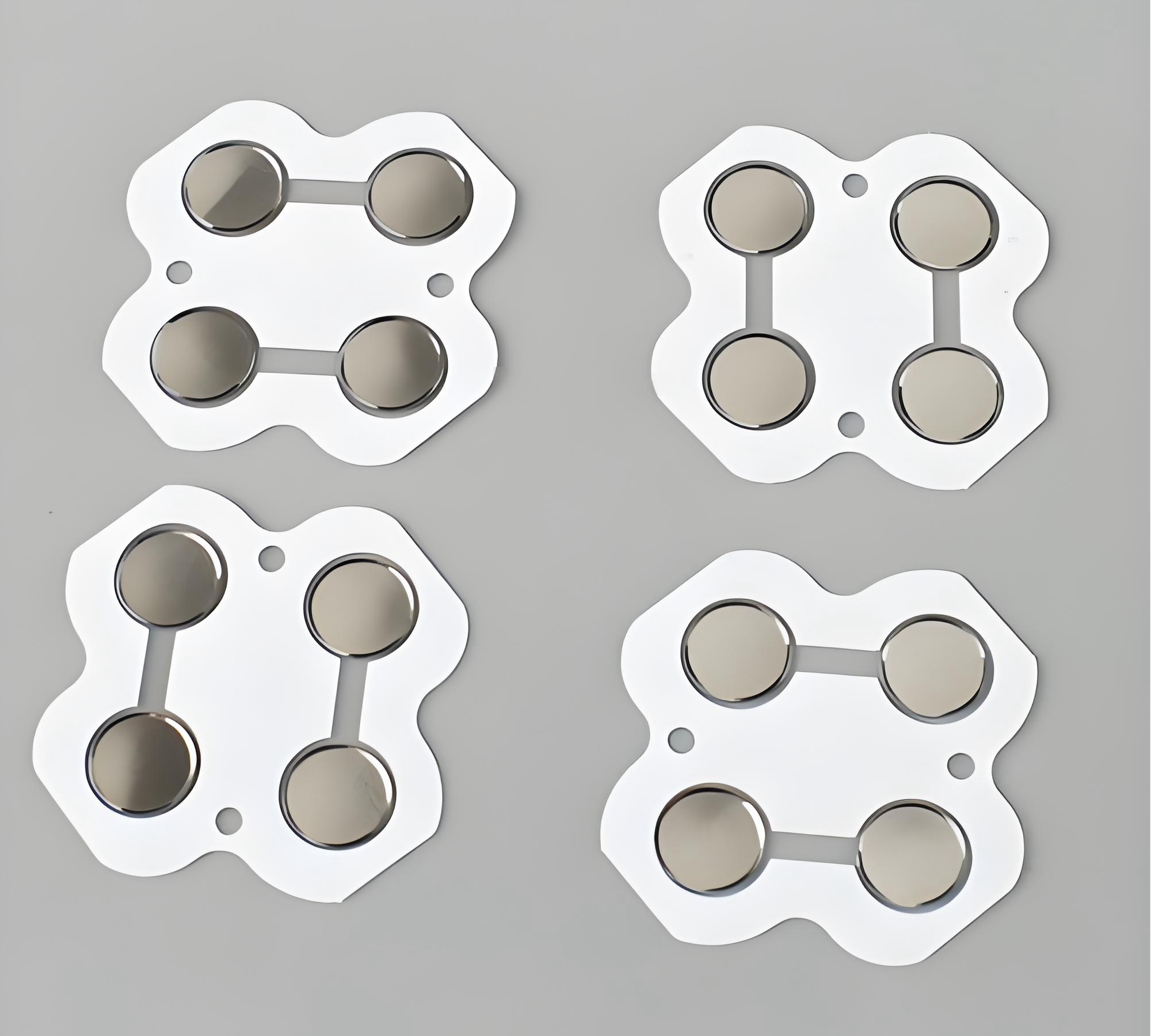

What is a Conductive Film Sticker Metal Dome Button?
A conductive film sticker metal dome button integrates metal domes within an adhesive PET film that’s mounted directly onto the PCB. This design simplifies production while ensuring perfect alignment.
Key components include:
- PET film layer: Flexible, durable, and insulating.
- Metal dome array: Positioned precisely above the contact points.
- Adhesive backing: Keeps domes in place during assembly.
- Contact window: Allows dome travel and electrical connection.
Advantages:
- Easy to apply on PCB surfaces
- Prevents dust and moisture intrusion
- Maintains dome alignment and spacing
- Simplifies assembly and repair
The conductive film can also be customized with printed circuit traces, allowing flexible layout options for complex keypad designs.
How Long Can a High-Quality Metal Dome Button Last?
A premium metal dome button is built for longevity. Depending on its design and use conditions, it can last between 1 million and 10 million cycles, or even more.
Key factors that affect durability include:
- Material quality: SUS301 and SUS304 steel offer excellent fatigue resistance.
- Plating type: Gold or silver coatings resist corrosion and wear.
- Actuation design: Proper dome curvature distributes stress evenly.
- Operating environment: Dust, humidity, and temperature extremes can affect lifespan.
In well-sealed assemblies, metal domes stay reliable across wide temperature ranges: From -40°C up to +125°C, Compared with rubber domes, which degrade faster, metal dome buttons keep their elasticity and sharp feedback far longer. Their ability to endure millions of operations makes them perfect for mission-critical applications.
Why Are Dome Switch Buttons Widely Used in Medical and Automotive Products?
The medical and automotive sectors both demand absolute reliability, and dome switch buttons meet that standard. Because they:
- Deliver instant tactile confirmation for every press
- Resist frequent disinfection and chemical cleaning
- Maintain precise actuation force over years of use
- When lives depend on equipment accuracy, the dependable feedback of a metal dome push button makes a difference.
Conclusion:
Button metal domes deliver a consistent tactile feel that users trust, from remote controls to medical devices and automotive systems. Whether you need gold metal domes for precision or silver domes for cost-effective performance, the design flexibility and tactile quality remain the same.
