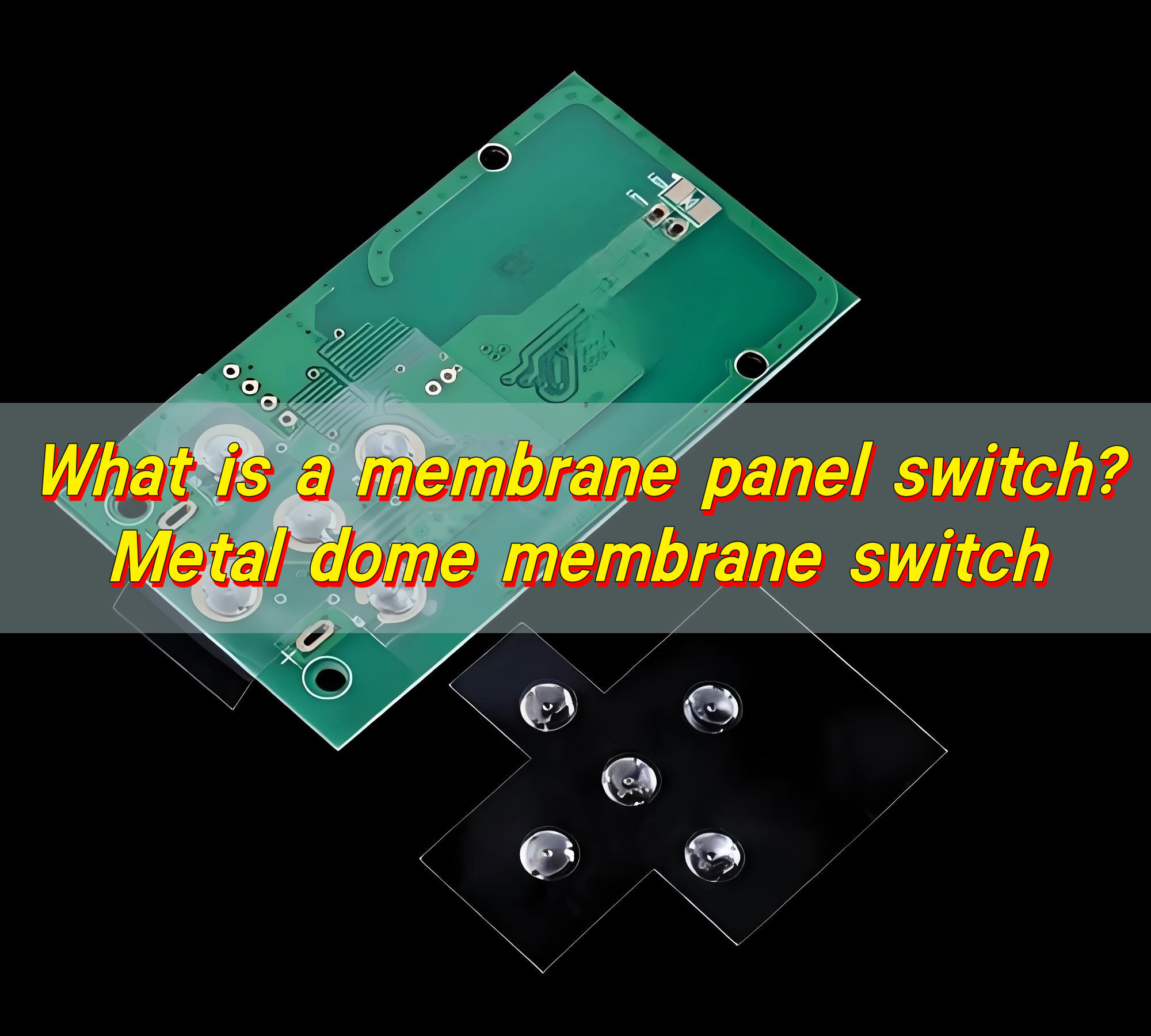

What is a membrane switch panel and how does it work?
A membrane switch panel is a low-profile, electrically actuated interface that integrates printed circuitry, graphic overlays, and tactile elements into a sealed control surface. Unlike traditional mechanical switches that rely on discrete moving parts, this design uses flexible layers to register user input with precision and consistency. The result is a compact, highly reliable interface widely used in industrial controls, medical devices, and consumer electronics.
At its core, the structure is multilayered, with each layer serving a distinct function in both electrical performance and user interaction. A typical membrane switch panel includes:
- A graphic overlay (the visible top layer with printed icons and labels)
- A spacer layer that creates separation between contacts
- A circuit layer (usually printed with conductive ink such as silver or carbon)
- A tactile layer (commonly a metal dome or dome array)
- A backing adhesive or rigid support
When a user presses a key area, the top layer flexes downward. This movement brings conductive traces into contact through the spacer opening, completing an electrical circuit. In a metal dome membrane switch, the dome collapses under pressure, providing a crisp tactile response, and then returns to its original shape when released.
This structure is both efficient and dependable. Because the switching action occurs within a sealed system, it resists contaminants such as dust, moisture, and oils. At the same time, it allows designers to create clean, intuitive layouts without the limitations of mechanical assemblies.
From a manufacturing perspective, companies like EBest Circuit (Best Technology) have refined this process into a highly controlled system. Our expertise in printed circuits and metal dome integration ensures consistent actuation force, stable electrical contact, and long-term reliability.
What are the advantages of dome array membrane switch panel?

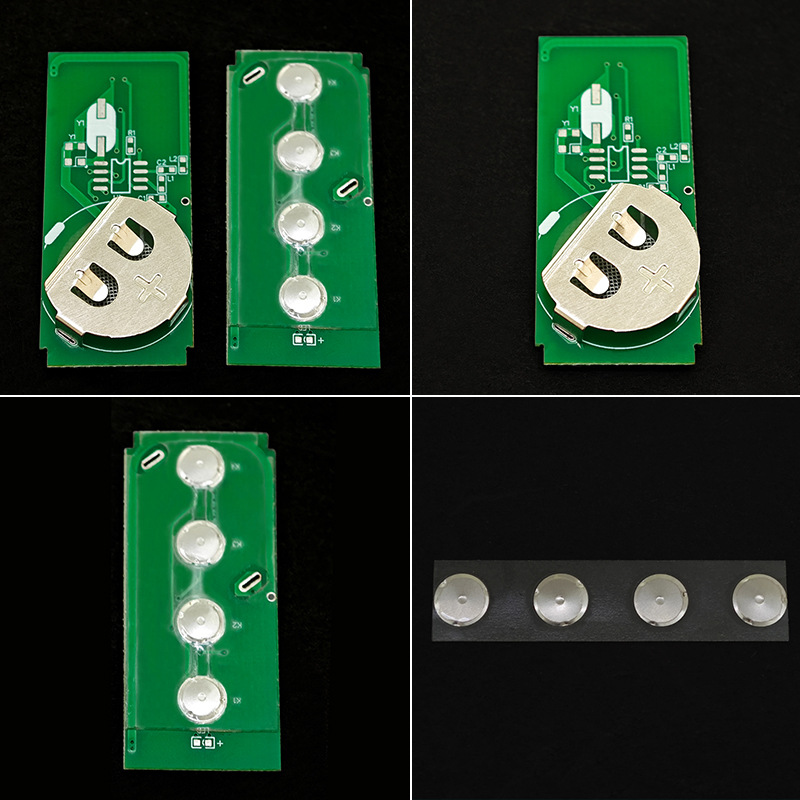

A dome array membrane switch panel uses a pre-arranged set of metal domes mounted on a carrier film. This configuration improves both assembly efficiency and overall performance, making it ideal for high-volume and high-reliability applications.
The advantages extend beyond tactile feedback. A dome array enhances the responsiveness and scalability of the entire interface.
Key benefits include:
- Consistent tactile response
Each dome is manufactured within tight tolerances, ensuring uniform actuation force across the panel. This consistency improves user confidence and reduces input errors. - Faster assembly process
Dome arrays eliminate the need for manual placement of individual domes, significantly increasing production speed and reducing labor requirements. - Accurate alignment
Pre-positioned domes maintain precise spacing relative to circuit contacts, minimizing misalignment and improving electrical reliability. - Enhanced durability
High-quality dome arrays can withstand over one million actuations without performance degradation, making them suitable for demanding applications. - Simplified design integration
Engineers can implement complex key layouts without increasing assembly complexity, enabling more advanced control panel designs.
For manufacturers like EBest Circuit (Best Technology), dome array integration represents both a production and performance advantage. Our ability to maintain ±0.05 mm contact accuracy ensures dependable operation, even in compact designs.
In high-speed manufacturing environments, tape-and-reel packaged dome arrays further improve efficiency. Automated systems can place domes at extremely high speeds, reducing lead times while maintaining precision.

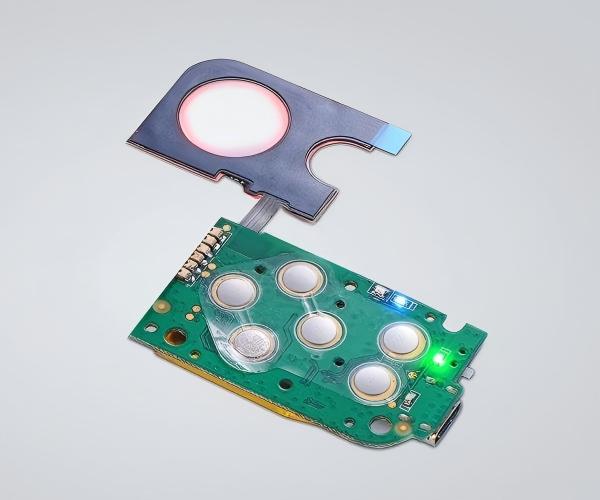

How does metal dome array improve membrane switch performance?
Integrating a metal dome array significantly enhances the performance of a membrane switch panel. While basic membrane switches rely solely on conductive contact, metal domes introduce a mechanical element that improves tactile feedback, electrical stability, and user experience.
A metal dome functions as a spring-loaded contact. When pressed, it collapses with a distinct snap, providing clear tactile confirmation. Once released, it quickly returns to its original shape, resetting the switch.
This mechanism delivers several advantages:
First, it offers tactile certainty. Users can clearly feel when a switch has been activated, which is especially important in environments where visual confirmation is limited.
Second, it improves electrical reliability. The dome ensures consistent contact force between conductive layers, reducing resistance variation and maintaining stable signal transmission.
Third, it enhances lifespan performance. High-quality metal domes are engineered to endure repeated use without losing elasticity, often exceeding one million actuations.
Additional performance improvements include:
- Faster response due to immediate feedback
- Reduced operator fatigue through optimized actuation force
- Lower failure rates from stable contact pressure
- Improved accuracy in critical input applications
EBest Circuit (Best Technology) specializes in precise integration of metal dome arrays, offering various dome shapes—such as four-leg, triangle, and round designs—to meet specific tactile and electrical requirements.

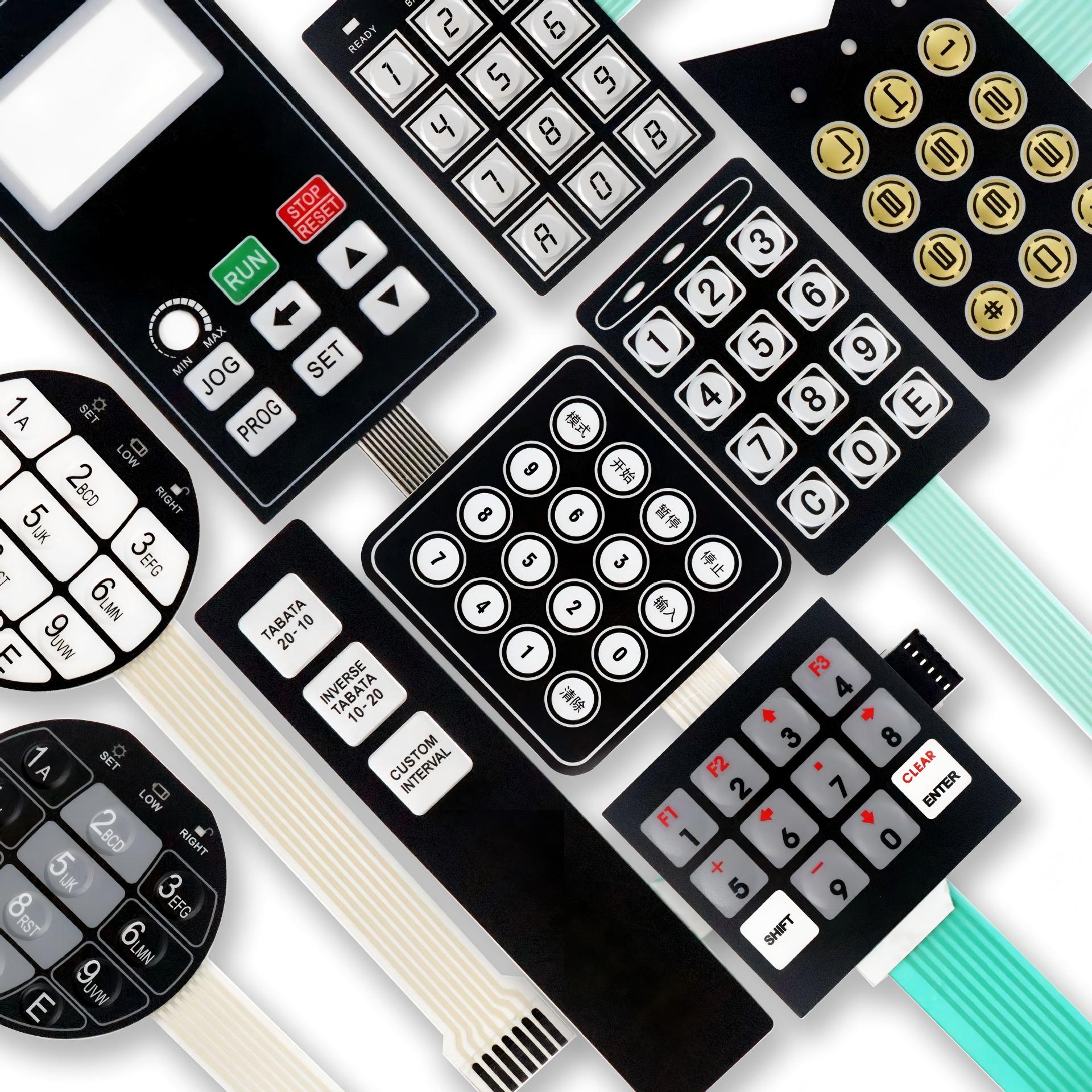

What applications use membrane control switch panel the most?
Membrane control switch panels are widely used across industries due to their durability, sealed construction, and flexible design capabilities.
They are commonly found in:
- Industrial equipment
Used in machinery and automation systems where resistance to dust, oil, and vibration is essential. - Medical devices
Ideal for diagnostic equipment and monitoring systems that require hygienic, easy-to-clean interfaces. - Consumer electronics
Frequently used in appliances and control interfaces for their sleek appearance and reliability. - Automotive systems
Applied in dashboards and control units that must withstand temperature fluctuations and continuous use. - Telecommunications equipment
Utilized in network and communication devices requiring stable and durable input systems.
In each of these fields, membrane switch panels provide a balance of performance, durability, and design flexibility. EBest Circuit (Best Technology) supports these industries with customized solutions tailored to specific application requirements.
What is the difference between membrane switch panel and regular buttons?
Although both serve as input devices, membrane switch panels and traditional mechanical buttons differ significantly in structure and performance. A membrane switch panel uses a flexible, layered design, while regular buttons rely on individual mechanical components.
Here is a clear comparison:
| Feature | Membrane Switch Panel | Regular Mechanical Buttons |
|---|---|---|
| Structure | Multi-layer flexible design | Individual mechanical parts |
| Thickness | Thin and compact | Bulkier due to housing |
| Sealing | Fully sealed | Often exposed |
| Tactile Feedback | Metal dome or embossing | Mechanical spring action |
| Customization | Highly customizable | Limited |
| Maintenance | Low maintenance | May require servicing |
| Lifespan | Long lifespan | Varies with wear |
Membrane switch panels are ideal for applications requiring compact design and environmental protection, while mechanical buttons are typically used where strong tactile feedback is the primary concern.
How durable is a standard metal dome membrane switch panel?
A metal dome membrane switch panel is designed for long-term durability, even in demanding environments. Its performance depends on material quality, dome construction, and manufacturing precision.
A high-quality panel typically offers:
- Over 1,000,000 actuation cycles
- Stable tactile response throughout its lifespan
- Resistance to humidity and temperature changes
- Minimal wear due to the absence of sliding parts
Metal domes are central to this durability. Their elastic properties allow repeated deformation and recovery without significant degradation. Protective coatings such as nickel or gold further enhance corrosion resistance and conductivity.
EBest Circuit (Best Technology) ensures durability through strict quality control and advanced manufacturing processes, delivering reliable performance for critical applications.
What material options are available for custom membrane panel switch?
Material selection is essential in customizing a membrane panel switch, affecting both performance and appearance.
Common options include:
- Graphic overlays
- Polyester (PET): excellent durability and chemical resistance
- Polycarbonate (PC): good clarity and cost-effective
- Circuit layers
- Silver ink: high conductivity
- Carbon ink: improved wear resistance
- Adhesives
- Acrylic adhesives for strong bonding
- Pressure-sensitive adhesives for flexible assembly
- Tactile components
- Stainless steel domes for durability
- Custom dome shapes for specific feedback
These materials can be combined to meet specific environmental, mechanical, and aesthetic requirements. EBest Circuit (Best Technology) offers tailored solutions to balance cost, durability, and performance.
Are membrane switch panels waterproof and dustproof for industrial use?
Membrane switch panels are well suited for environments requiring protection against dust and moisture. Their sealed design helps prevent contamination and ensures reliable operation.
Key protective features include:
- Sealed edges and strong adhesive bonding
- Non-porous overlay materials
- Additional sealing layers or gaskets
- Chemical-resistant coatings
While not all panels are inherently waterproof, they can be engineered to meet high protection standards. For industrial applications, enhanced sealing ensures reliable performance even in harsh conditions.
EBest Circuit (Best Technology) provides solutions designed for demanding environments, including panels that resist moisture, dust, and chemical exposure.
Summary:
A membrane switch panel is a reliable and versatile interface solution that combines compact design, durability, and customization. The integration of metal dome arrays enhances tactile feedback, electrical stability, and lifespan, making these panels suitable for a wide range of applications.
From industrial equipment to medical devices, membrane control switch panels provide consistent and dependable performance. With advanced manufacturing expertise, EBest Circuit (Best Technology) delivers customized solutions that meet modern engineering demands.
