A normally closed switch is a switch that remains closed when no external force is applied, allowing the circuit to conduct. When the trigger condition occurs, the switch opens and cuts off the circuit. Typical application scenarios include safety switches and emergency stop buttons, which need to be manually reset after the external force disappears.

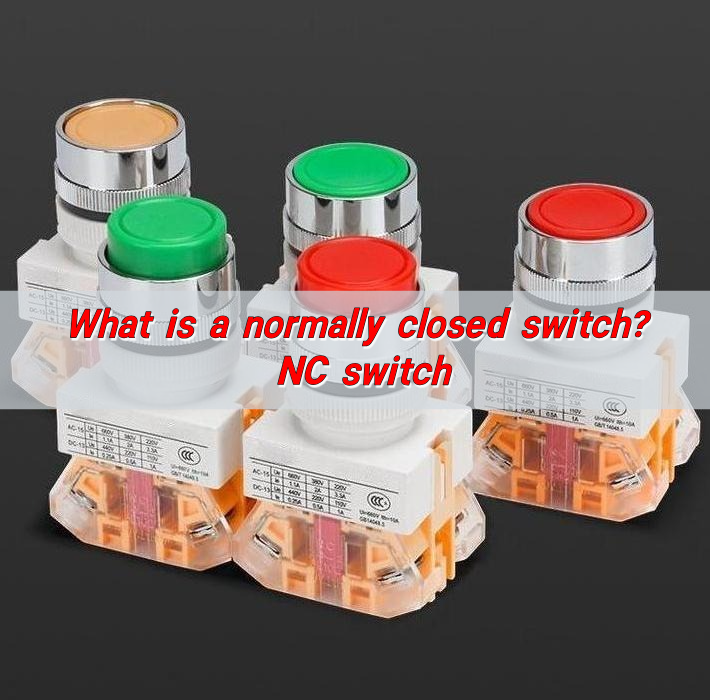

What does normally closed switch mean?
A normally closed switch—often shortened as NC—is a type of switch that allows current to flow through it in its default state. In simpler terms, it’s “on” by default. When the switch is not being pressed or activated, the electrical circuit remains complete, and current flows through it. Once it is activated—such as when you press a button—the circuit opens, and current flow stops.
This is the opposite of a normally open switch, which stays “off” until it’s pressed or triggered.
This normally closed switch meaning is essential for systems that must stay active until someone deliberately interrupts them—like emergency stops, alarms, and safety controls.

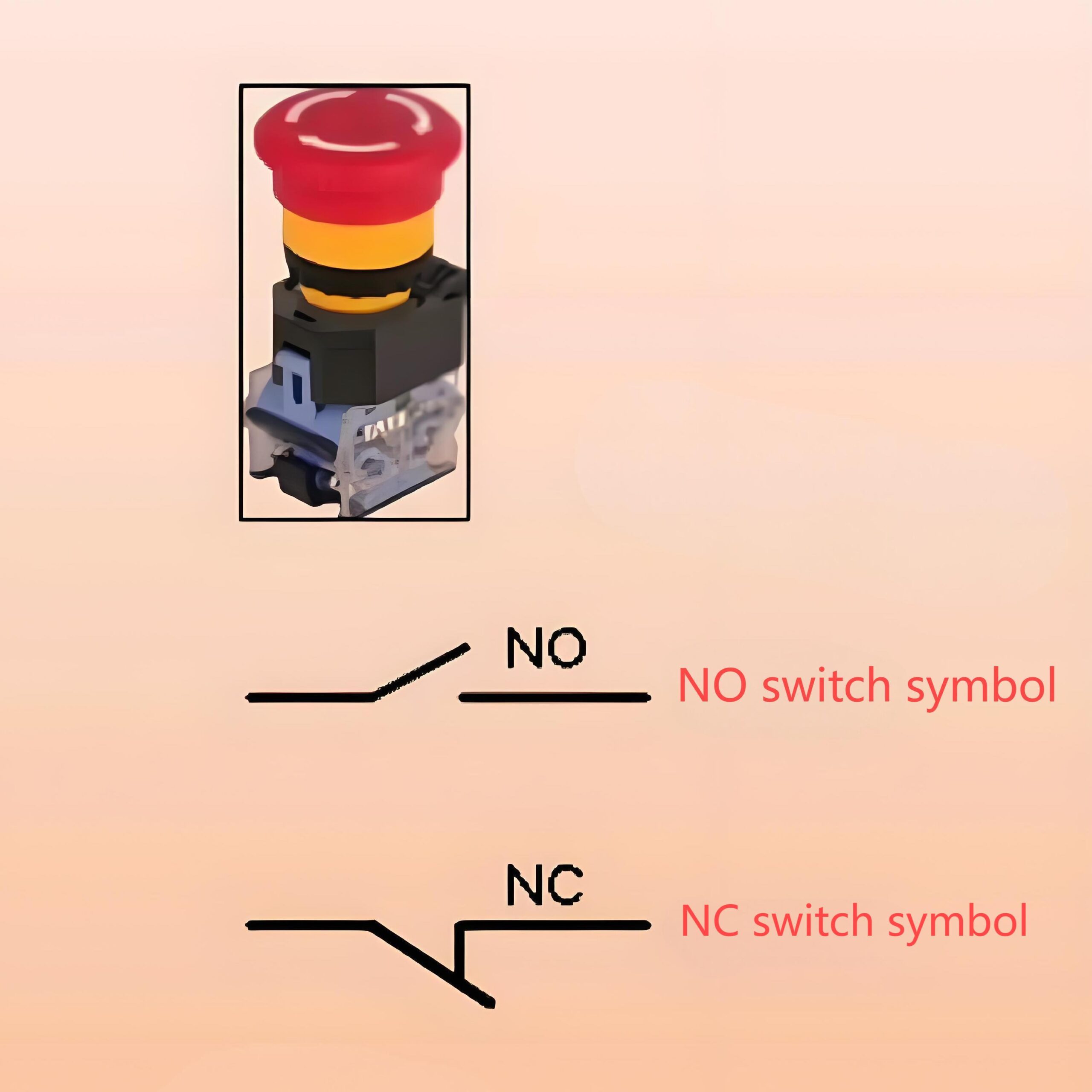

What is the symbol of a normally closed switch?
Reading circuit diagrams requires recognizing certain symbols. It’s typically drawn as two connecting lines with a diagonal slash through them. This slash represents the break that occurs when the switch is activated.
So, when you see a slash across closed contacts, you’re looking at an NC switch. If there’s no slash, it’s a normally open (NO) switch.
What does a normally closed switch do?
The main function of a normally closed switch is to keep the circuit closed and allow current to flow—until it’s pressed or activated. Once triggered, the circuit opens and the current stops. This simple action controls machines, signals, or lighting systems.
The normally closed switch in the unoperated condition is “closed”—meaning current flows freely. This state is ideal for safety devices where losing power or opening the circuit is a deliberate action.
In real life, it’s used to halt production lines when something goes wrong, or instantly stop motors to avoid damage.
Are there different types of normally closed switches?
Yes, and that’s part of what makes them so versatile.
- Push Button: A normally closed switch push button is common in machinery. Press it, and the circuit cuts off instantly.
- Momentary: A momentary normally closed switch only opens the circuit while it’s pressed. Let go, and it returns to the closed state.
- Snap Dome: Used in membrane switches or control panels, these offer tactile feedback.
- Toggle: These maintain their position until switched again.
The normally closed switch button comes in countless shapes and forms, depending on where and how it’s used.
How does a normally closed switch work?
Internally, it has two contact points touching by default. Electricity flows from one to the other without interruption. When you press the switch, those contact points separate, breaking the path.
In its unoperated condition, it stays closed. The moment it’s activated, it opens.
This normally closed switch function is why it’s found in systems where power must be available until stopped by an external force or decision.
For example, a safety machine guard might use an NC switch to shut down the machine the second the guard is removed.
How to test a normally closed switch?
- Power Off the Circuit – Always ensure safety first.
- Use a Multimeter – Set it to continuity or ohms.
- Test the Terminals – Place the probes on the switch terminals.
- Read the Result – If the circuit is closed (as it should be in an NC switch), you’ll hear a beep or see low resistance.
- Press the Switch – Now, the circuit should open. The meter should show no continuity or high resistance.
What is the difference between NC and NO switch?
The core difference between normally open and normally closed switch types is their default state.
- NC Switch: Circuit is closed by default. Power flows until the switch is activated.
- NO Switch: Circuit is open by default. Power flows only when the switch is activated.
Their use depends on the need. NC is better for safety applications. NO works well for user-activated features like lights or buzzers.
Do normally closed switches have a long lifespan?
Absolutely—especially when well-designed. Quality materials, proper usage, and regular maintenance extend the life of any switch.
In fact, many normally closed switches are built to last millions of cycles. Metal dome switches, in particular, are known for their longevity and crisp tactile response.
Using a normally closed push button switch made with durable contacts ensures consistent performance even in high-use environments.
Of course, exposure to dirt, moisture, or overvoltage can reduce lifespan. But in general, these switches are reliable and built to endure.
What are the common applications of normally closed switches?
The list is long. Here are just a few areas where normally closed switches shine:
- Emergency Stops – When safety is the priority, these switches cut off power immediately.
- Industrial Machines – Stops machinery when covers or guards are moved.
- Elevators – Stops doors from closing if the safety beam is interrupted.
- Medical Equipment – Ensures constant power until intervention.
- Security Systems – Alarms activate when circuits break.
- Control Panels – Offers real-time control and immediate response.
When it comes to closed switch meaning, just remember: closed = current flowing. It means on. The switch is allowing electricity to pass through.
Conclusion:
The normally closed switch may seem simple, but its importance is enormous. In its unoperated condition, it allows energy to flow—until you choose to stop it.
